B. Mounting Linear Compensator & UHI Control Module to Bracket

B. Mounting the linear compensator and UHI control module to the bracket

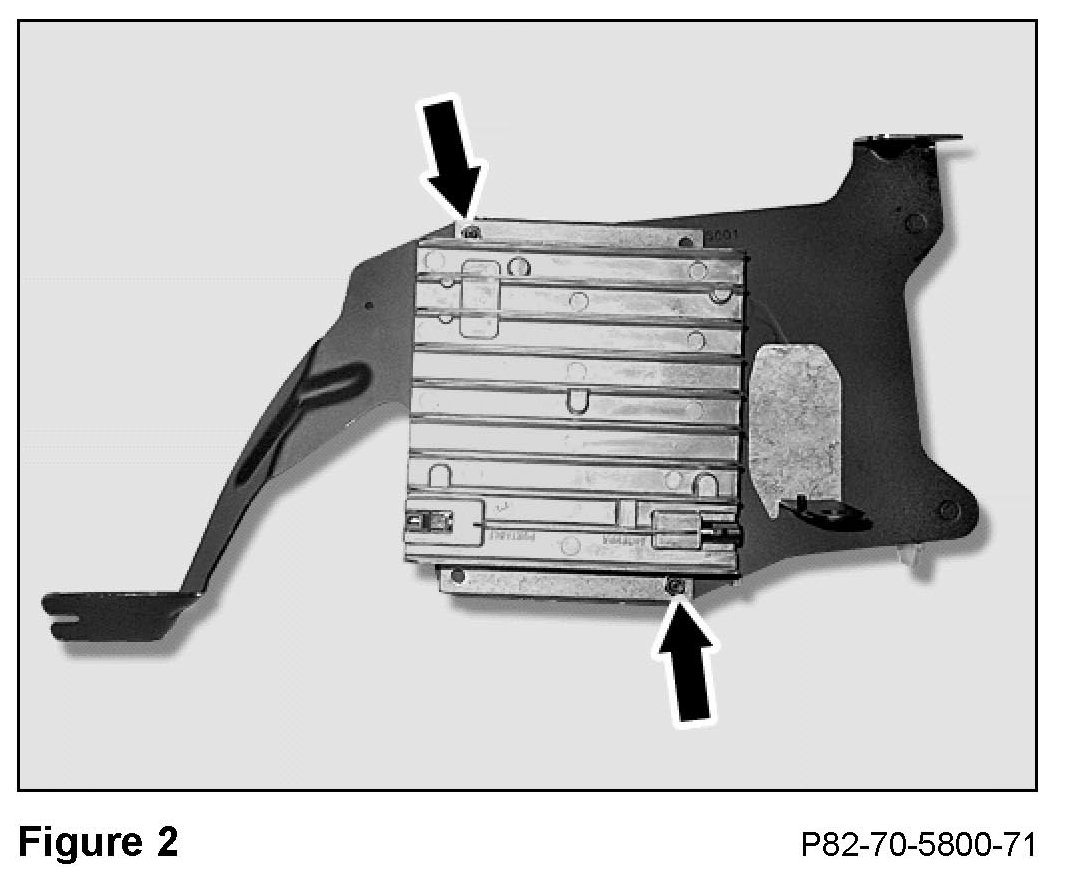

1. Mount the linear compensator to the front side of the bracket with two M5 screws and nuts (Figure 2).

Note:
Position the linear compensator with the connector receptacles facing the direction of the bracket long mounting arm (Figure 2).

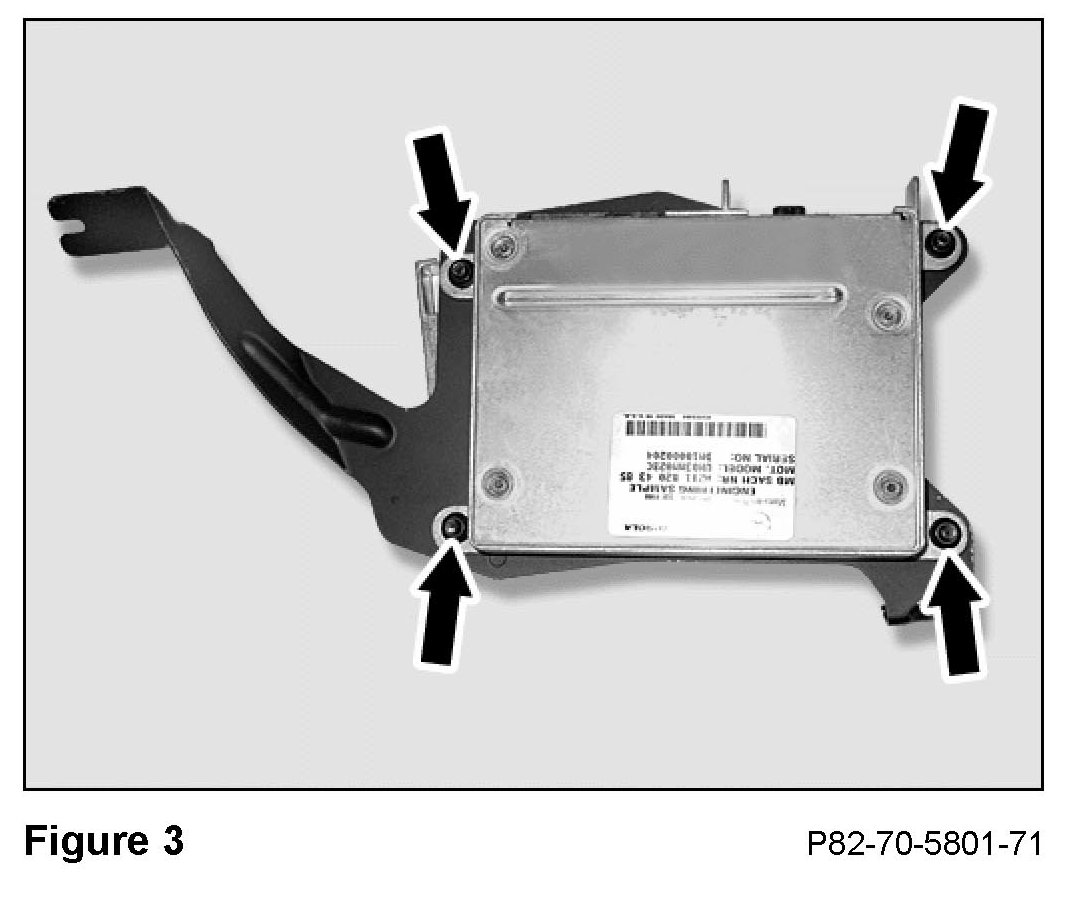

2. Mount the UHI control module to the threaded studs on the backside of the bracket with four M5 10 mm nuts (Figure 3).

Note:
The keyed threaded studs fit the UHI control module only one way (i.e. it is not possible to incorrectly mount the UHI control module to the bracket).
