A. Installation Preparation

A. Installation preparation

1. Read these installation instructions in their entirety before proceeding.

2. Install the following relays and fuses if not present:

^ N10/1kP relay in the front SAM (N10/1)

^ N10/2kF relay in the rear SAM (N10/2)

^ N10/1f44, 5-amp fuse in the front SAM (N10/1)

^ N10/2f13, 5-amp fuse in the rear SAM (N10/2)

^ F34f40, 7.5-amp fuse in the interior fuse box (F34)

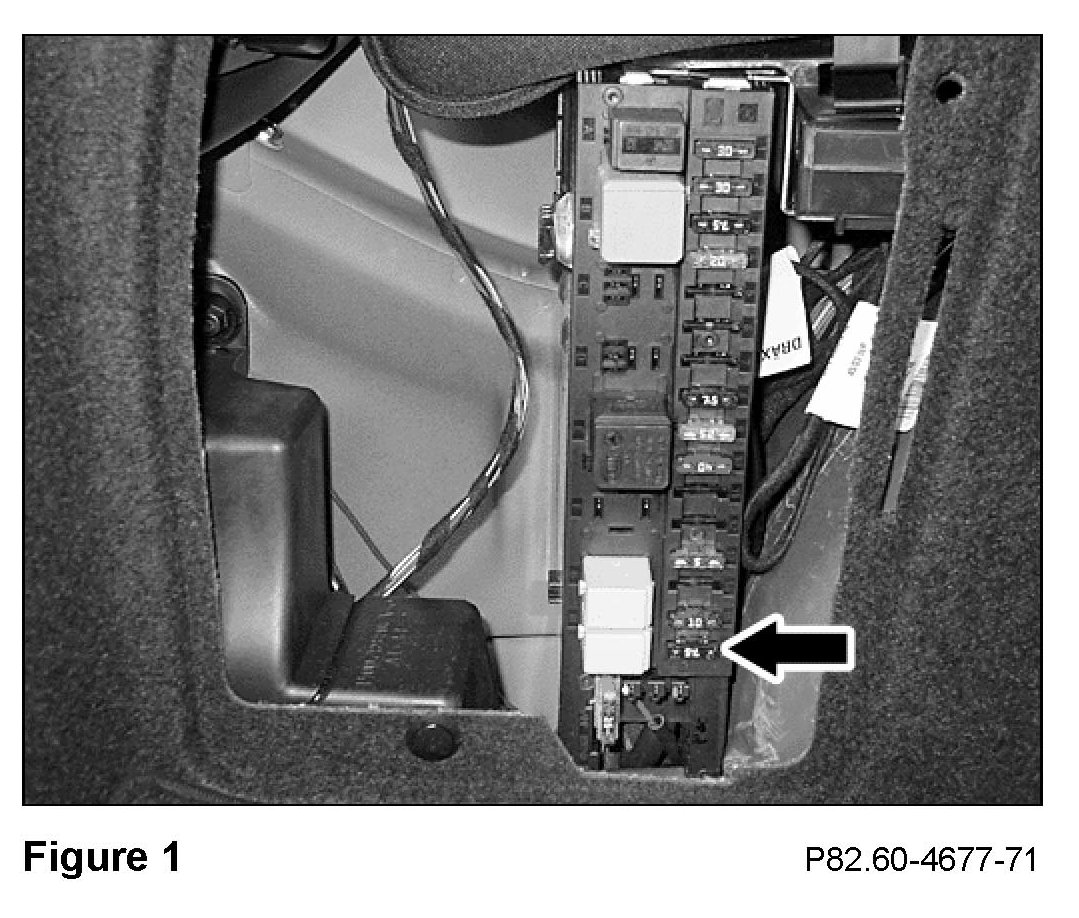

3. Insert the kit-included 7.5 amp fuse in slot # 16 (Figure 1) of the rear SAM control module with fuse and relay module (N10/2) on the left side in the cargo compartment.

4. Unpack and compare the installation kit contents against the Parts Information list - Section N, end of this bulletin.

5. Place the operating guides and customer accessories in the glove box or appropriate storage or stowage compartment.

6. Expose the transmission tunnel area by pulling back the passenger side floor covering where it runs under the center console.

7. In the cargo compartment, remove the floor paneling, passenger side paneling, and plastic cover over the electronics compartment behind the rear seat.

^ See WIS document AR68.30-P-4600PB, Remove/Install paneling in trunk"
