AR68.10-P-1150PA Remove/Install Defroster Nozzles For Windshield

AR68.10-P-1150PA Remove/Install Defroster Nozzles For Windshield

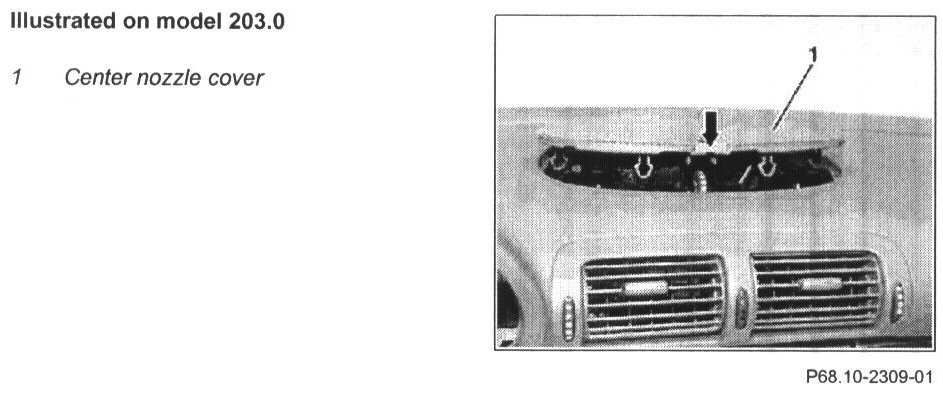

Illustrated On Model 203.0:

1 Unclip center nozzle (1) cover and remove
2 Disconnect cockpit warning display PTS connector (X35/27)
3 Disconnect cockpit/FSS connector (X18/35)
4 Unscrew screws (2)
5 Remove center nozzle
6 Install in the reverse order
