AR91.10-P-1200P Remove/Install Front Seat Frame Trim Panels



AR91.10-P-1200P Remove/Install Front Seat Frame Trim Panels

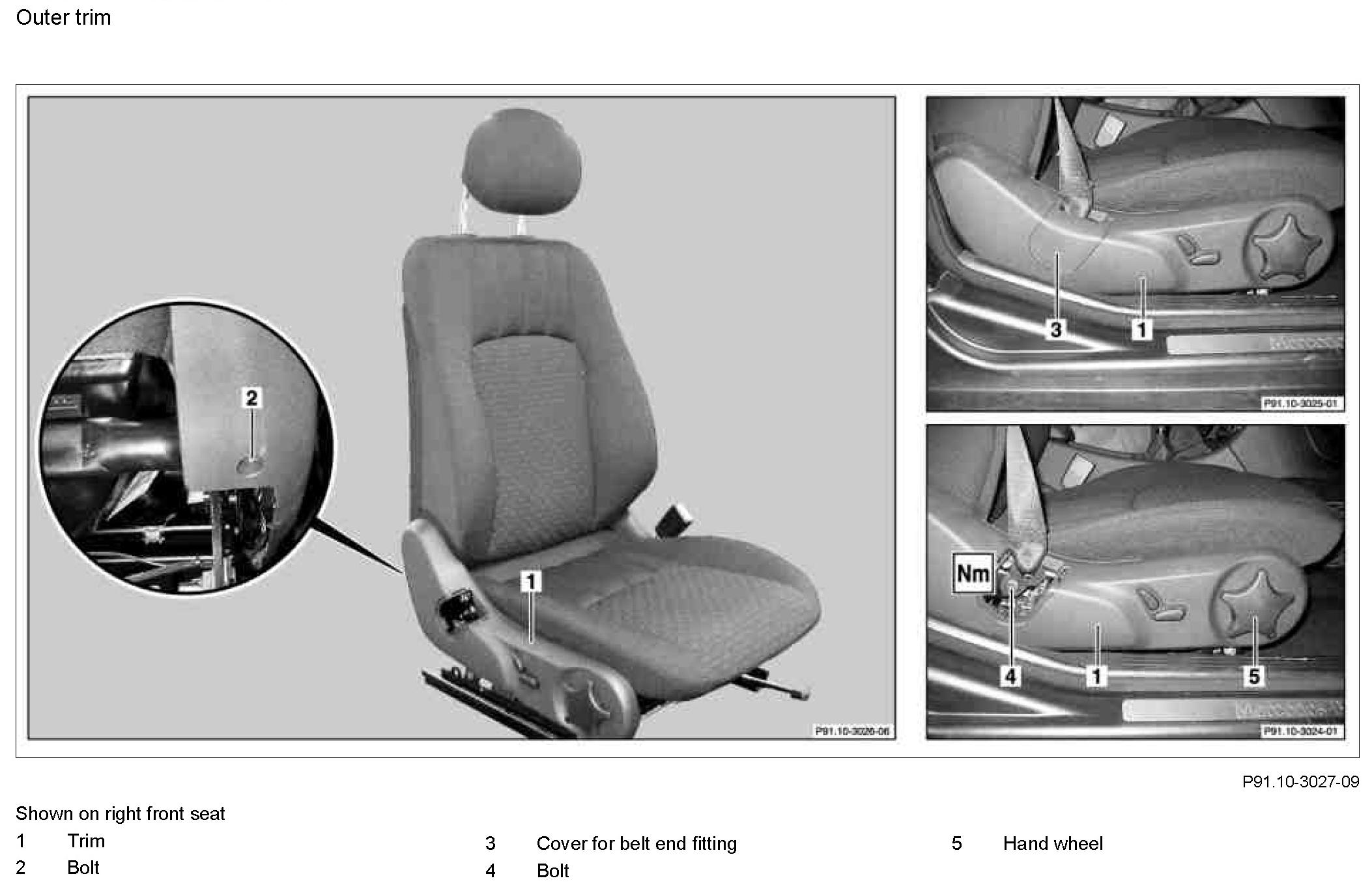

- Outer trim


Component Identification:

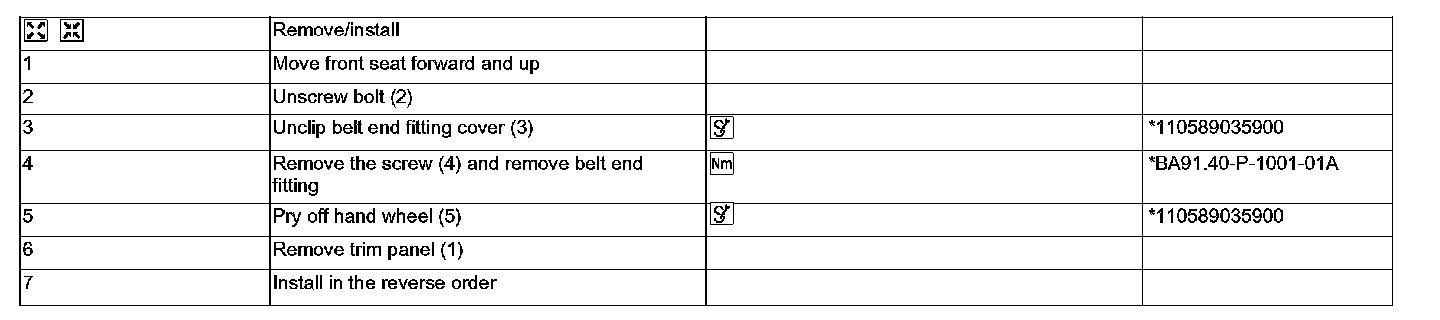

Seats 1 - 7:

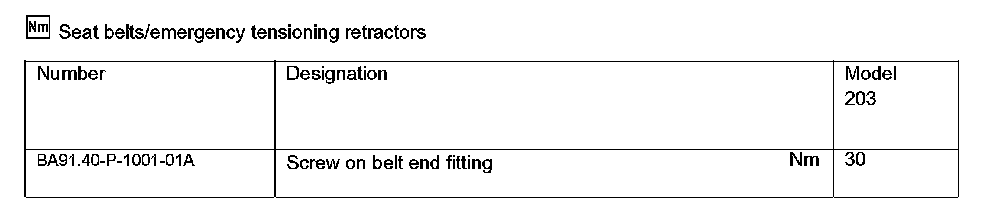

Seat Belts/emergency Tensioning Retractors:

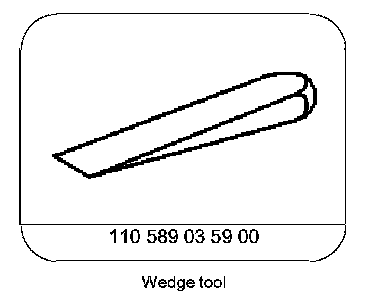

Special Tools:
