Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2004
>>
SLK 32 AMG (170.466) V6-3.2L SC (112.960)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Accessories and Optional Equipment
>>
Emergency Contact Module
>>
Diagrams
Emergency Contact Module: Diagrams
Emergency Call System

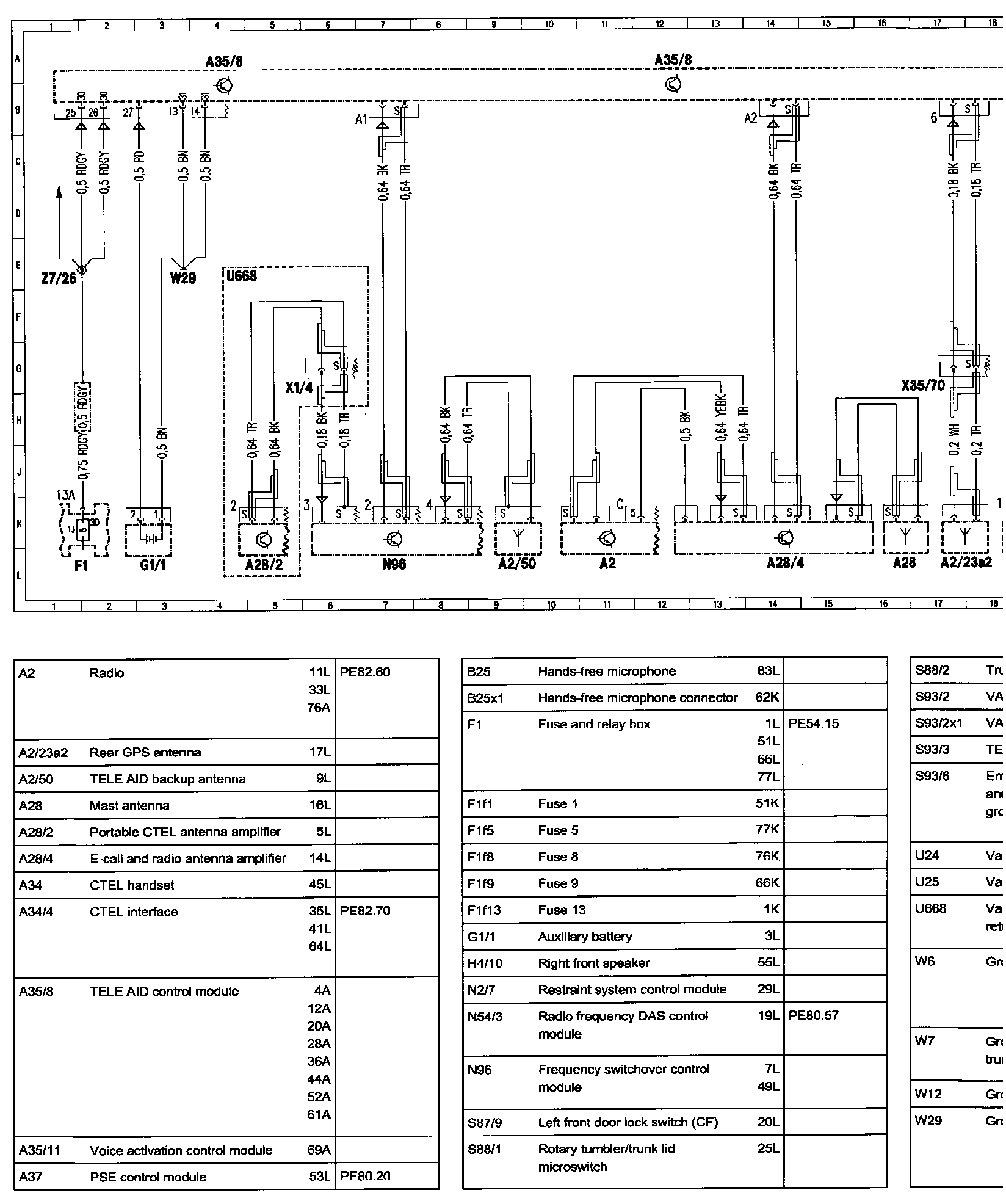

���p9��p���Wiring Diagram:

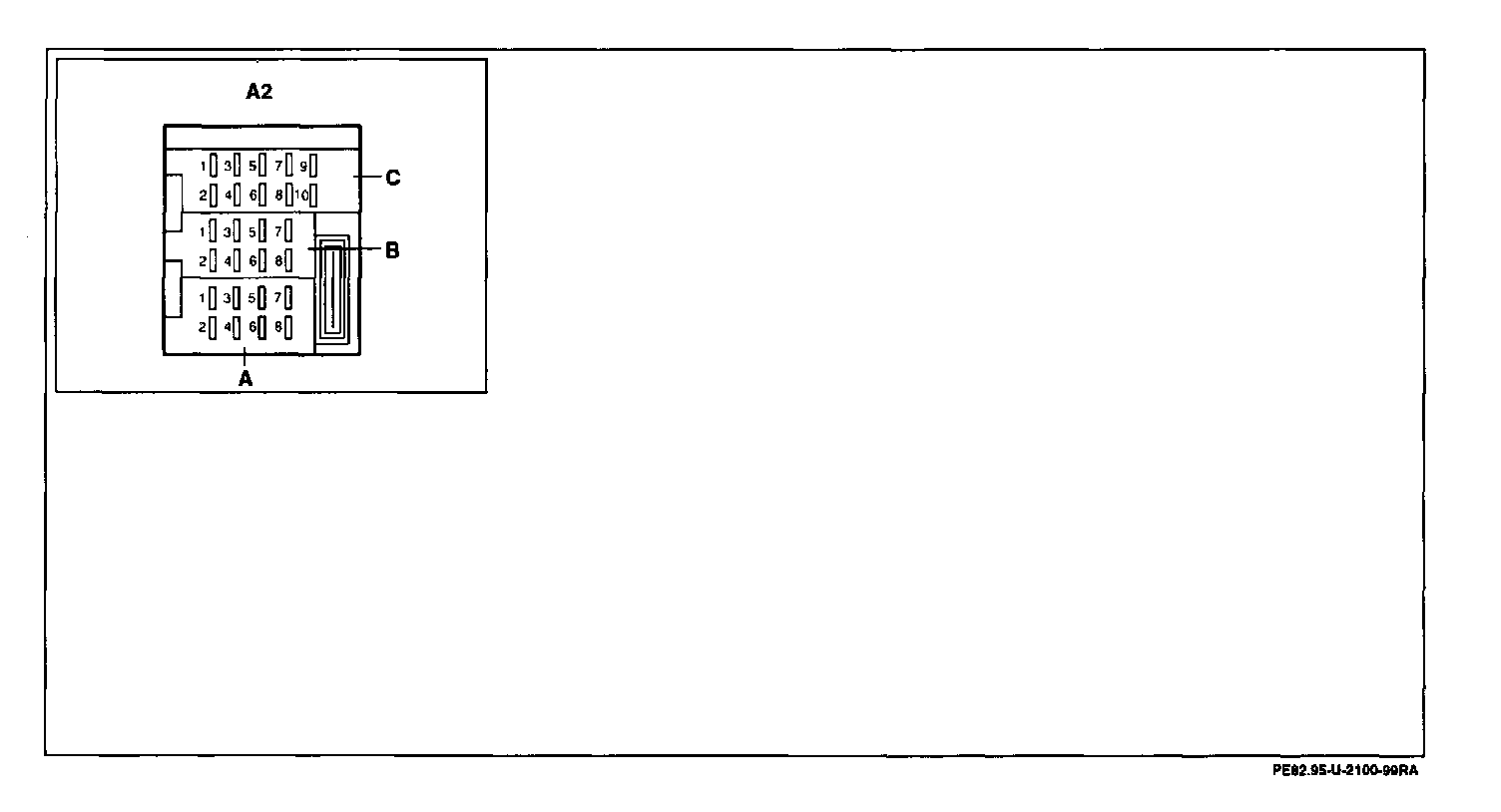

Connector Assignment:

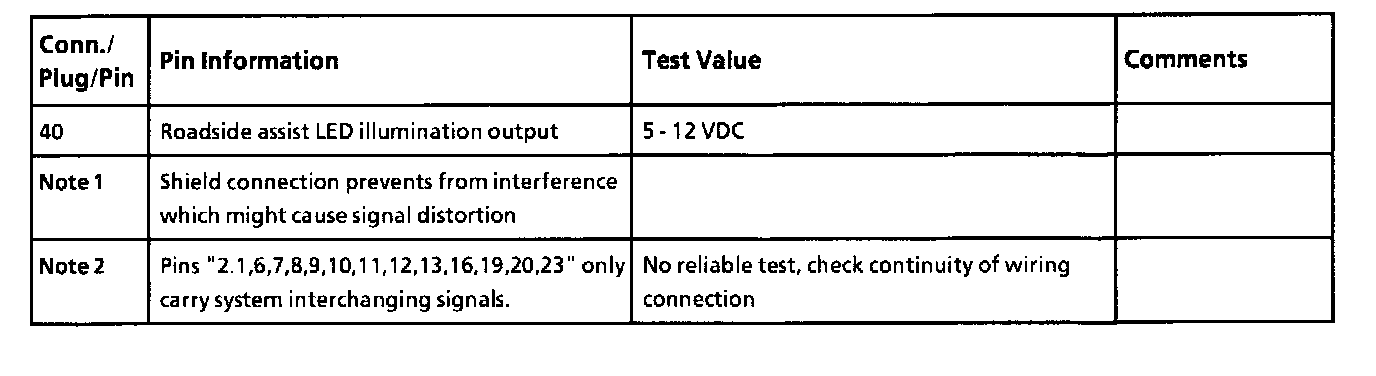

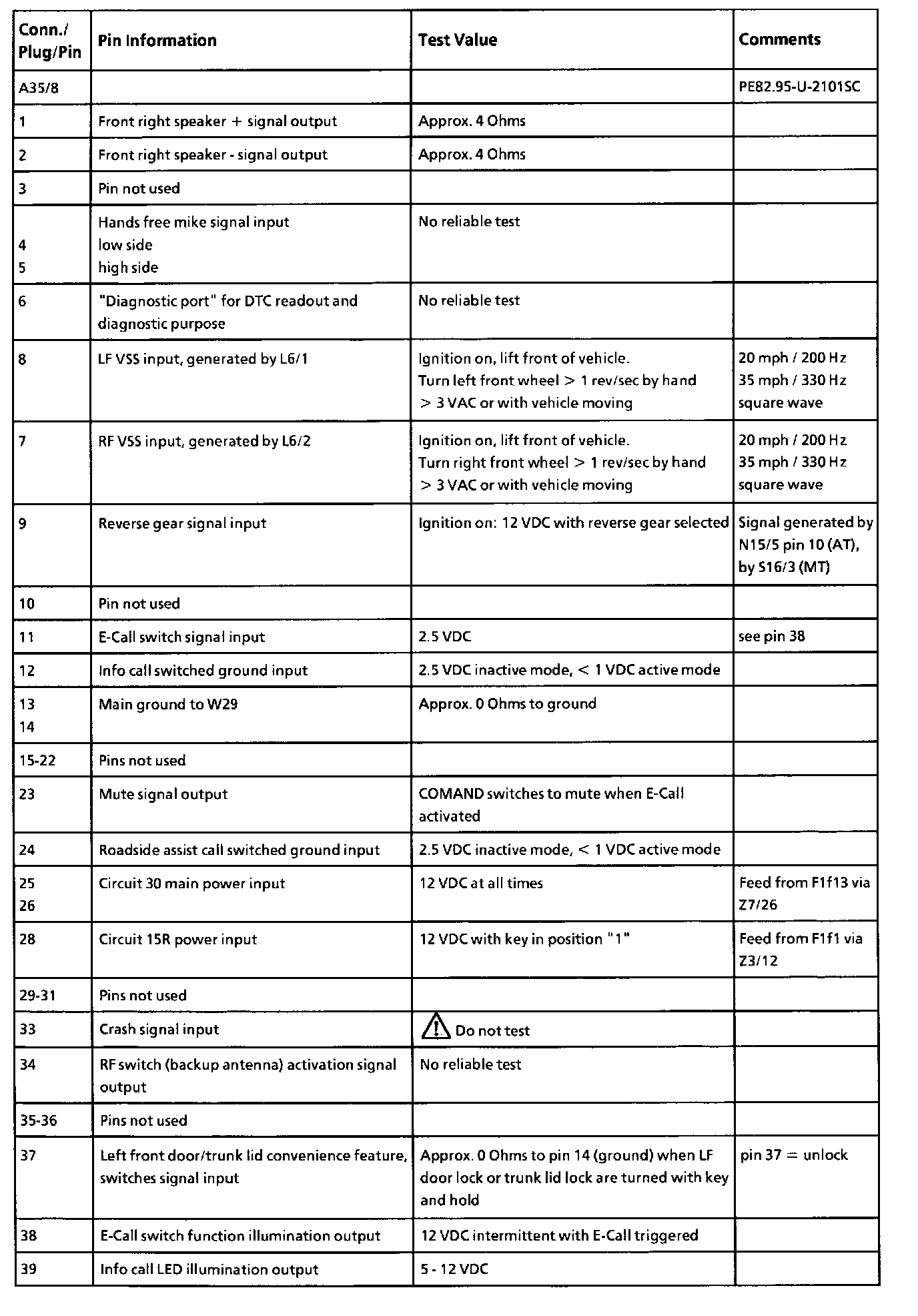

Pin Information, Part 1:
Pin Information, Part 2:
