AR40.20-P-0261R Adjust Rear-Axle Toe
AR40.20-P-0261R Adjust Rear-Axle Toe
AR40.20-P-0261R Adjust rear-axle toe

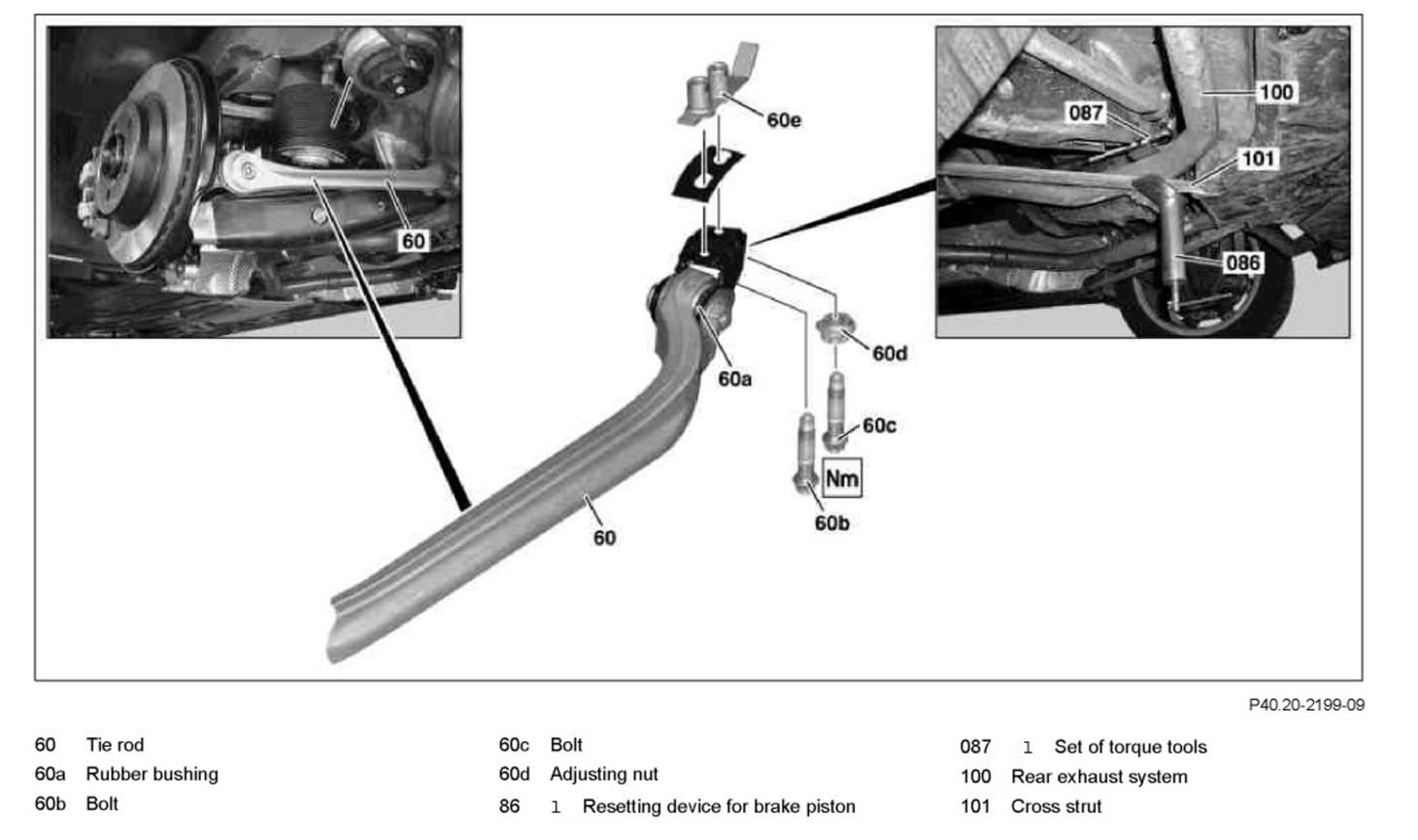

Component Identification:

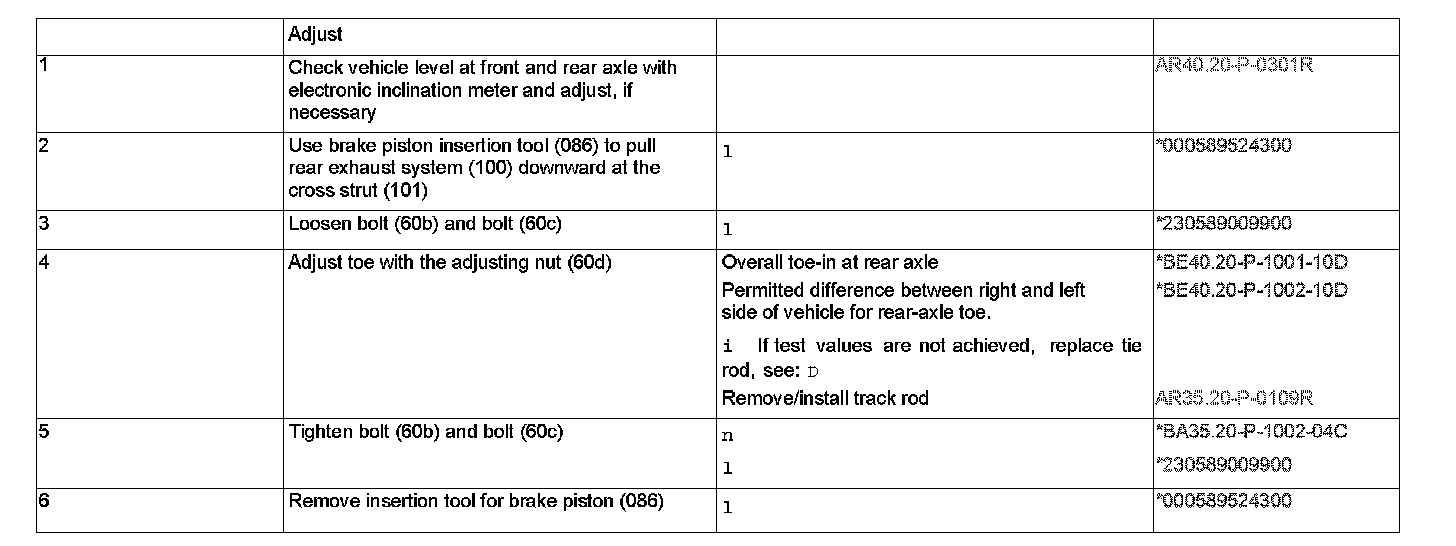

Steps 1-6:

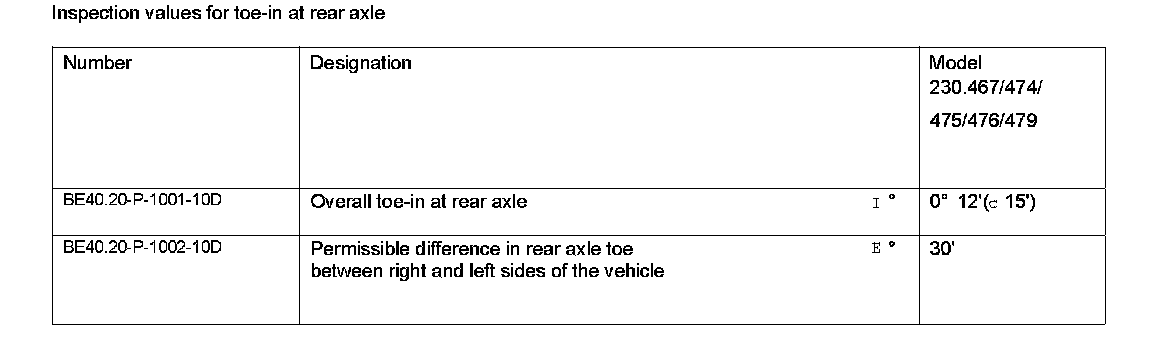

Inspection values for toe-in at rear axle:

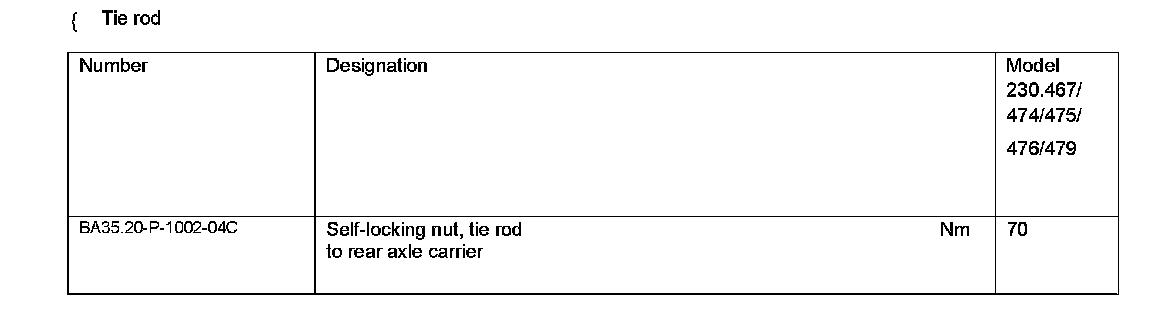

Tie rod:
Special Tools:
