AR88.10-P-1300R Remove/Install Fender Liner In Front Fender



AR88.10-P-1300R Remove/Install Fender Liner In Front Fender

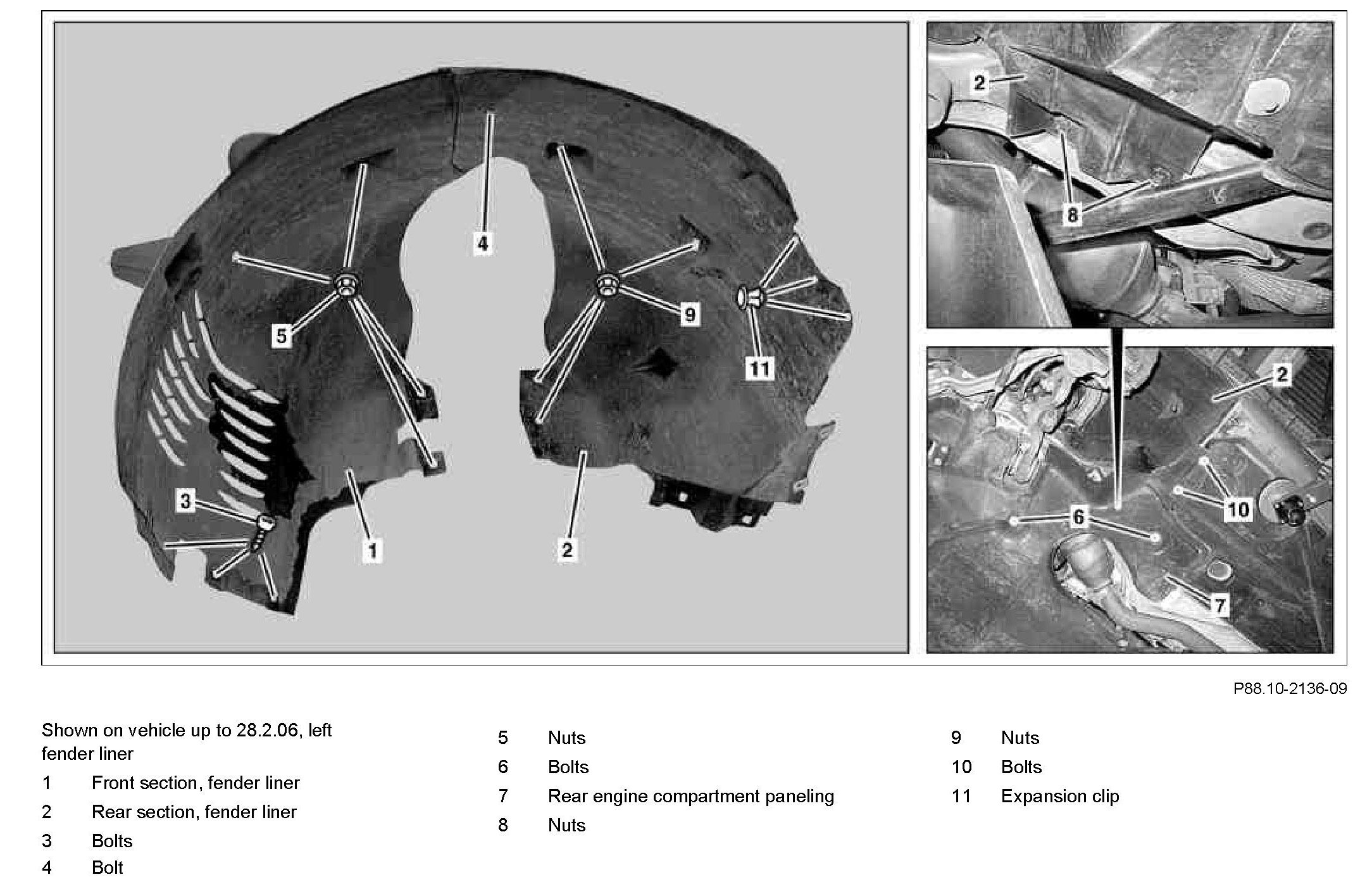

Component Identification:

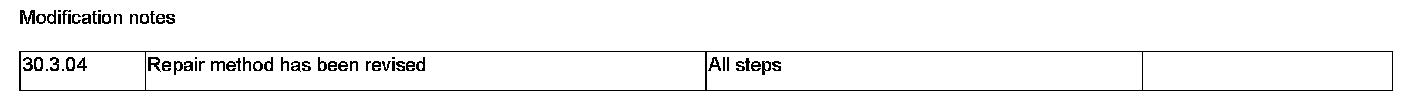

Modification Notes:

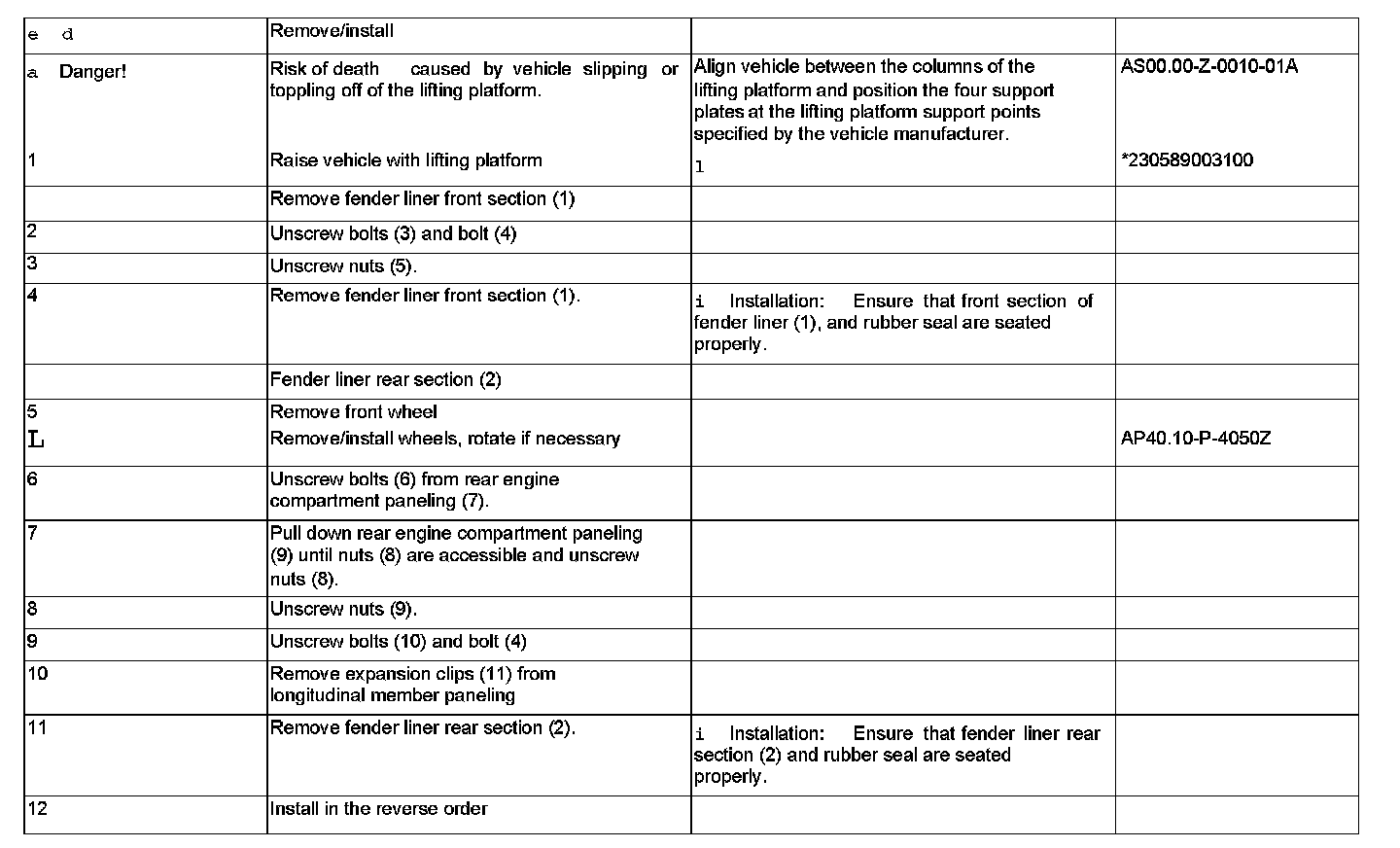

Steps 1 - 12:

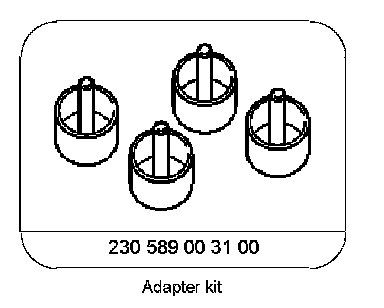

Special Tools:
