Home >> Mercedes Benz >> 2004 >> S 430 4MATIC (220.183) V8-4.3L (113.948) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Air Injection >> Air Injection Pump >> Service and Repair

Air Injection Pump: Service and Repair

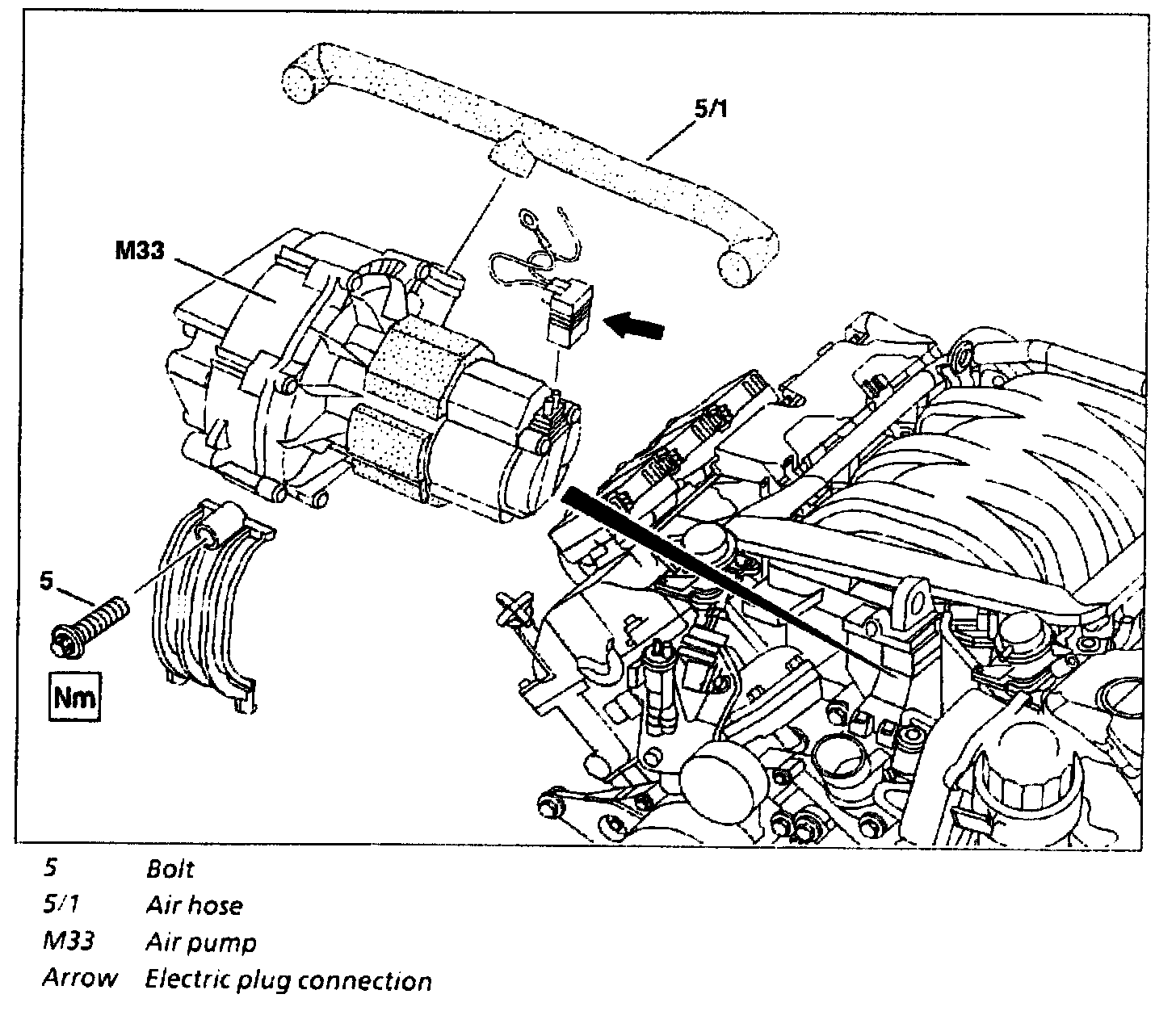

Component Identification

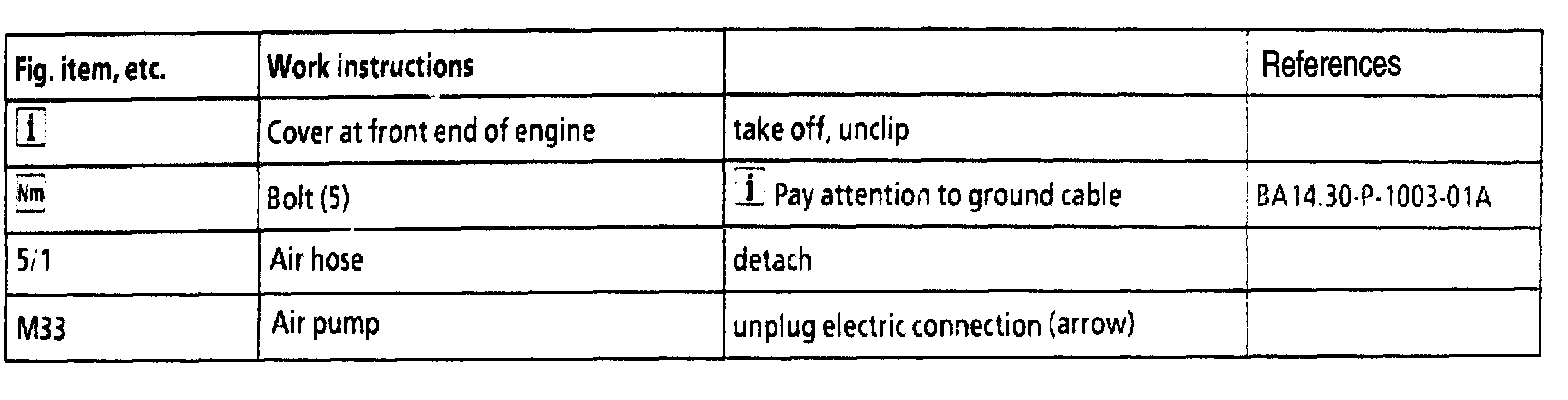

Work instructions






References (BA), Air pump
