Outside Temperature Display Sensor: Service and Repair



AR54.30-P-6341I Remove/Install Outside Temperature Indicator Sensor

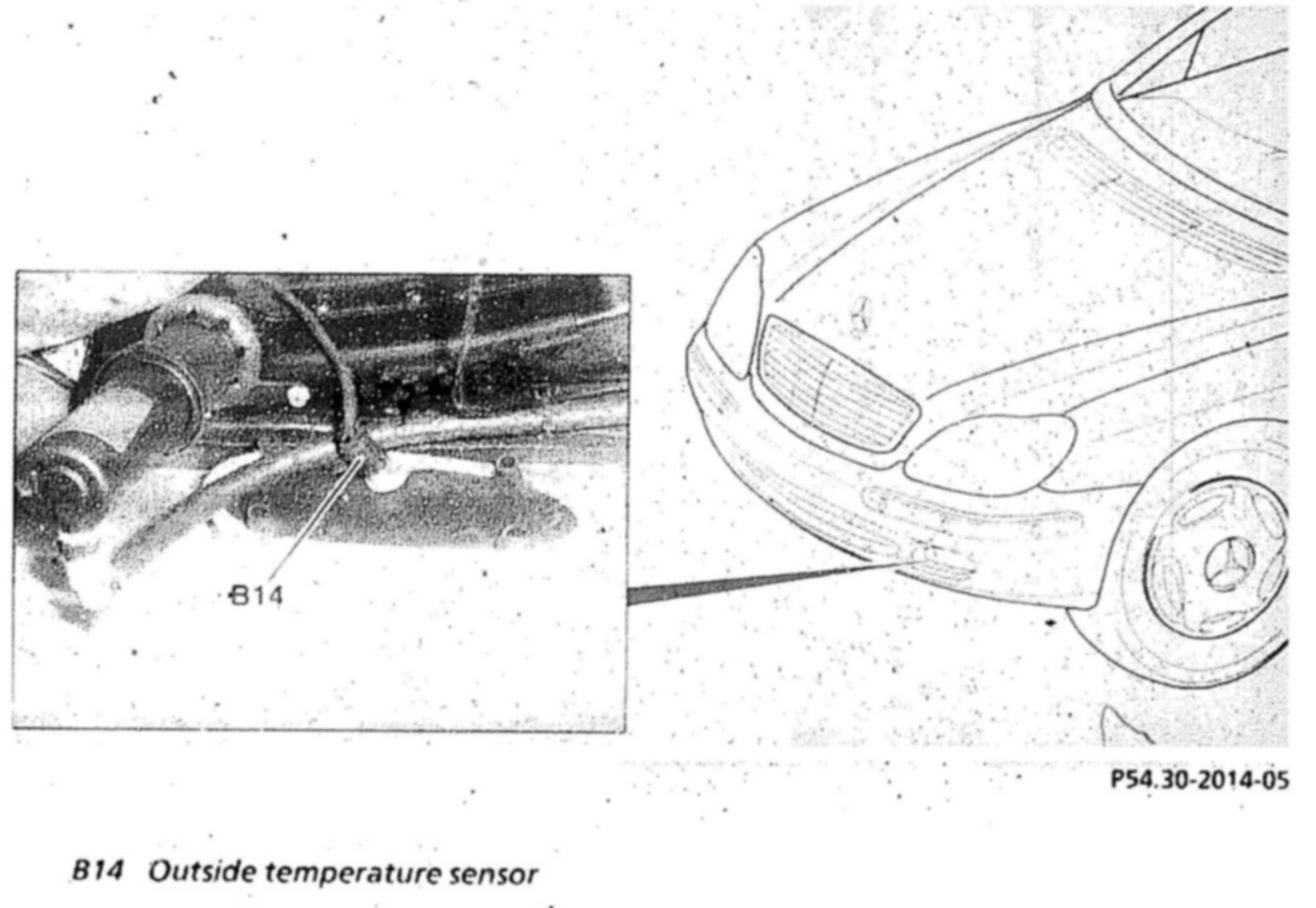

Component Identification:

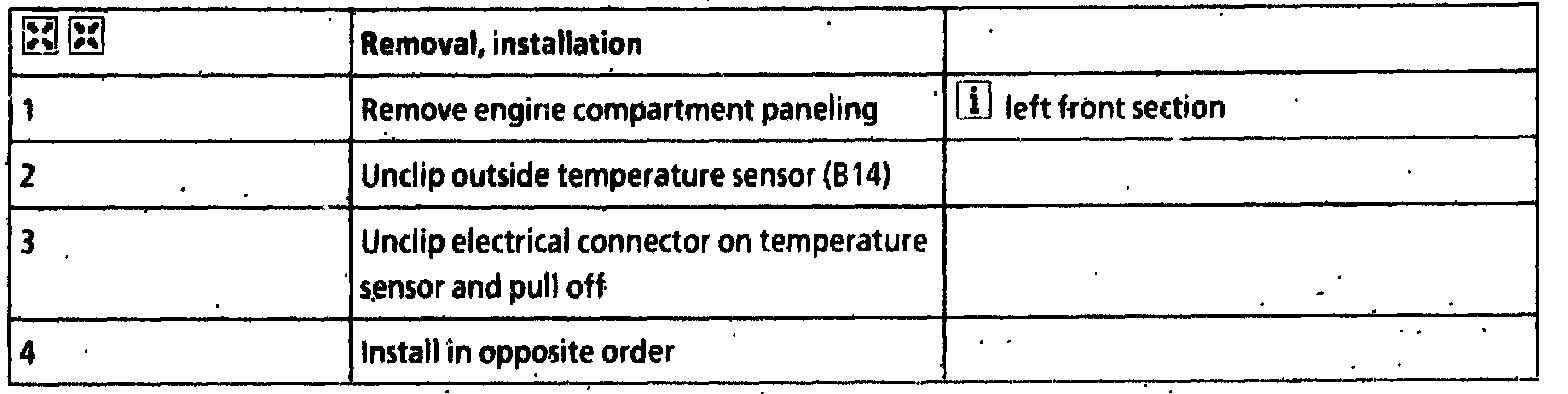

Removal/Installation, Steps 1 - 4:
