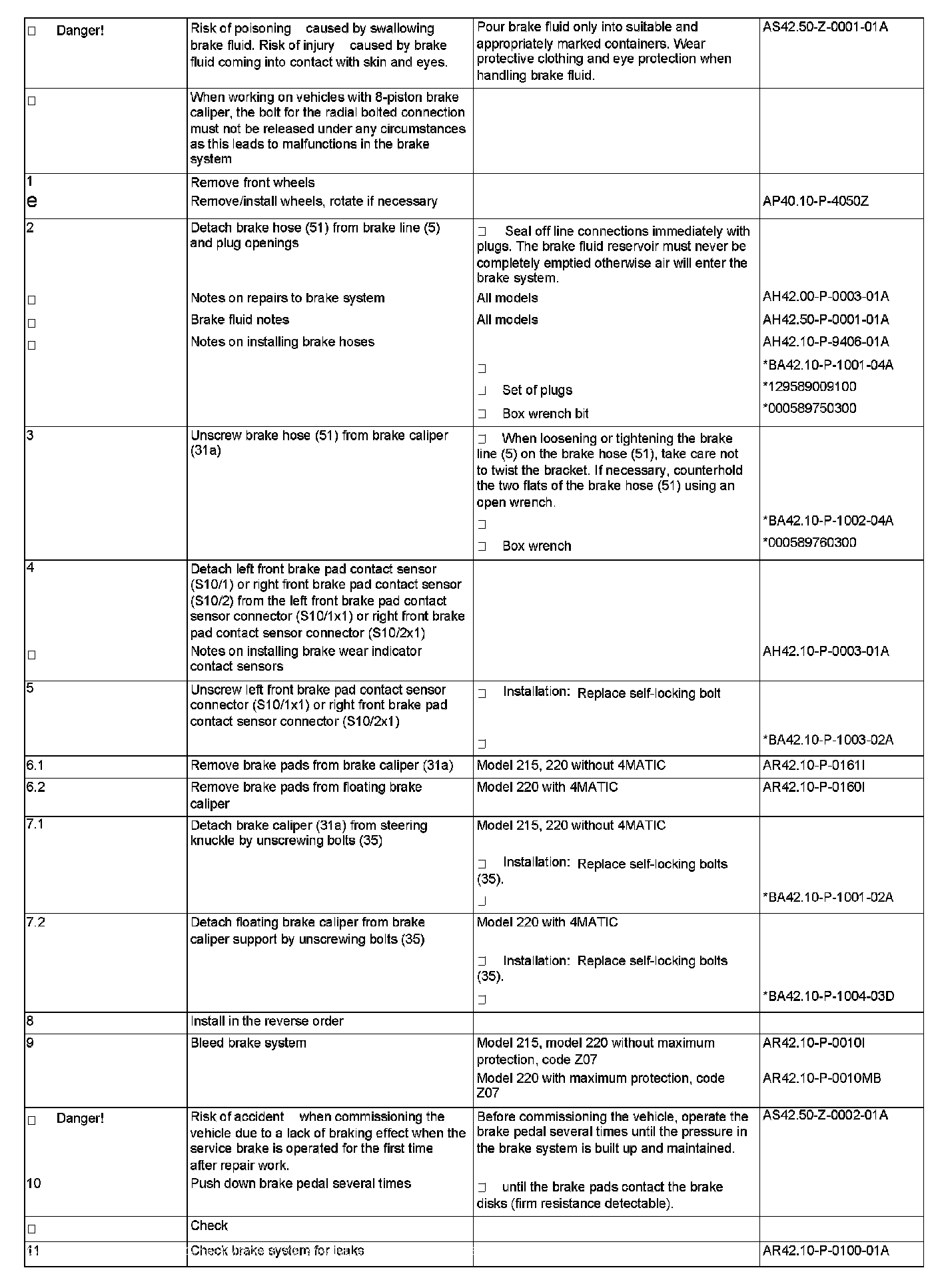

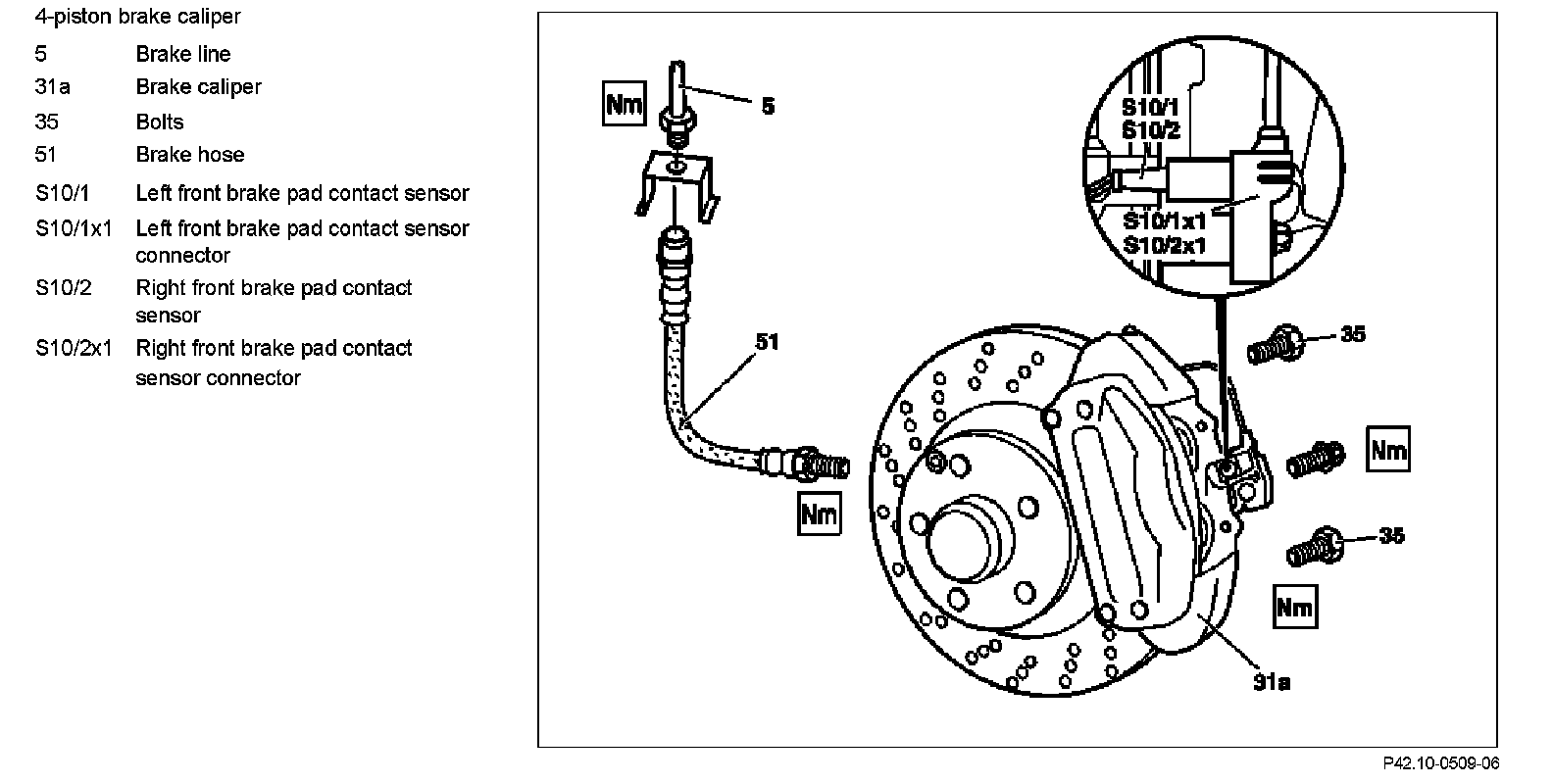

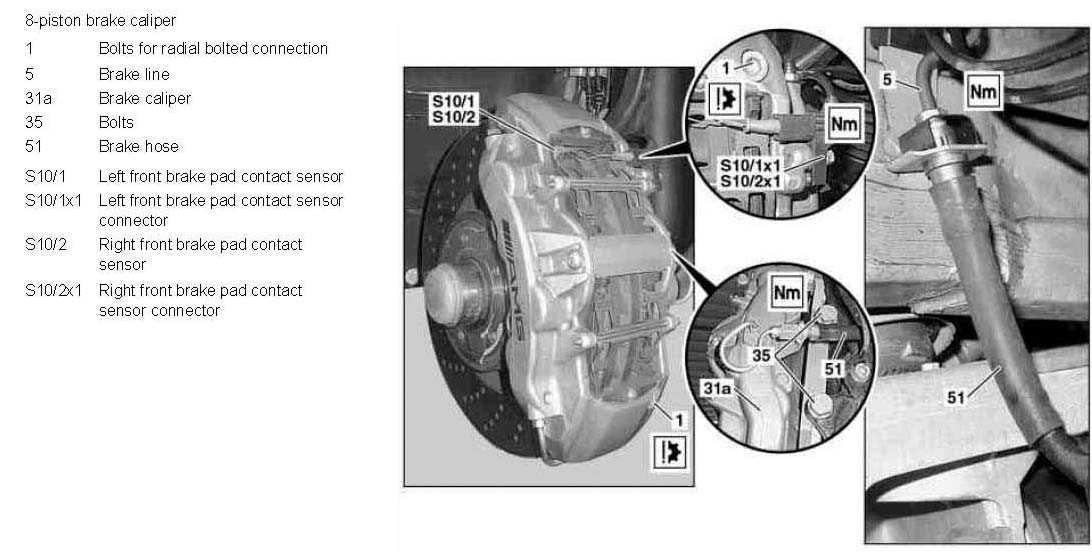

AR42.10-P-0070I Remove/Install Front Axle Brake Caliper
AR42.10-P-0070I Remove/Install Front Axle Brake Caliper
Remove/install front axle
brake caliper
