AN31.10-P-8080M Retrofit Trailer Coupling
AN31.10-P-8080M Retrofit Trailer Coupling
- Mechanical swing-away trailer hitch MK1
- except CODE (772) AMG styling package
- except CODE (855) TELE AID
- except CODE (979) Special protection version

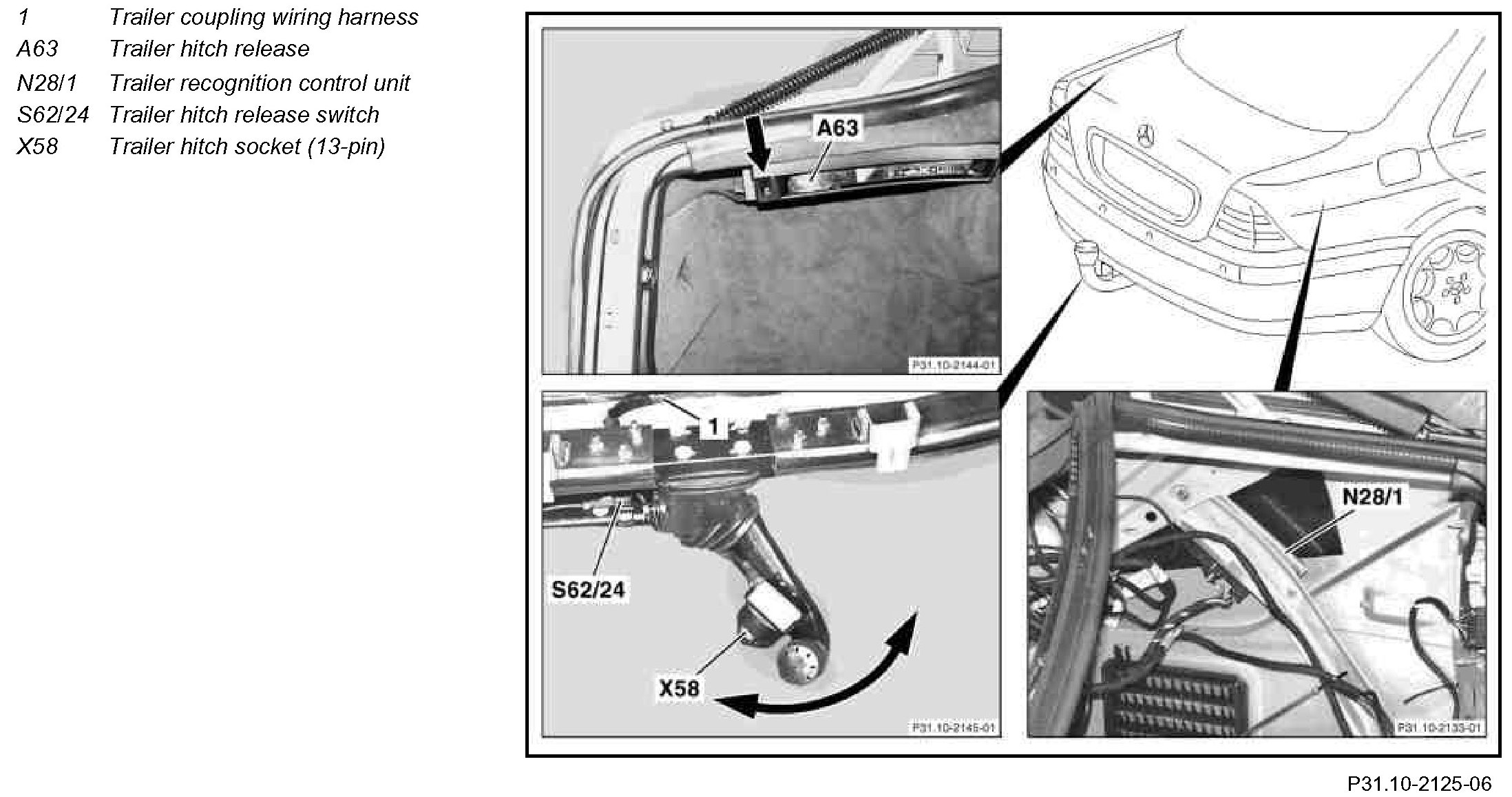

Component Identification:
Component Identification:

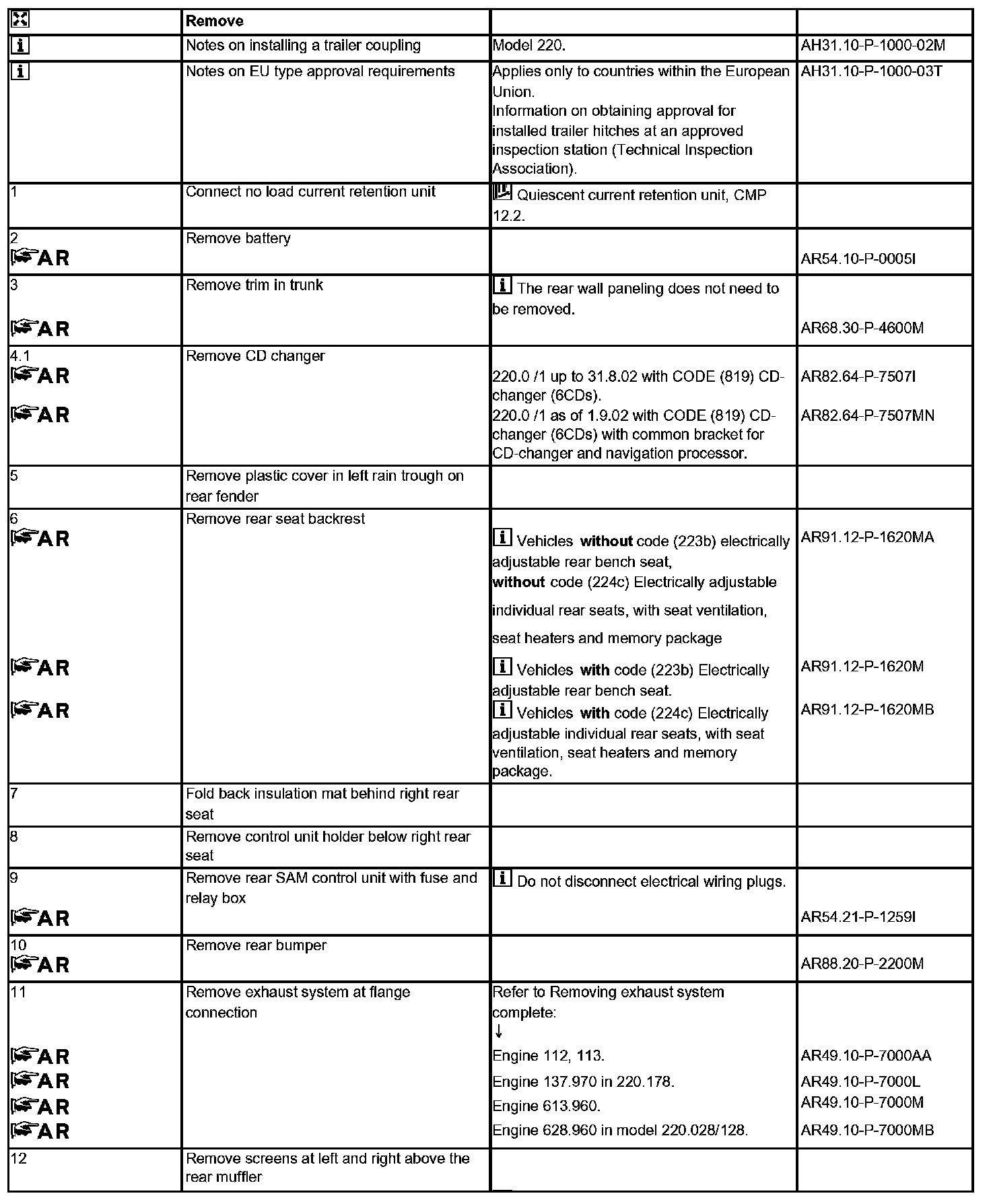

Steps 1 - 12:

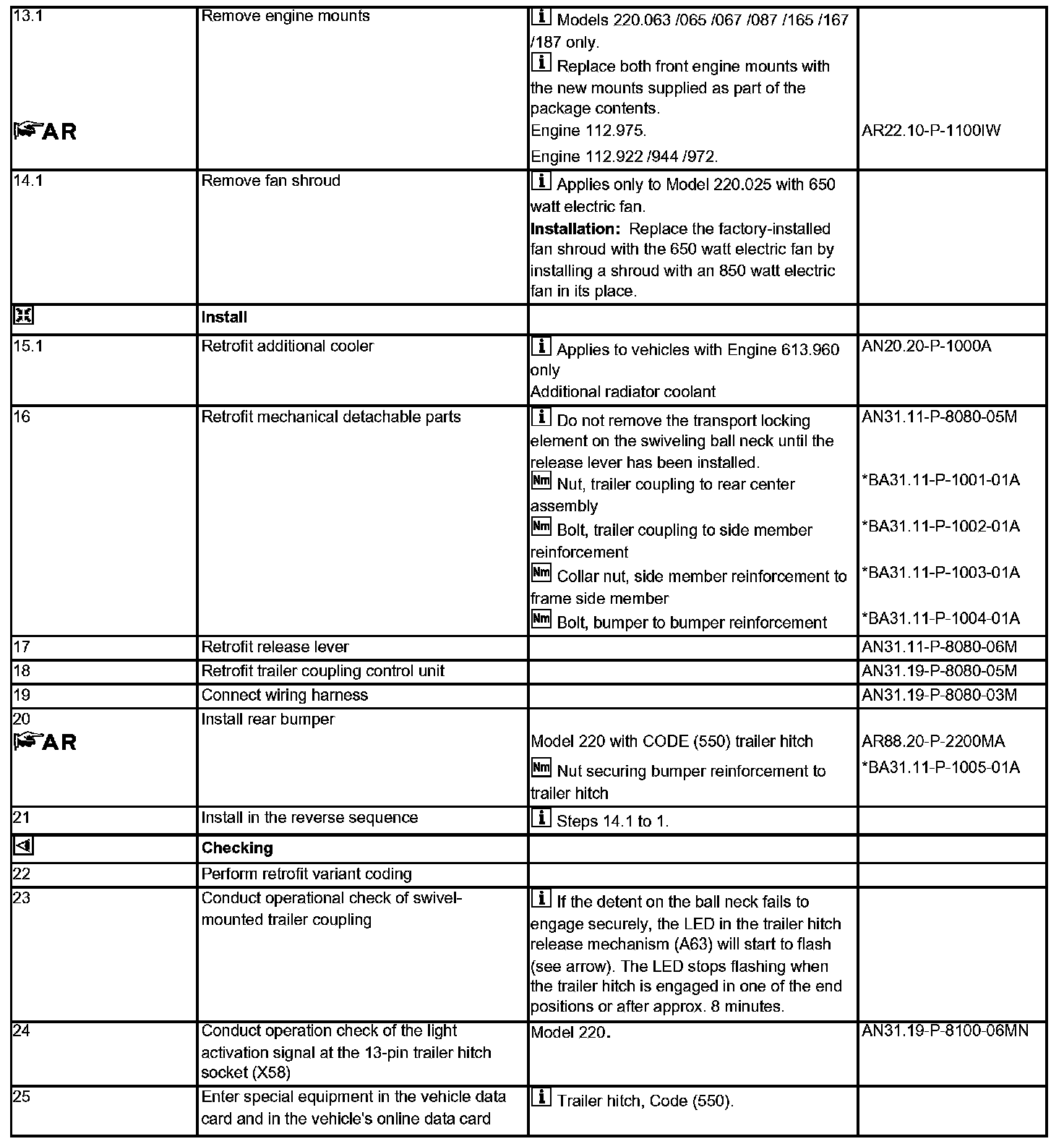

Steps 13.1 - 25:

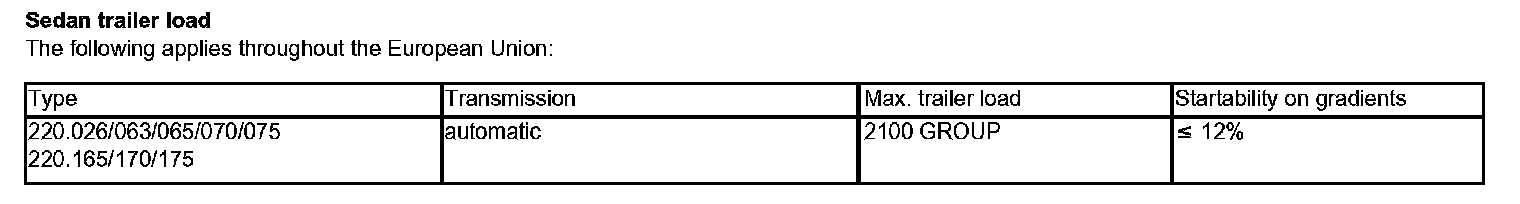

Sedan Trailer Load:

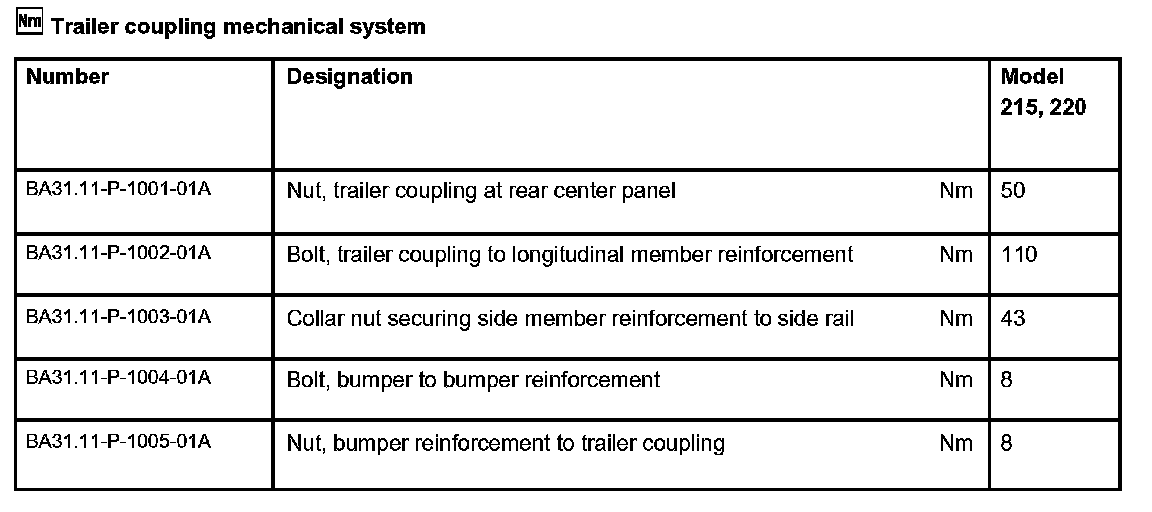

Trailer Coupling Mechanical System:
Parts Ordering Notes:
