AR67.30-P-4100T Remove, Install Detachable Parts When Replacing Rear Side Window



AR67.30-P-4100T Remove, Install Detachable Parts When Replacing Rear Side Window

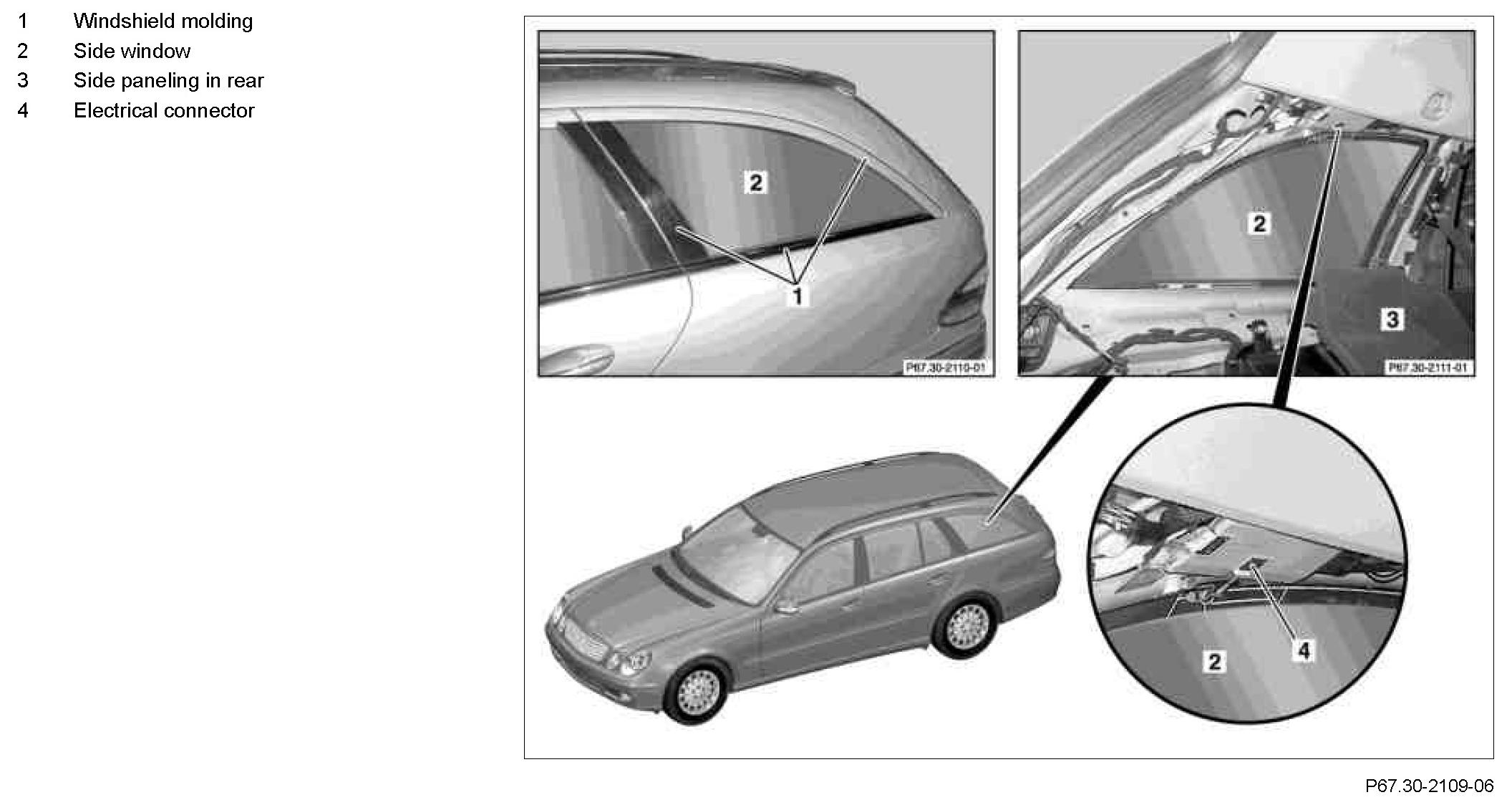

Component Identification:

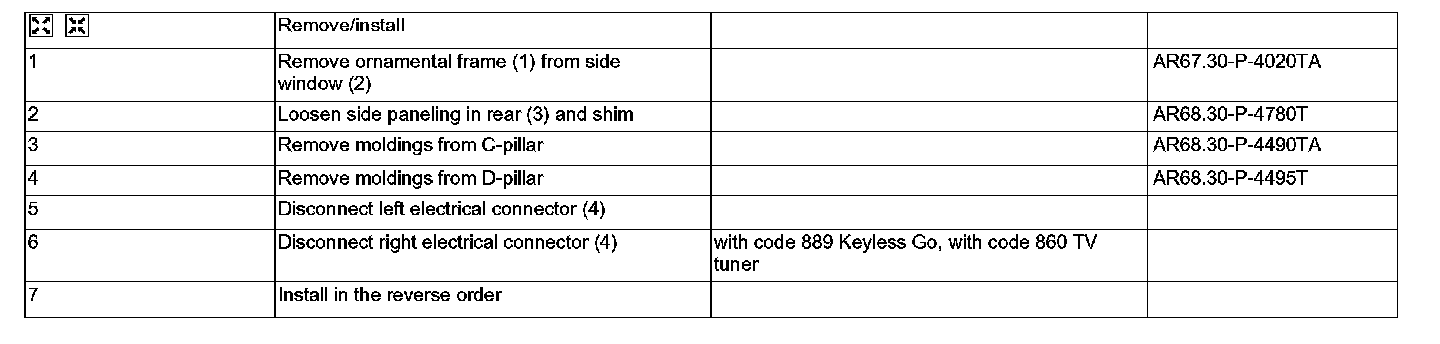

Steps 1 - 7:
