AR46.10-P-0200TA Remove/Install Clock Spring Contact
AR46.10-P-0200TA Remove/Install Clock Spring Contact
AR46.10-P-0200TA Remove/install clock spring contact

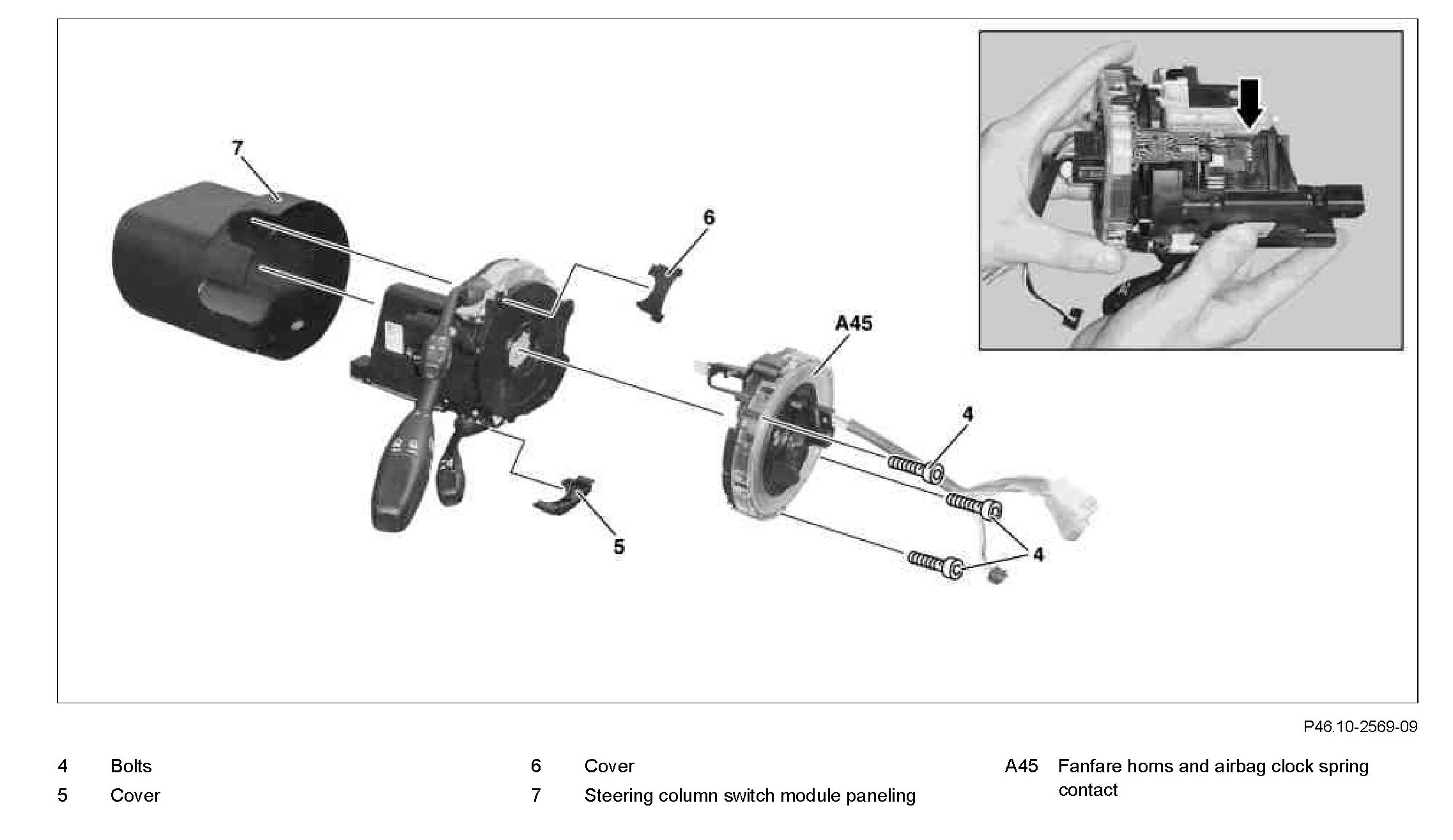

Component Identification:

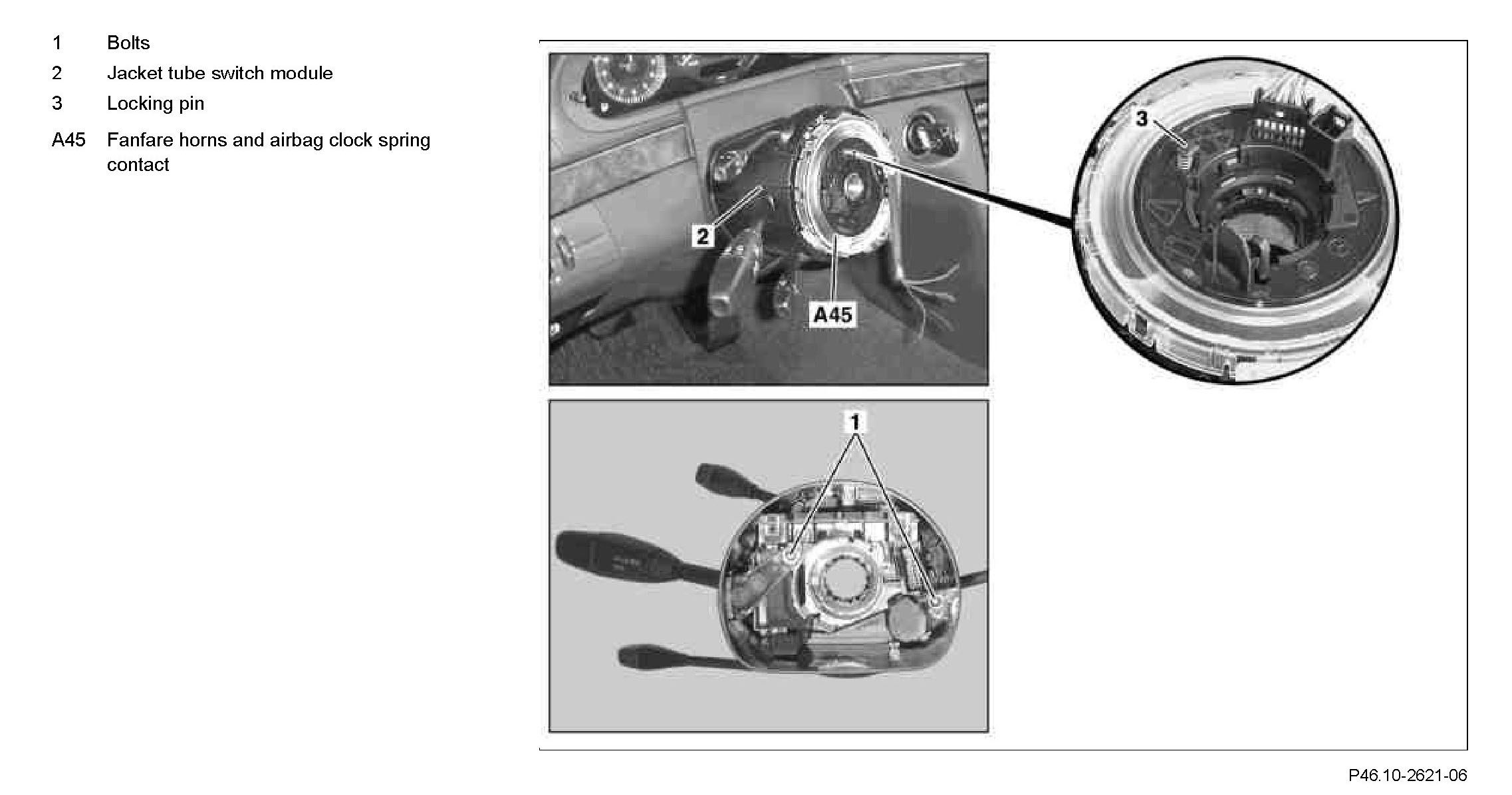

Component Identification:

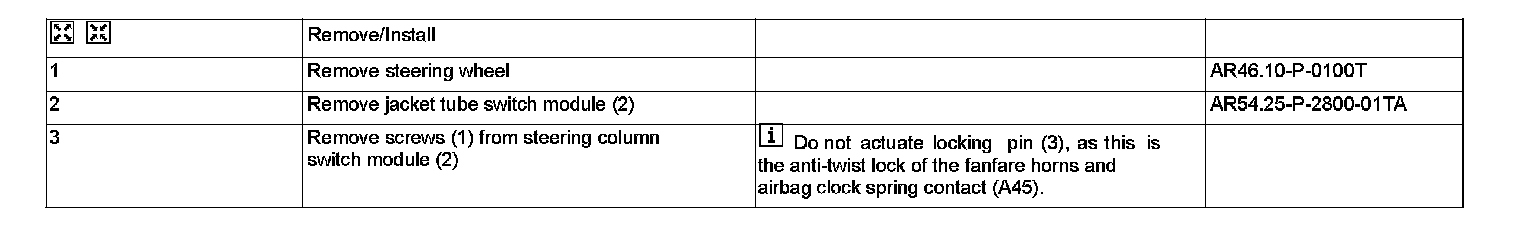

Steps 1 - 3:

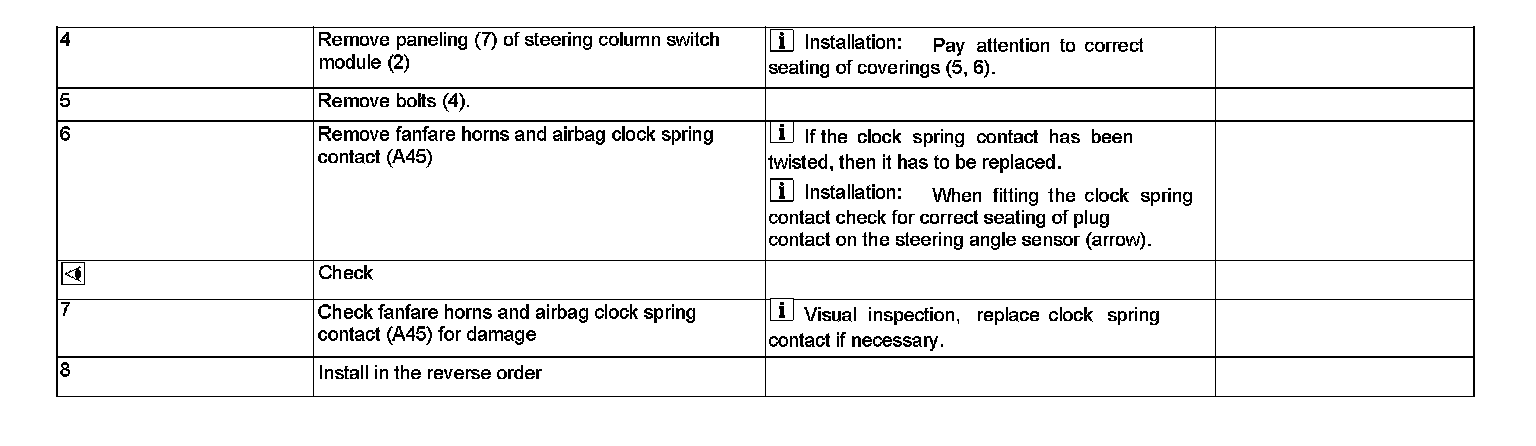

Steps 4 - 8:
