AR46.10-P-0200T Remove/Install Clock Spring Contact
AR46.10-P-0200T Remove/Install Clock Spring Contact

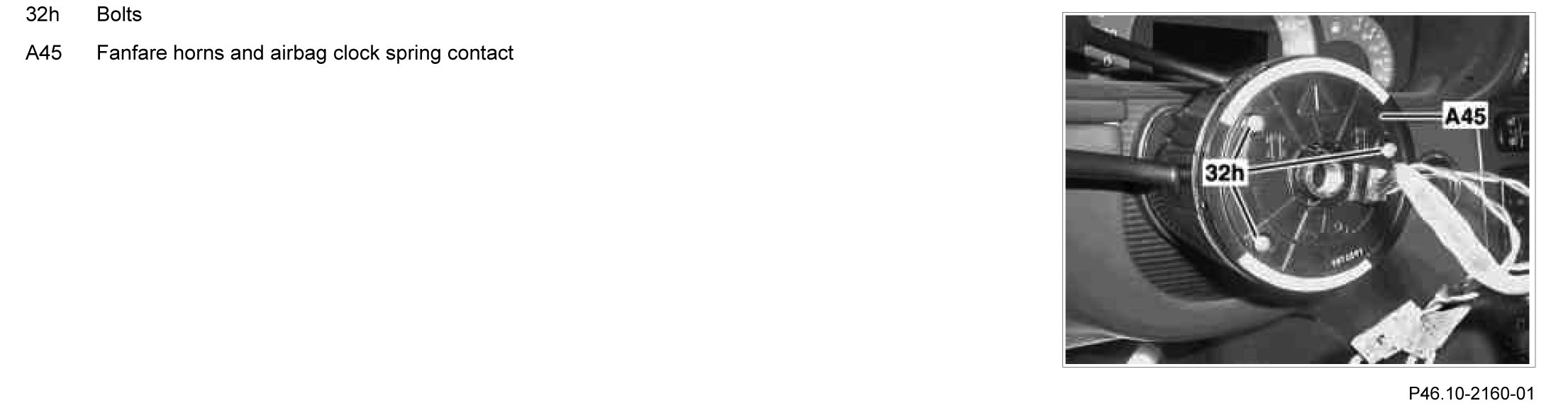

AR46.10-P-0200T Remove/install clock spring contact

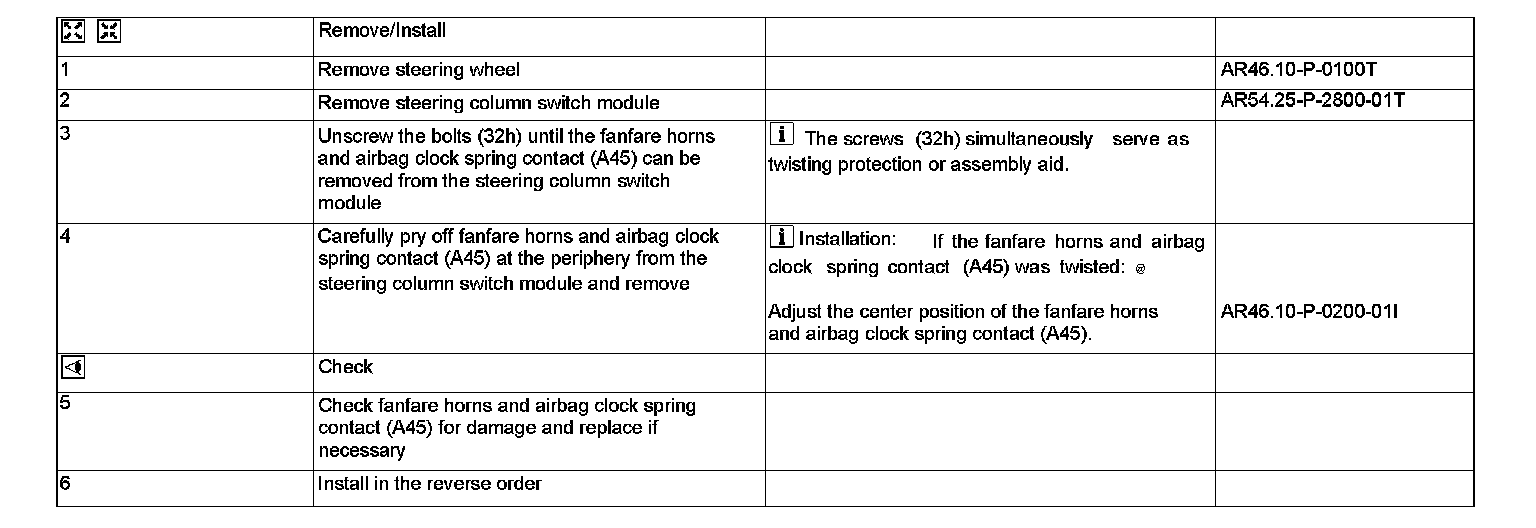

Steps 1 - 6:
