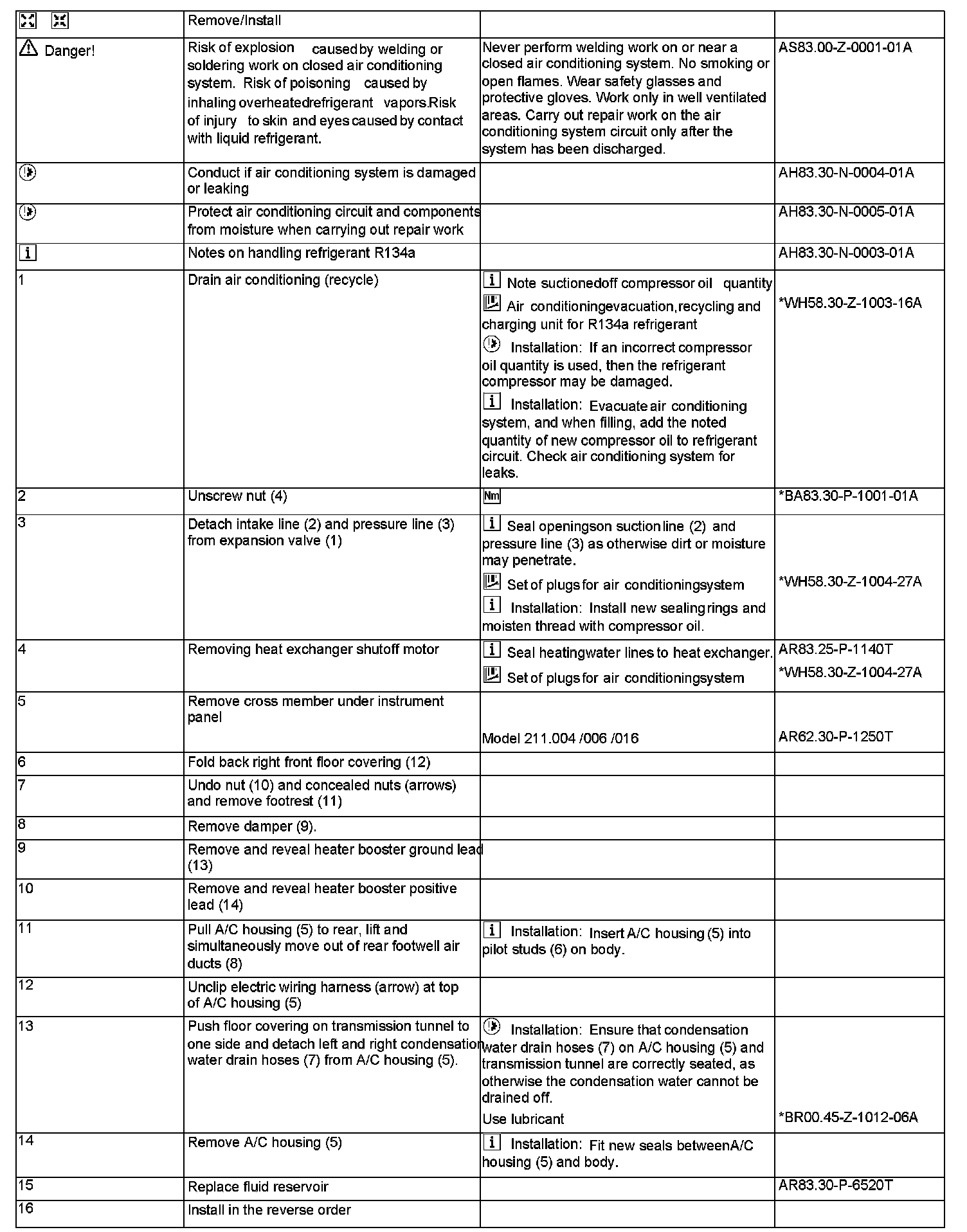

AR83.30-P-5200TA Remove/Install AC Housing
AR83.30-P-5200TA Remove/Install AC Housing
AR83.30-P-5200TA Remove/Install AC Housing
- With heater booster

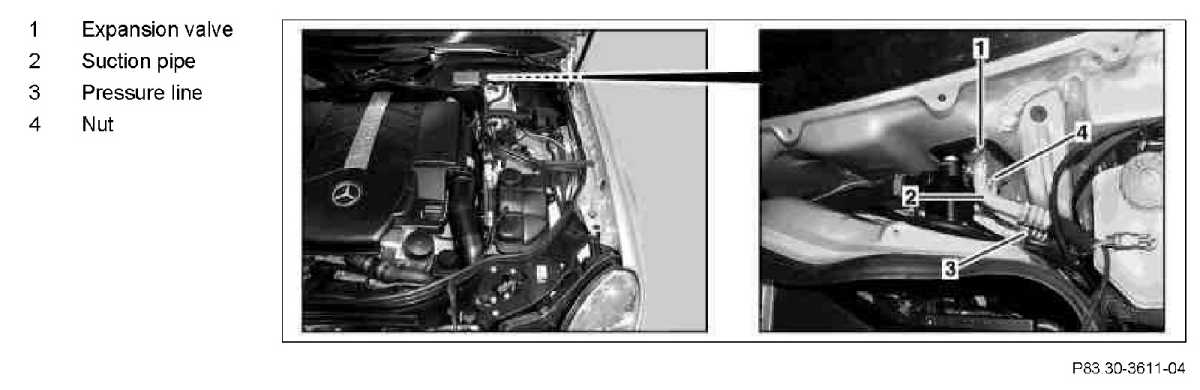

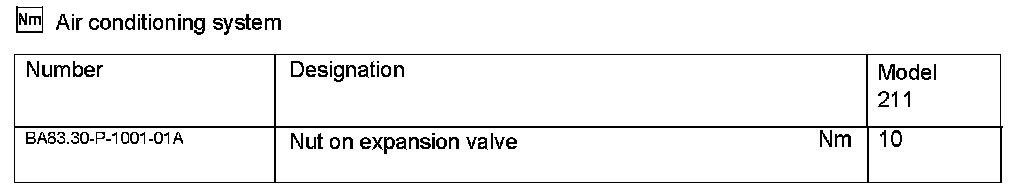

Air Conditioning System:
