Home >> Mercedes Benz >> 2004 >> E 320 4MATIC Sedan (211.082) V6-3.2L (112.954) >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Brake Rotor/Disc >> Service and Repair >> Removal and Replacement >> AR42.10-P-0220R Remove/Install Brake Disc

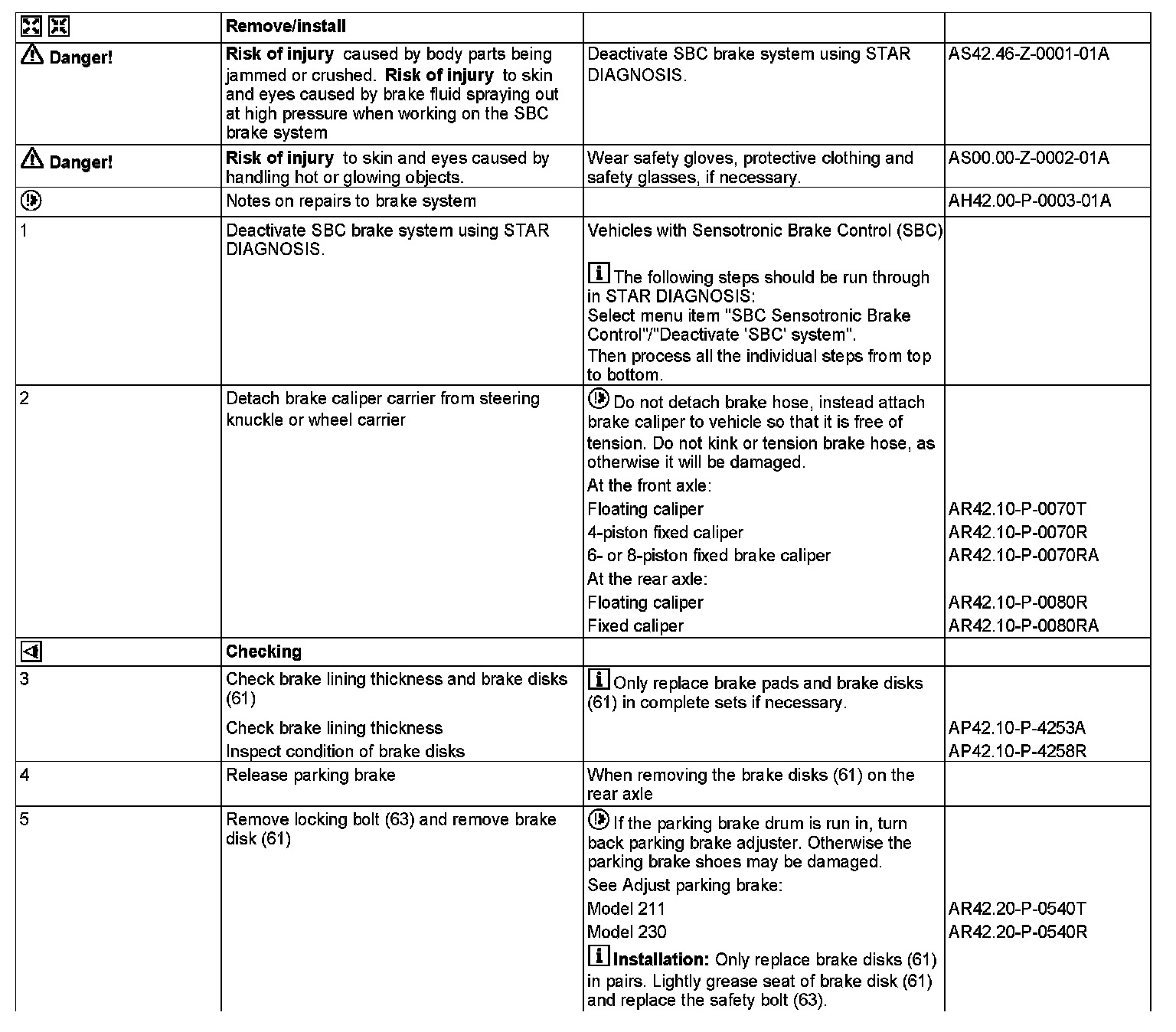

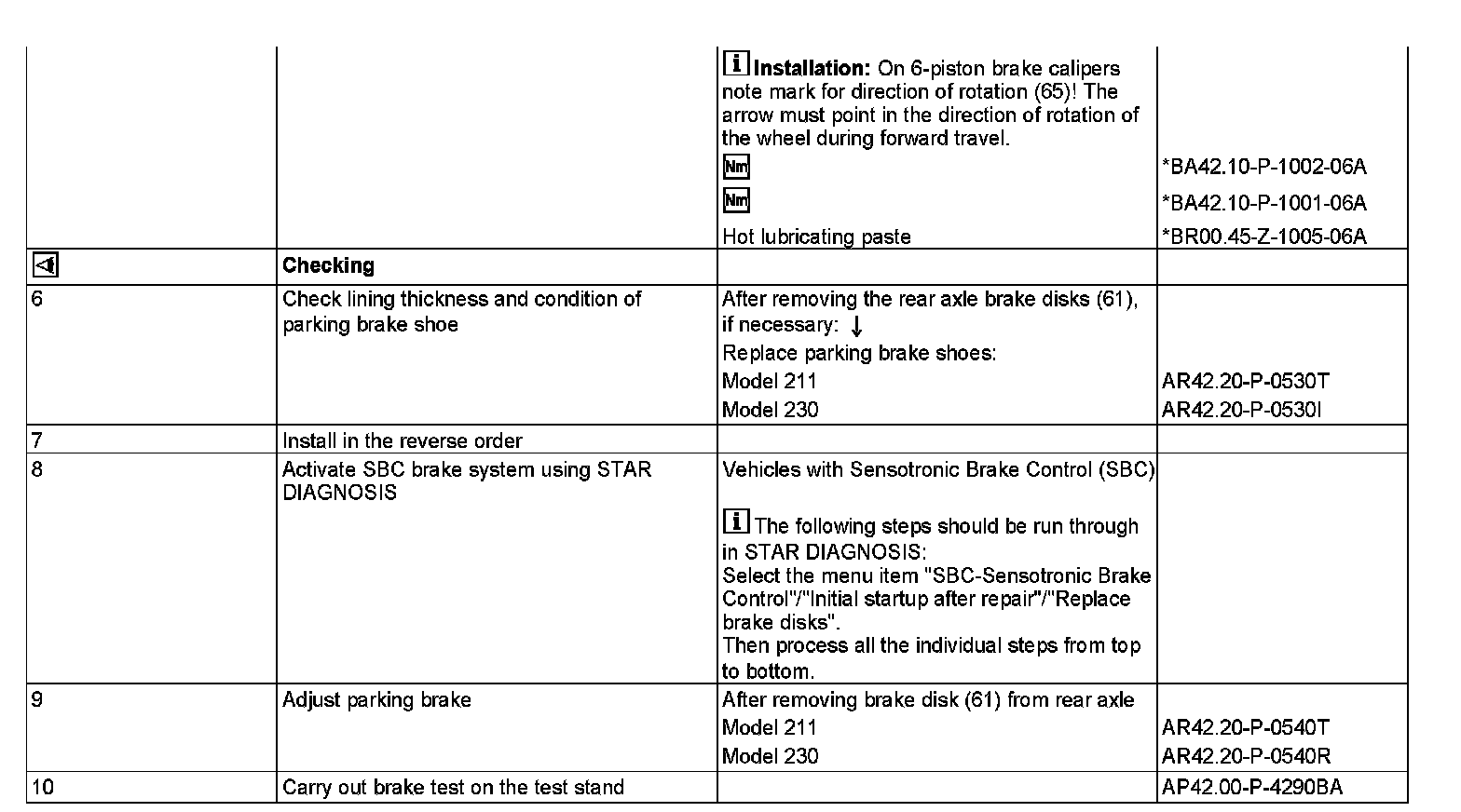

AR42.10-P-0220R Remove/Install Brake Disc




AR42.10-P-0220R Remove/Install Brake Disc
MODEL 211, 230

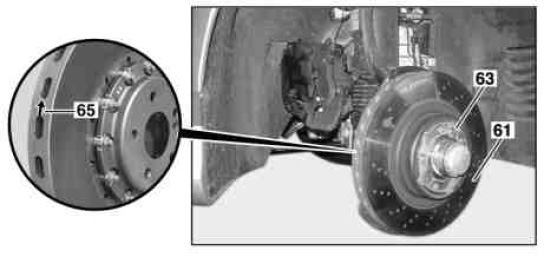

61 Brake disk
63 Security bolt
65 Mark for direction of rotation
