AR14.30-P-7251AC Remove/Install Air Pump
AR14.30-P-7251AC Remove/Install Air Pump
AR14.30-P-7251AC Remove/install air pump

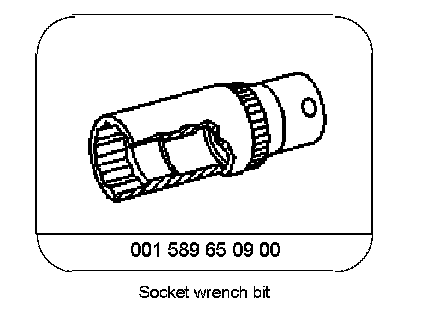

Special Tools:
Component Identification:

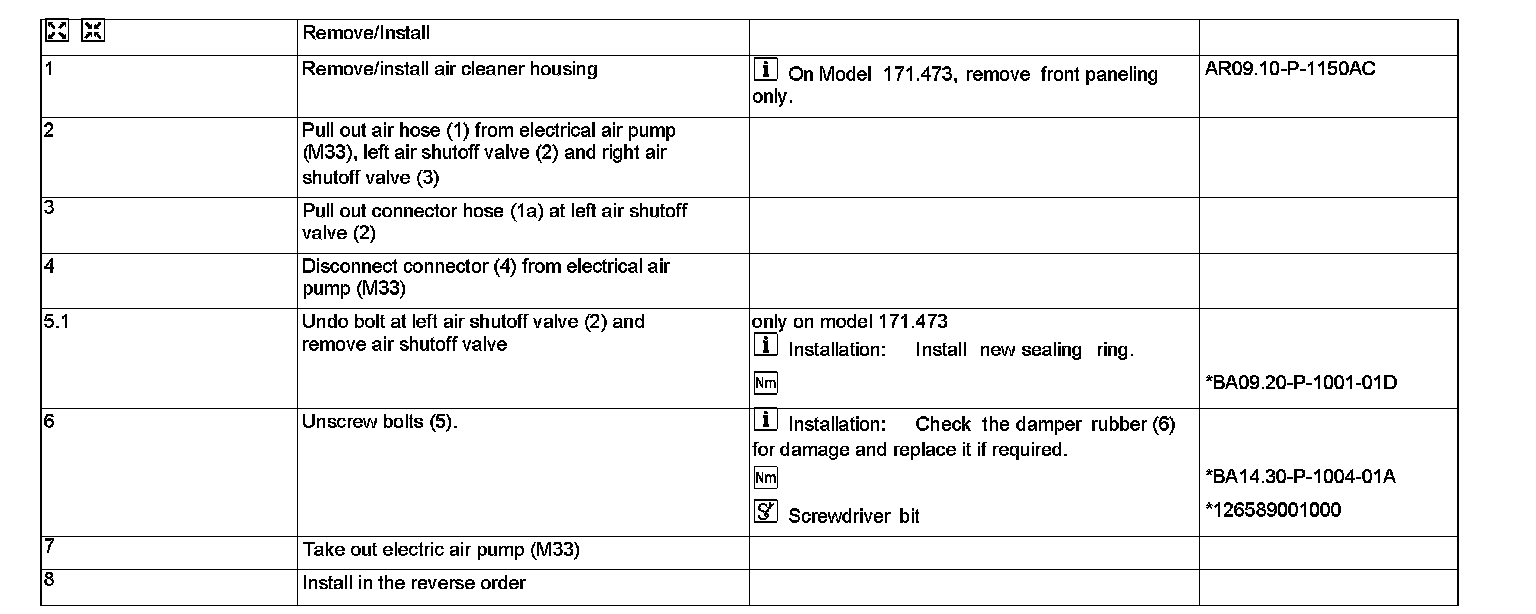

Steps 1-8:

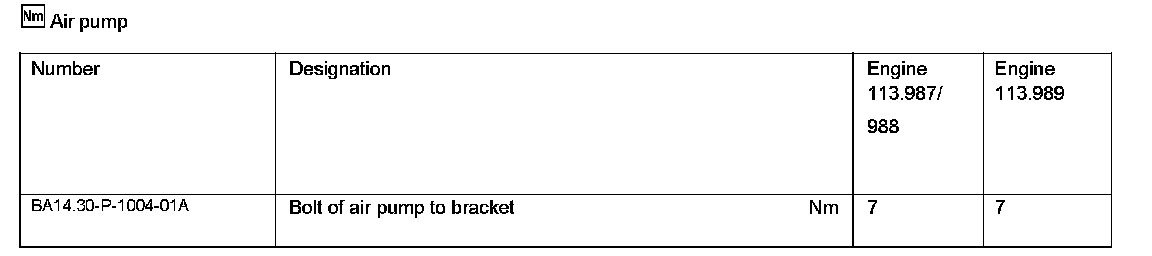

Air Pump:

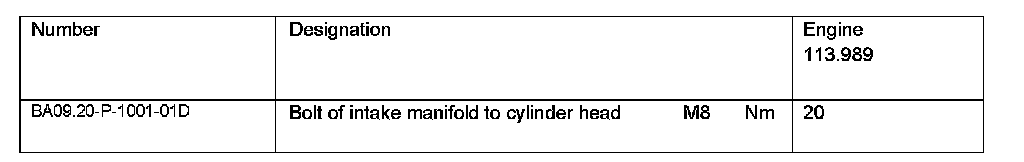

Intake Manifold:
Special Tools:
