Passenger Compartment Cross Beam: Service and Repair

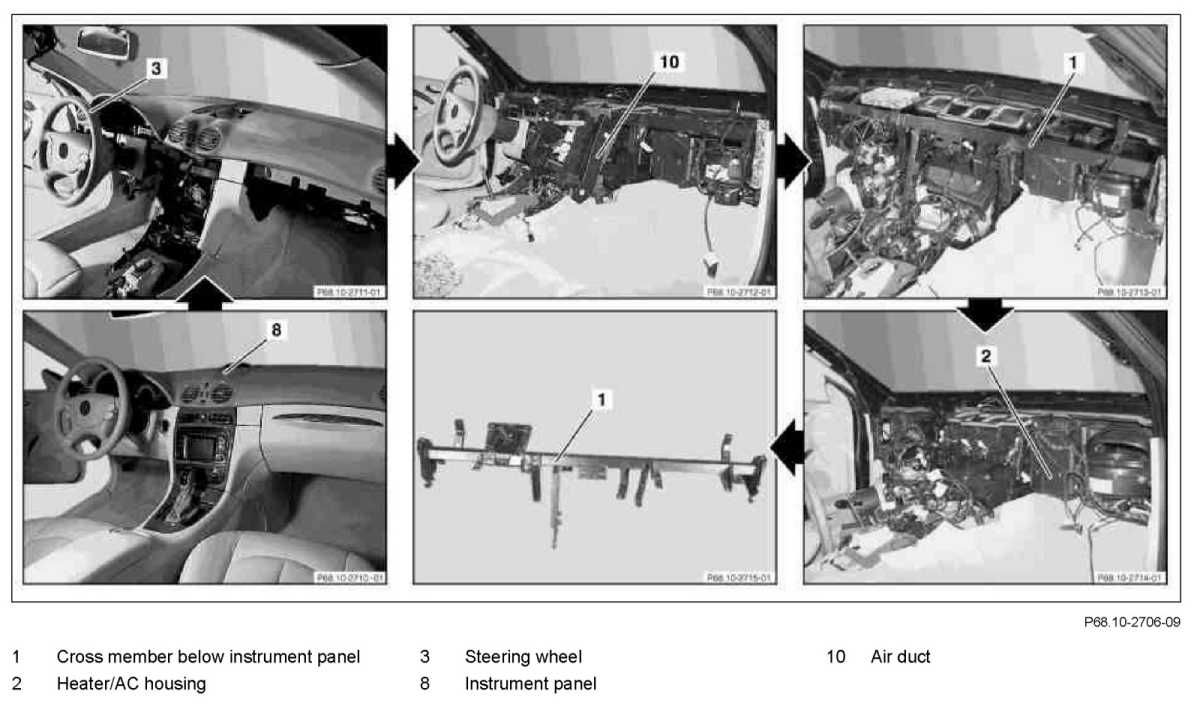

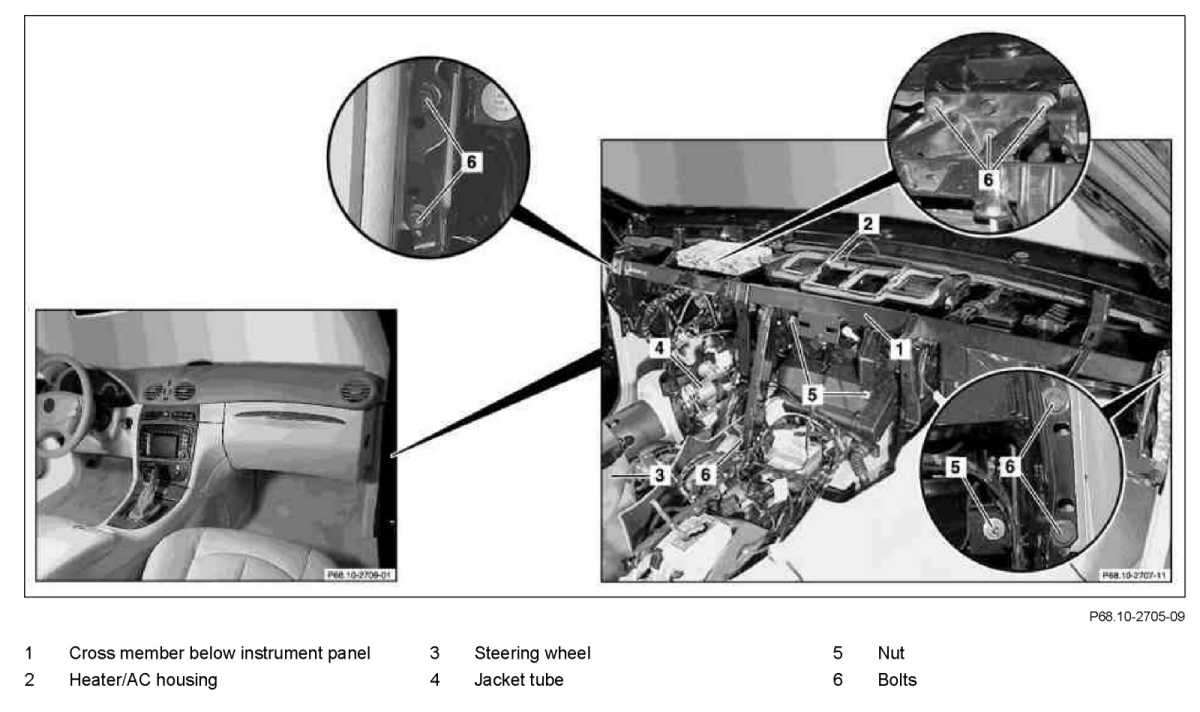

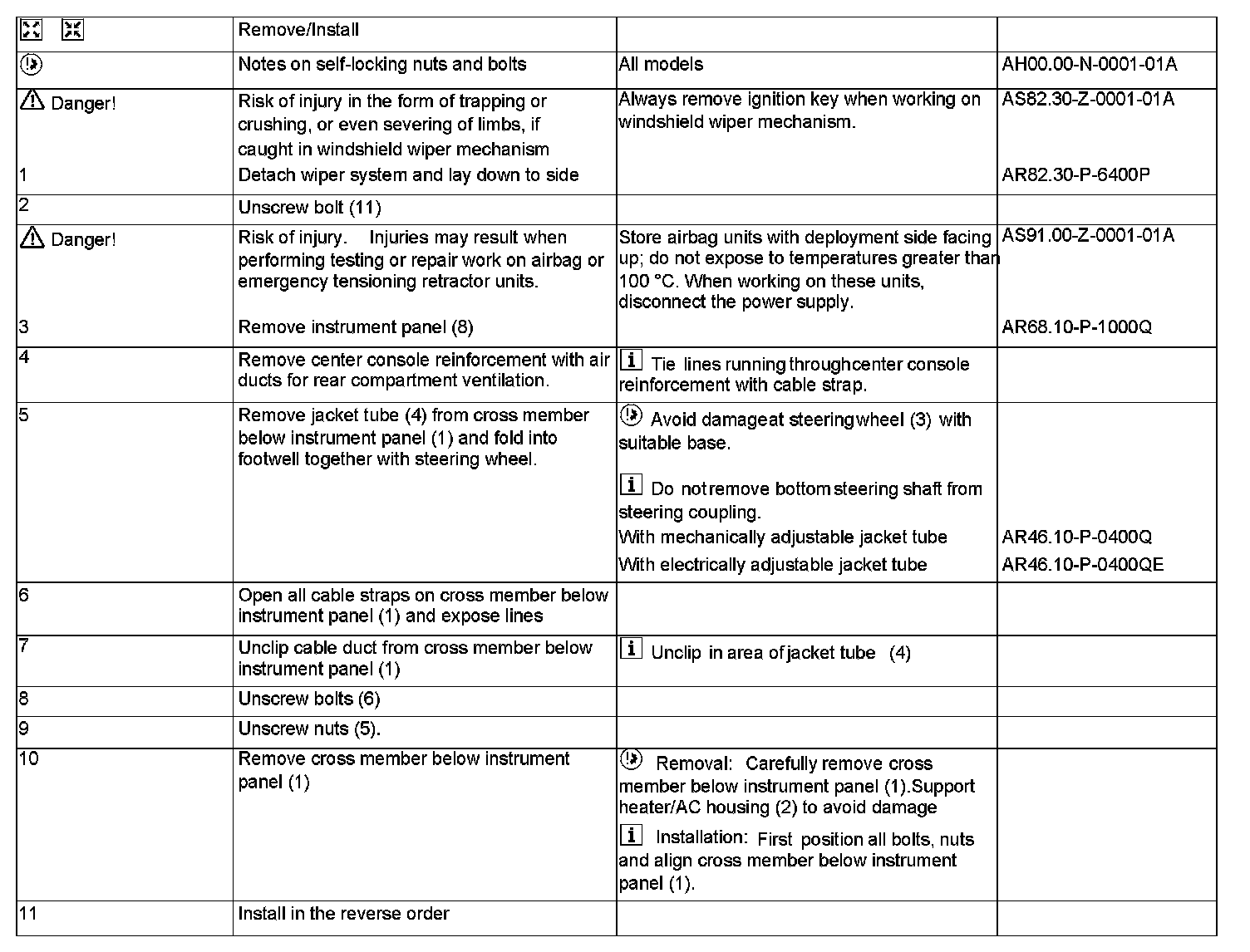

AR68.10-P-1120Q Remove/Install Cross Member Below Instrument Panel
