Home >> Mercedes Benz >> 2004 >> CL 600 (215.376) V12-5.5L Turbo (275.950) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Air Injection >> Air Injection Pump >> Service and Repair

Air Injection Pump: Service and Repair

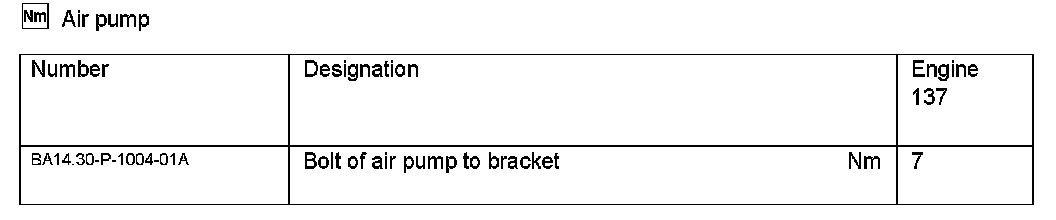

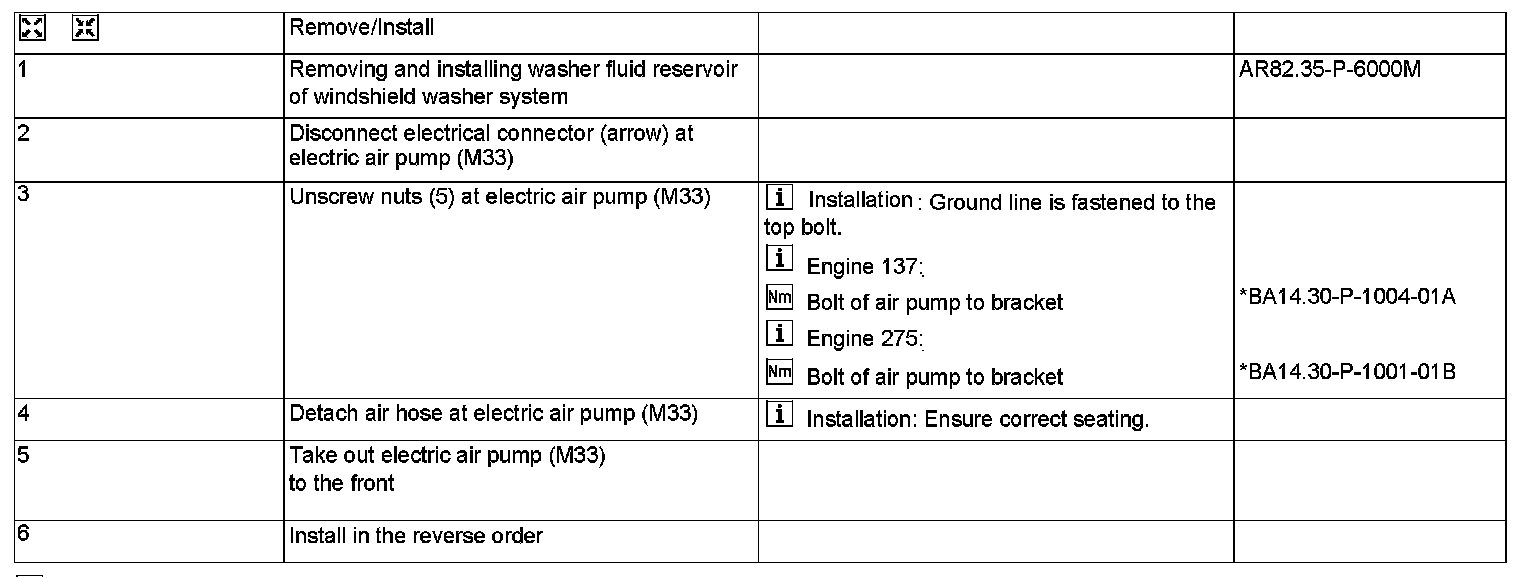

AR14.30-P-7251L Remove/install air pump
