Connector Layout of Data Link Connector - Section 0.3
Connector Layout of Data Link Connector - Section 0.3

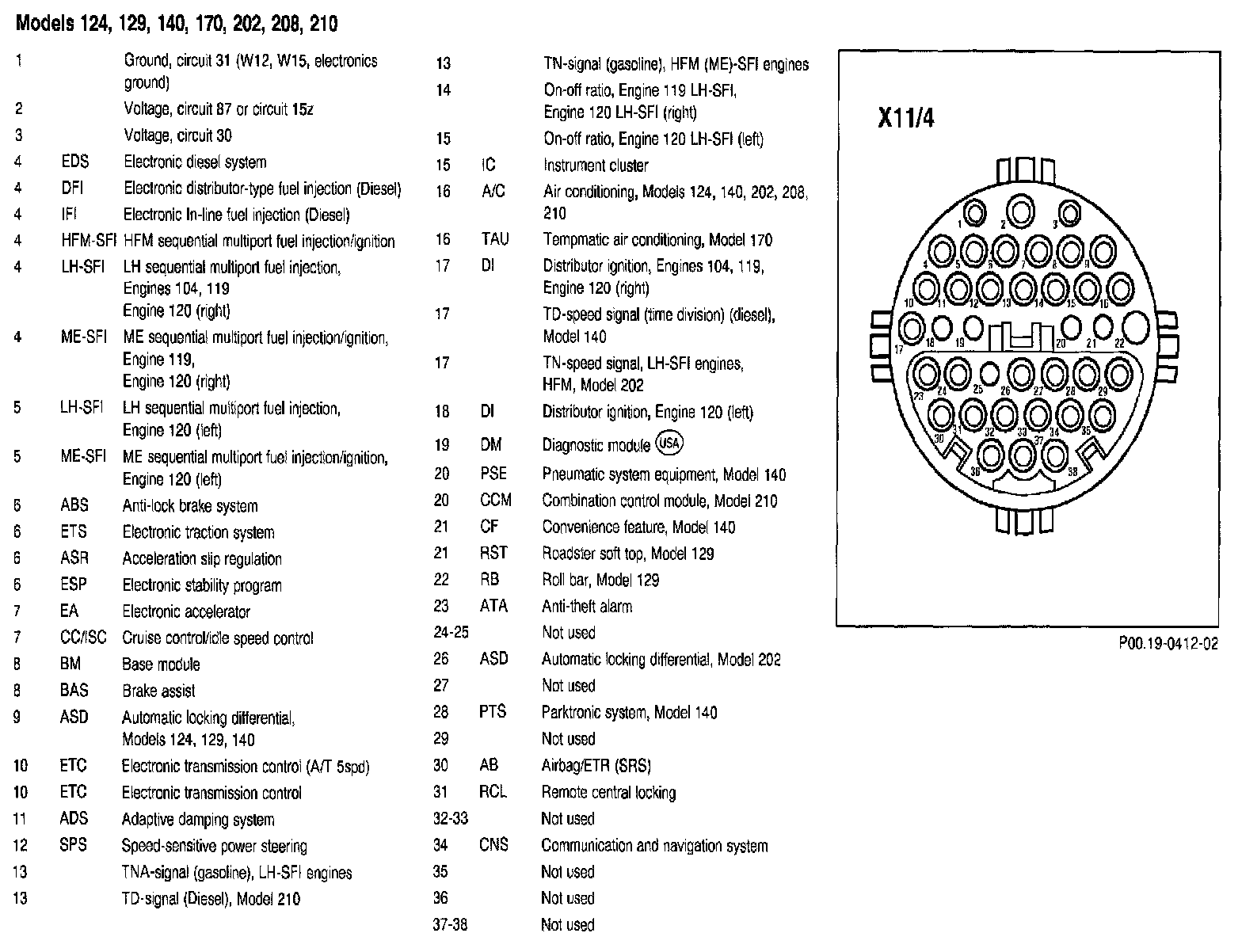

38-Pole DLC (X11/4):
