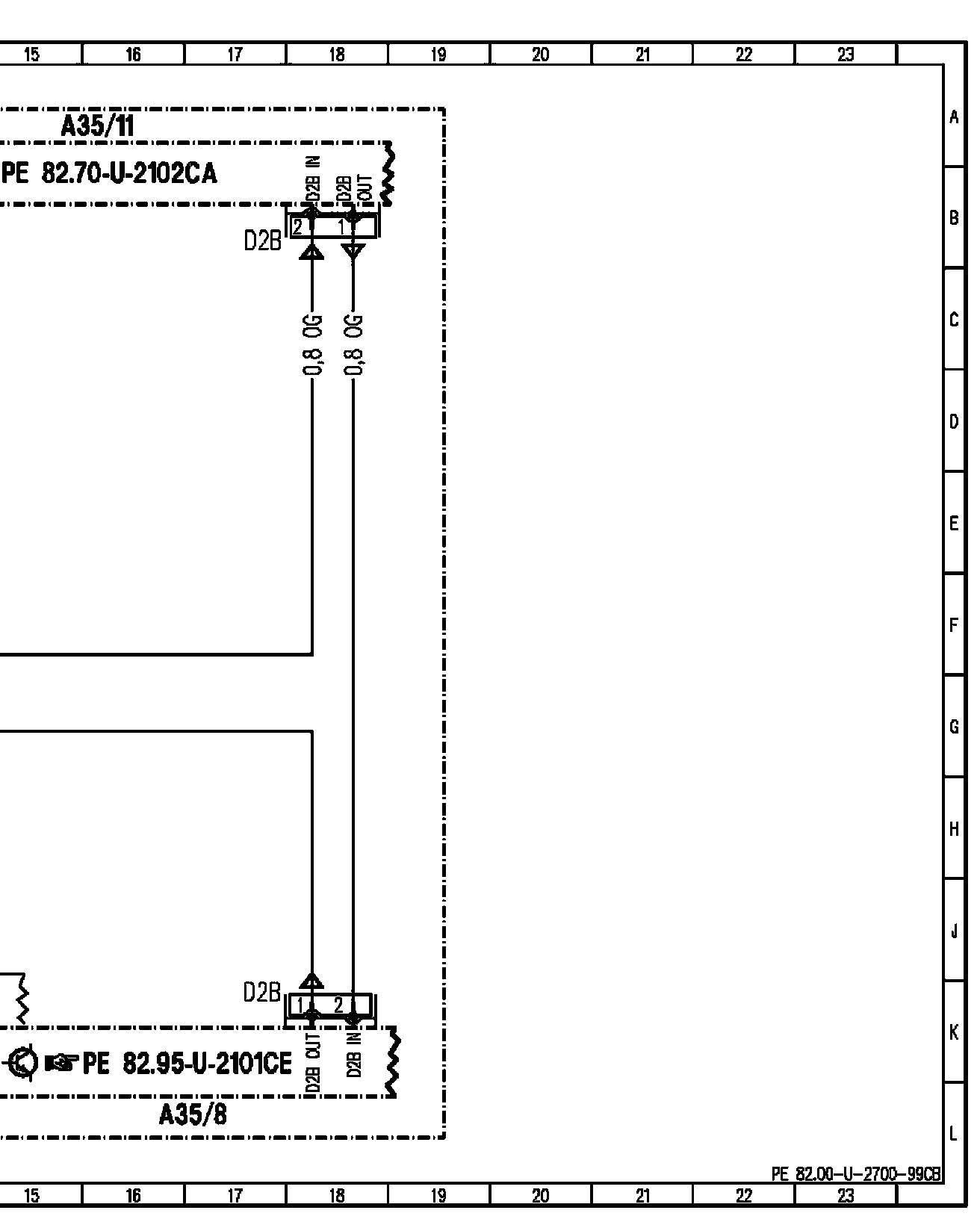

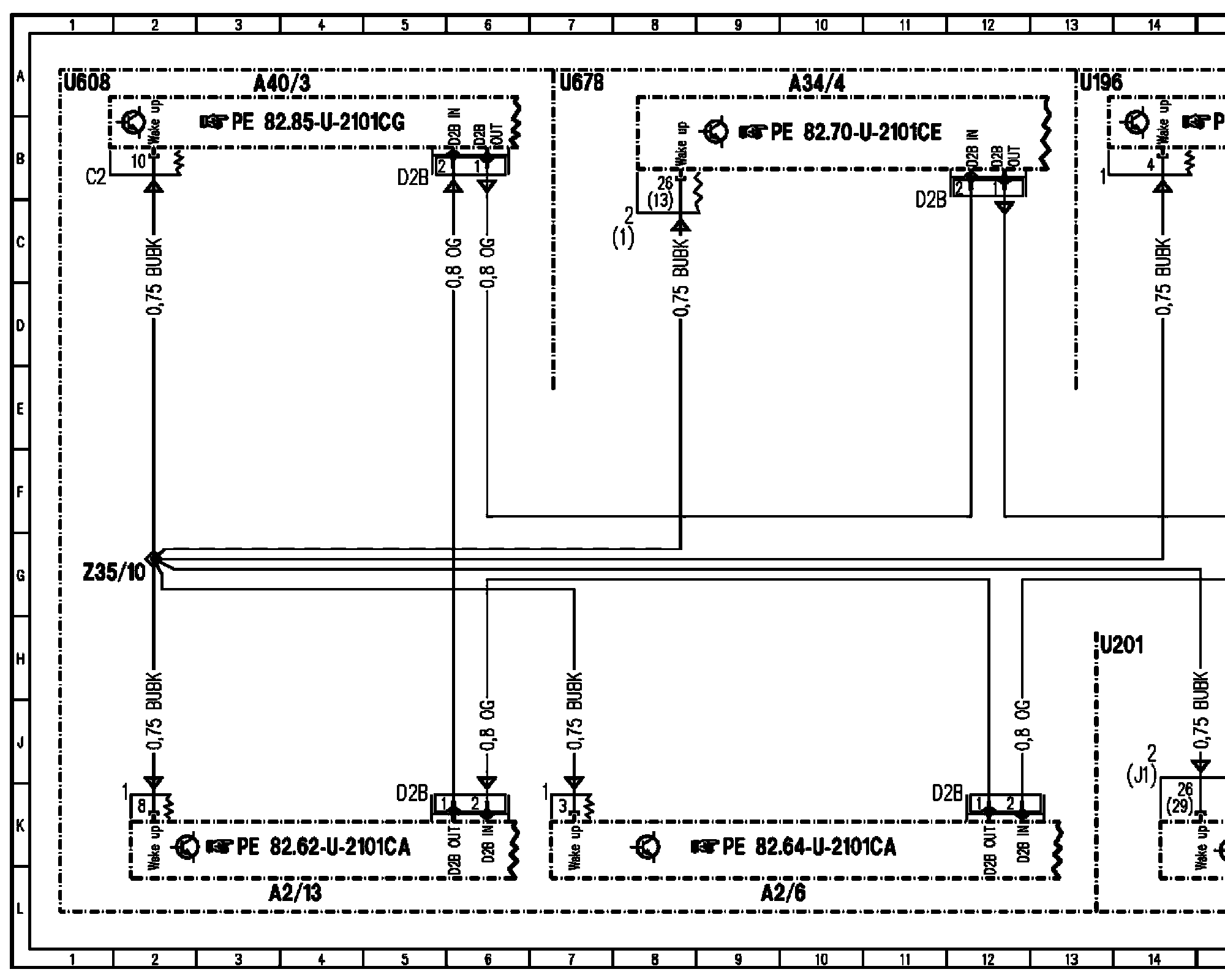

PE82.00-U-2700CB Electric Wiring Diagram, D2 Bus
PE82.00-U-2700CB Electric Wiring Diagram, D2 Bus
PE82.00-U-2700CB Electric Wiring Diagram, D2 Bus
Model 215 as of 09/01/02
