CL 55 AMG (215.374) V8-5.5L SC (113.991)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>

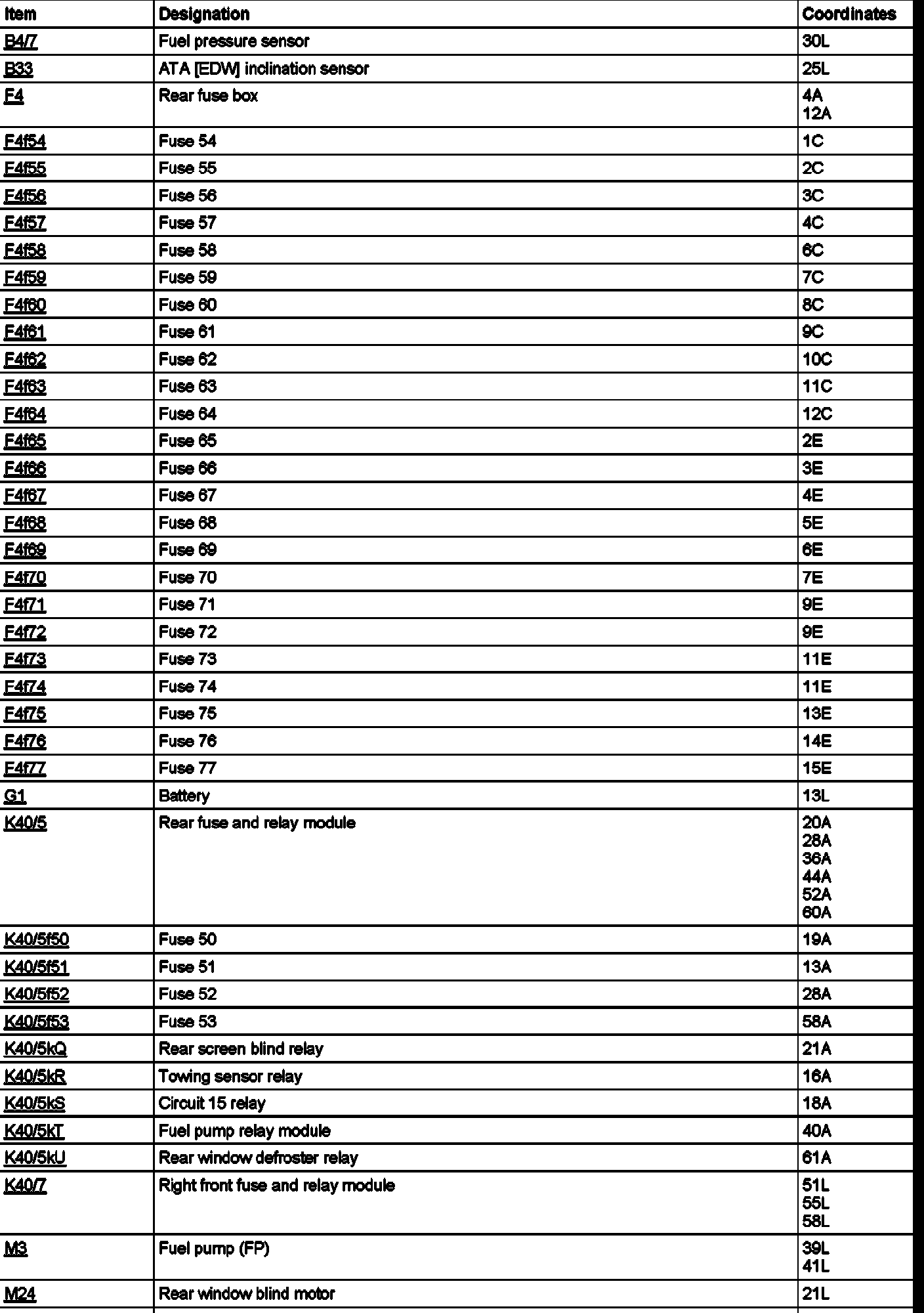

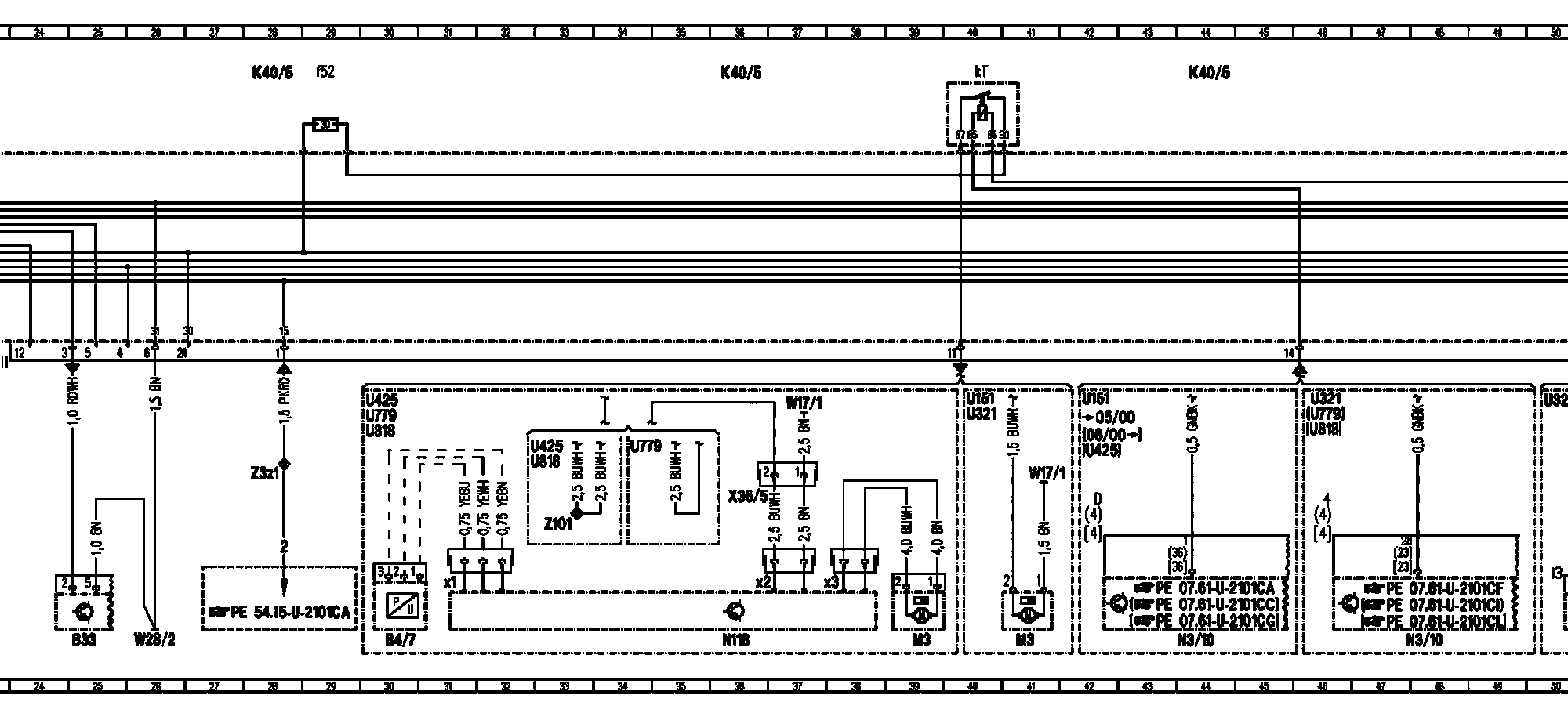

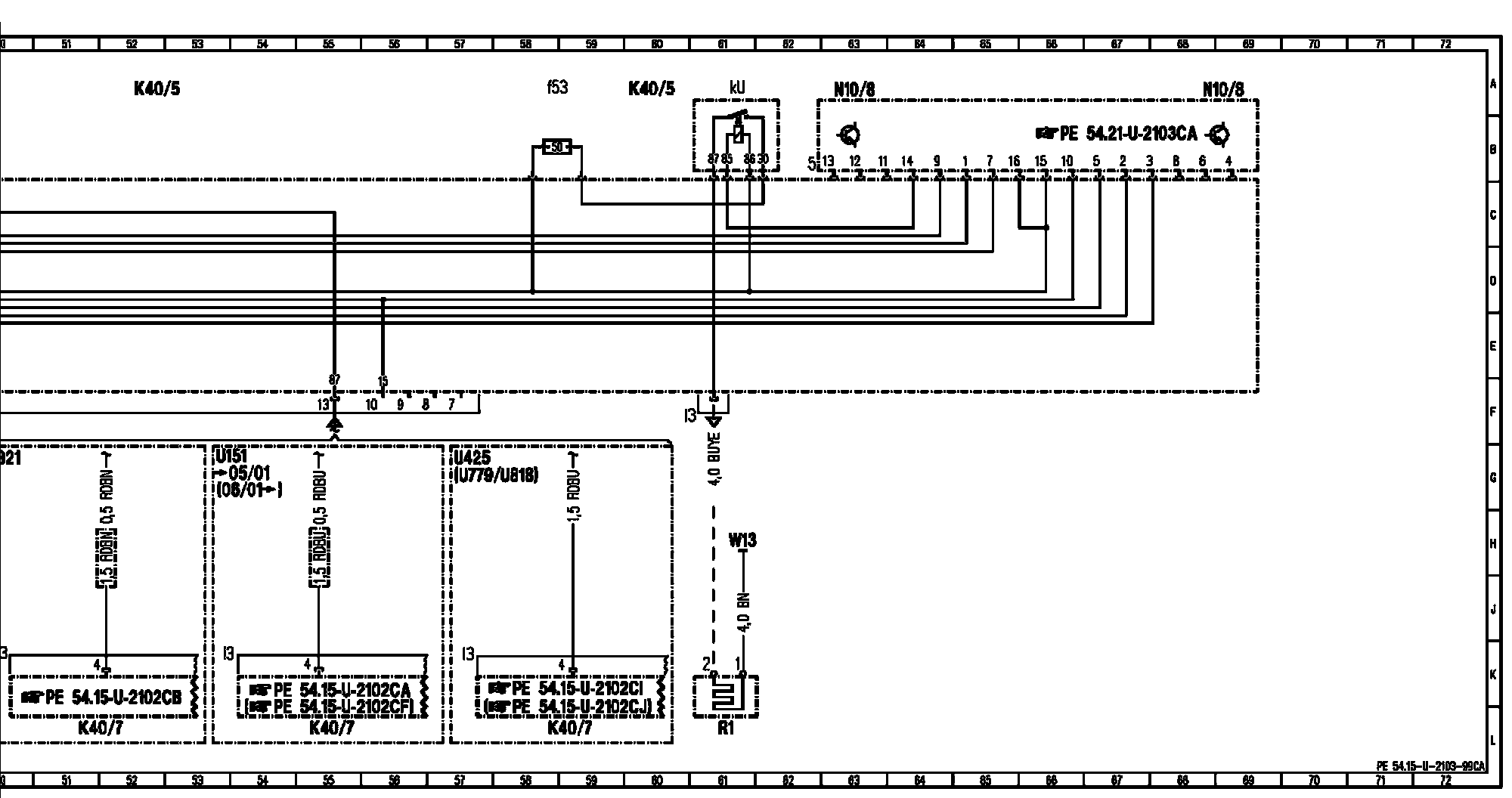

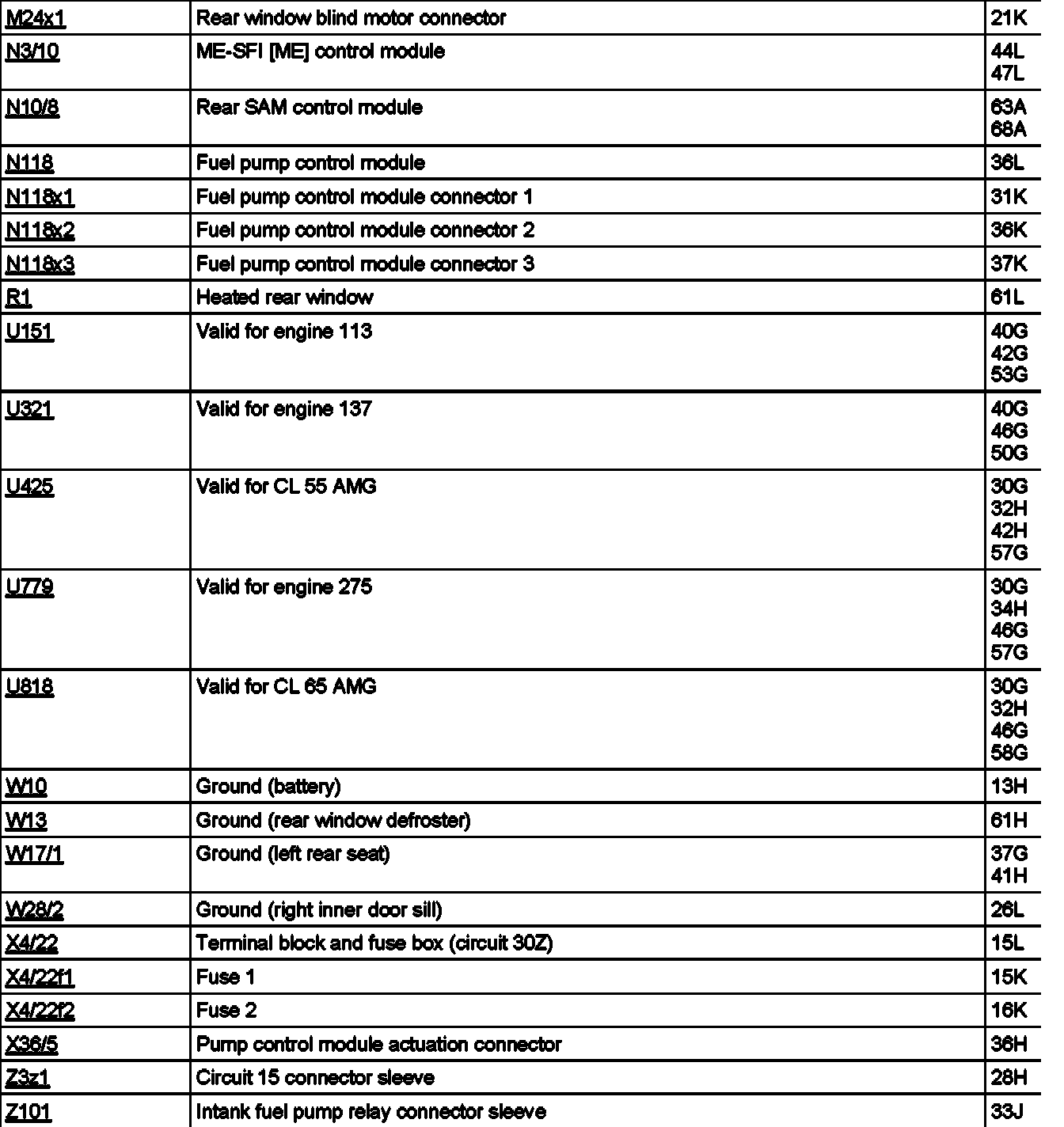

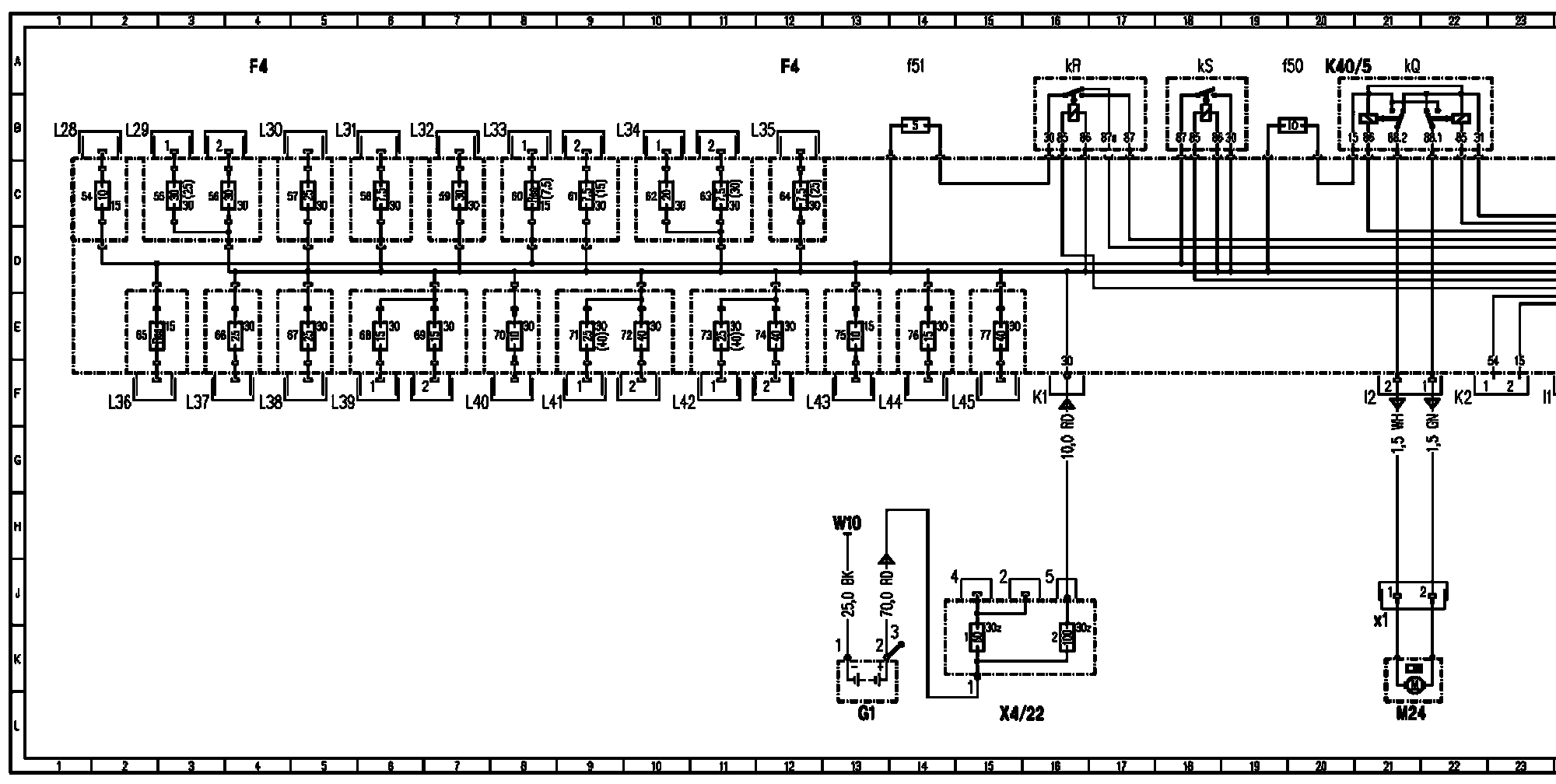

PE54.15-U-2103CA Fuse and Relay Box, Rear
PE54.15-U-2103CA Fuse and Relay Box, Rear
PE54.15-U-2103CA Fuse and Relay Box, Rear
Supply of fuses in rear fuse box
