System Diagram

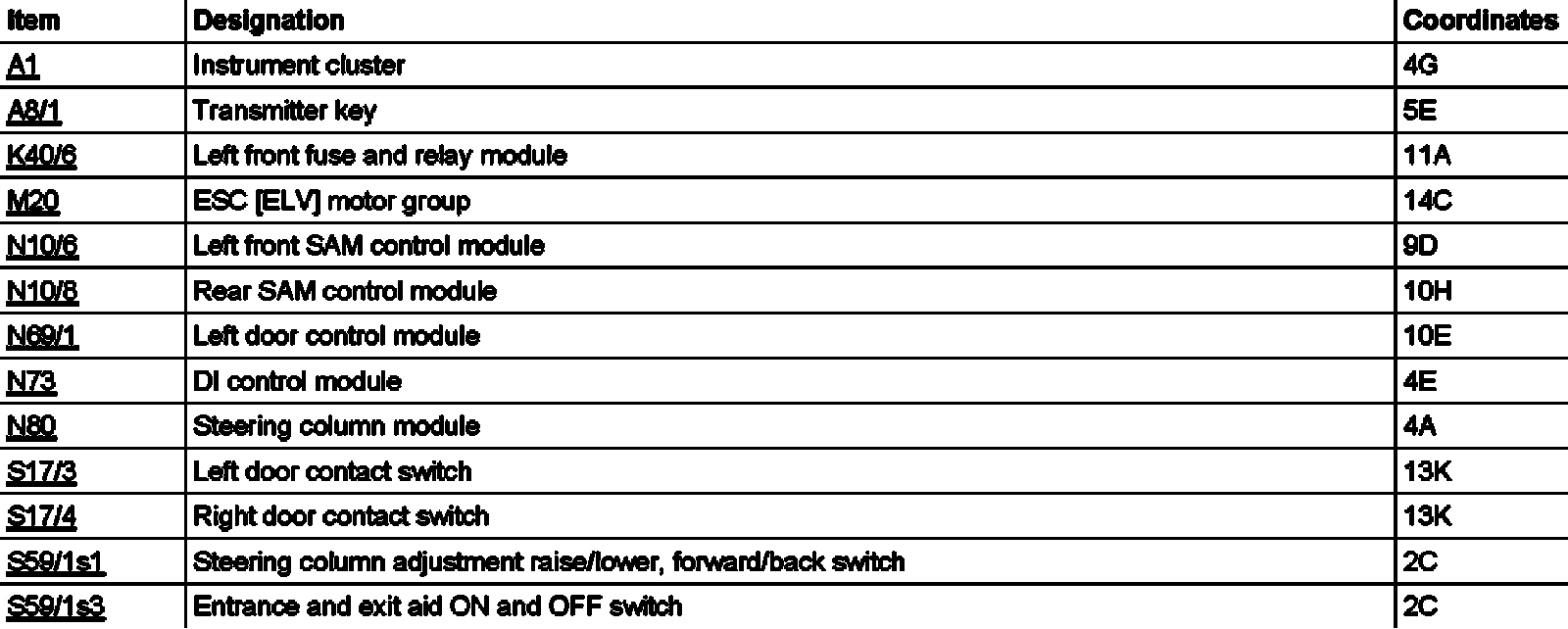

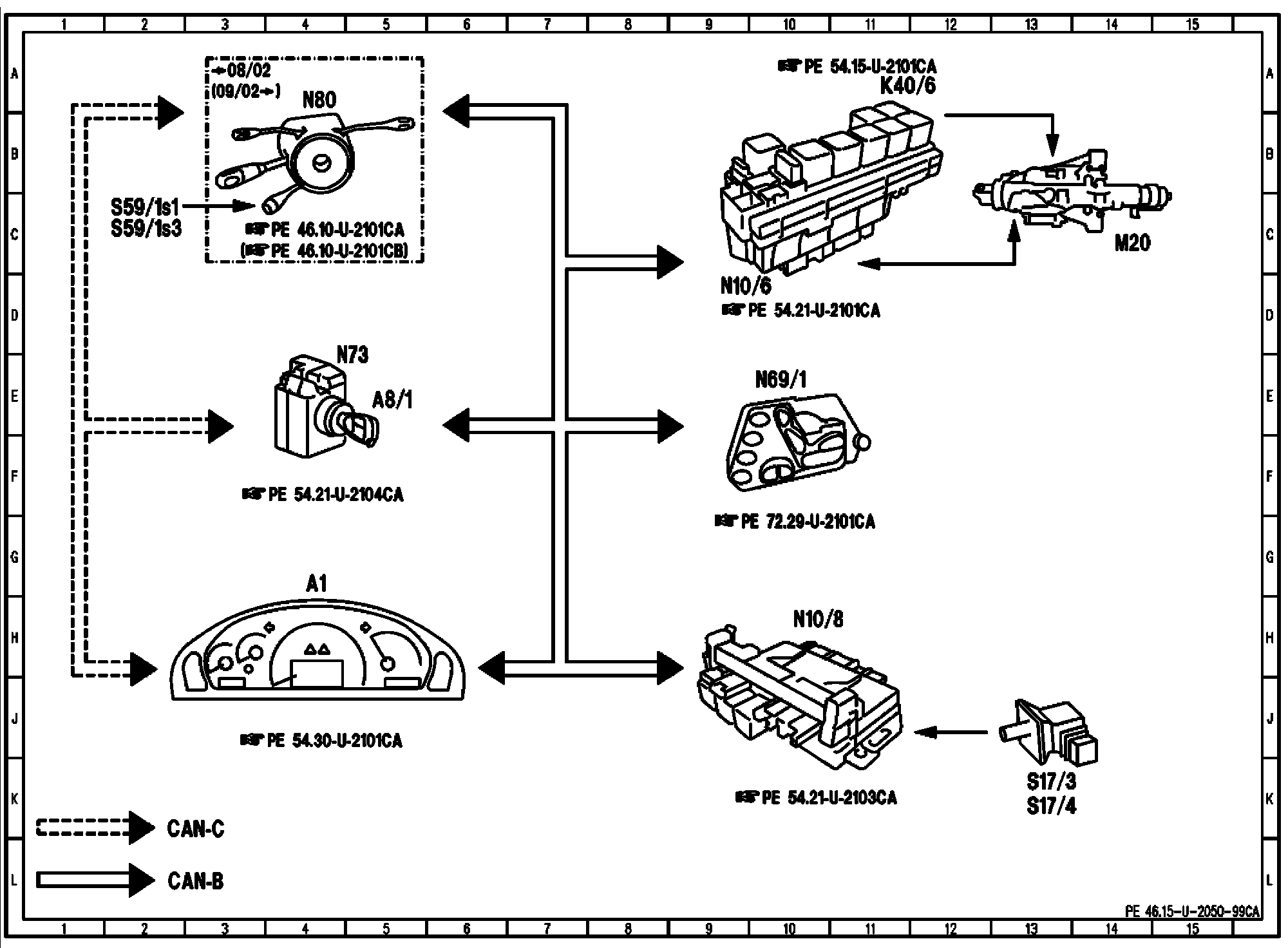

PE46.15-U-2050CA Function Diagram of Electrical System For Steering Column Adjustment
Model 215
