Mercedes Benz
>>
2004
>>
CL 55 AMG (215.374) V8-5.5L SC (113.991)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Fuel Pump
Fuel Pump
PE47.20-U-2100CA

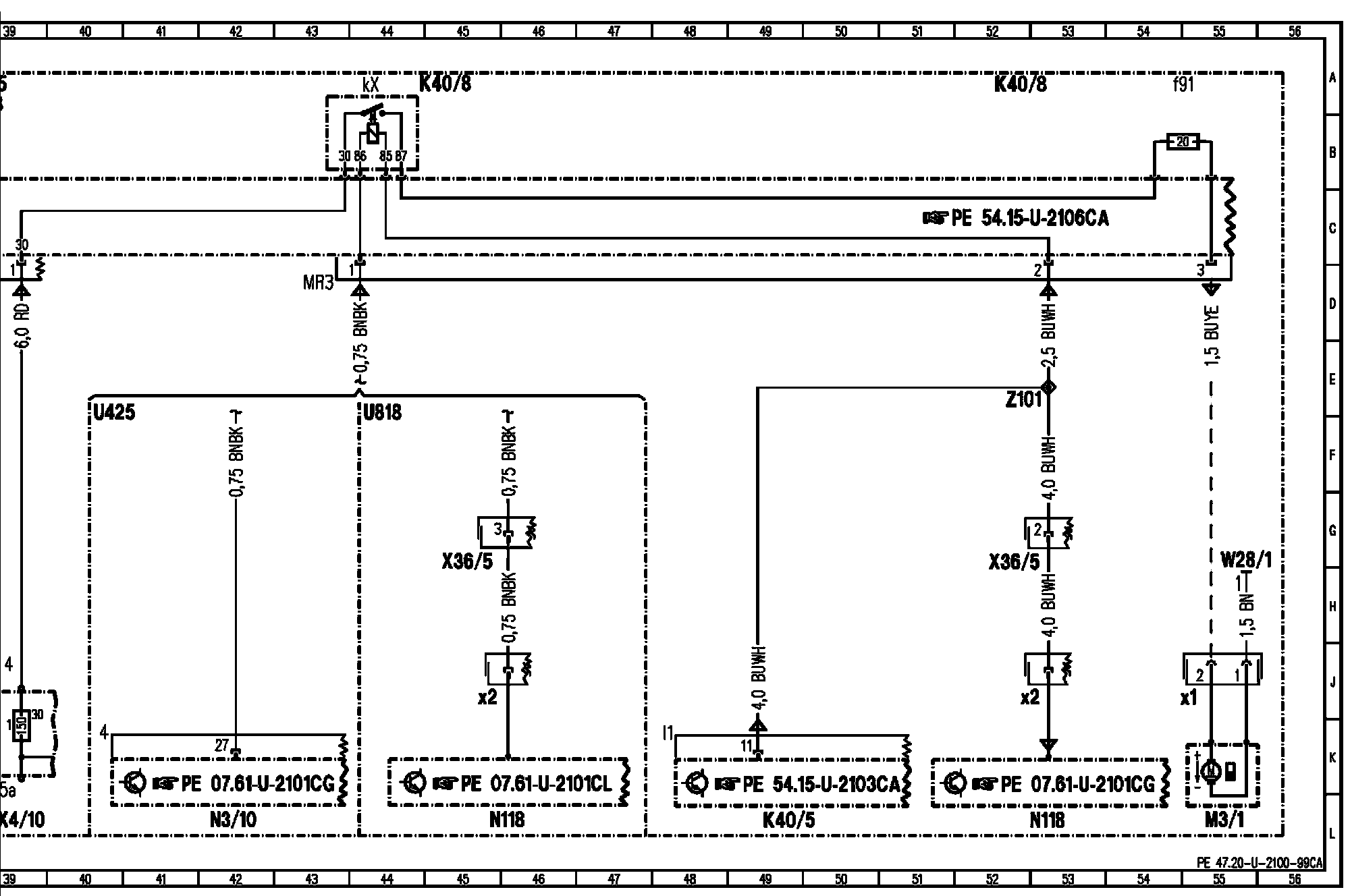

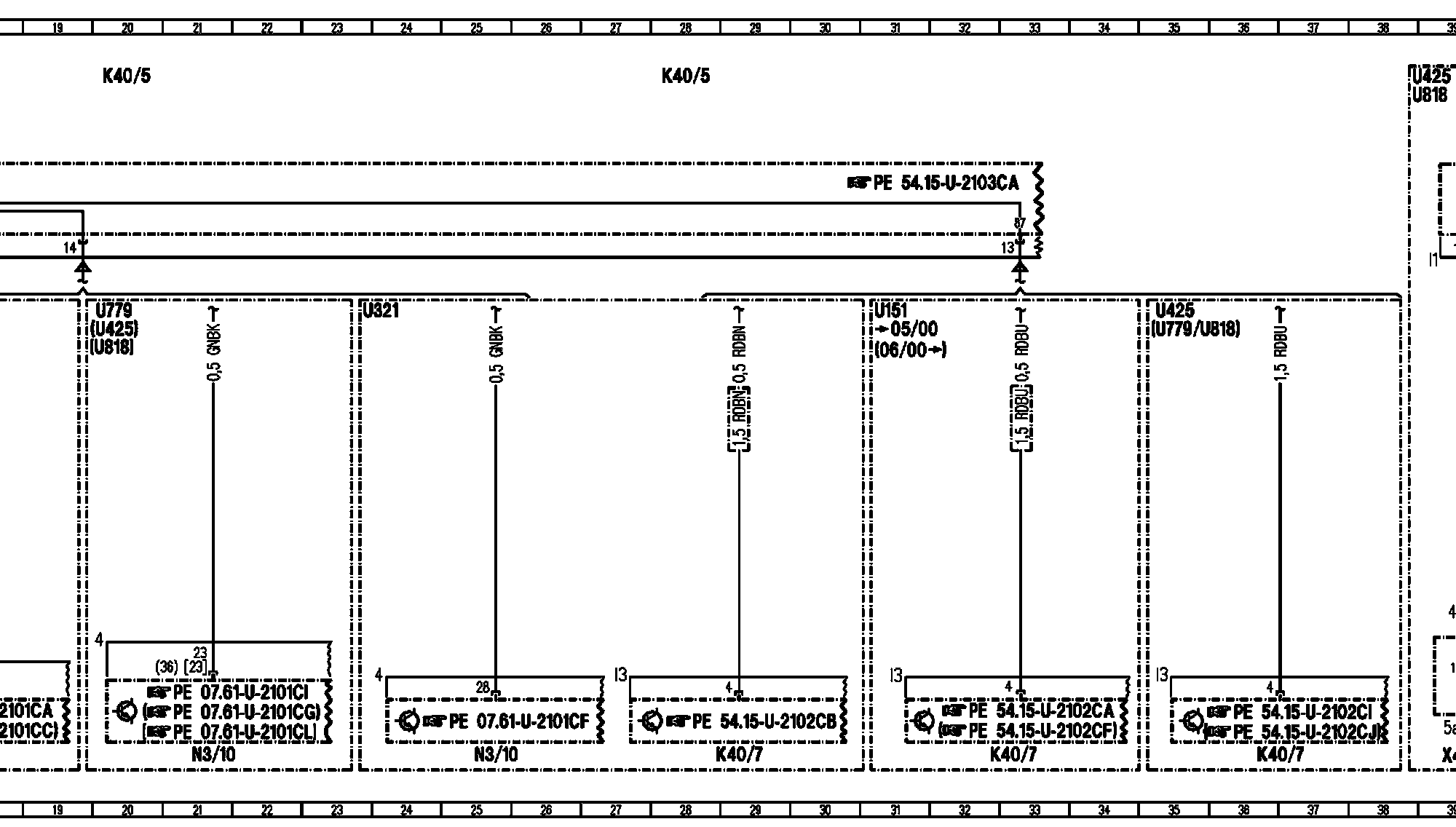

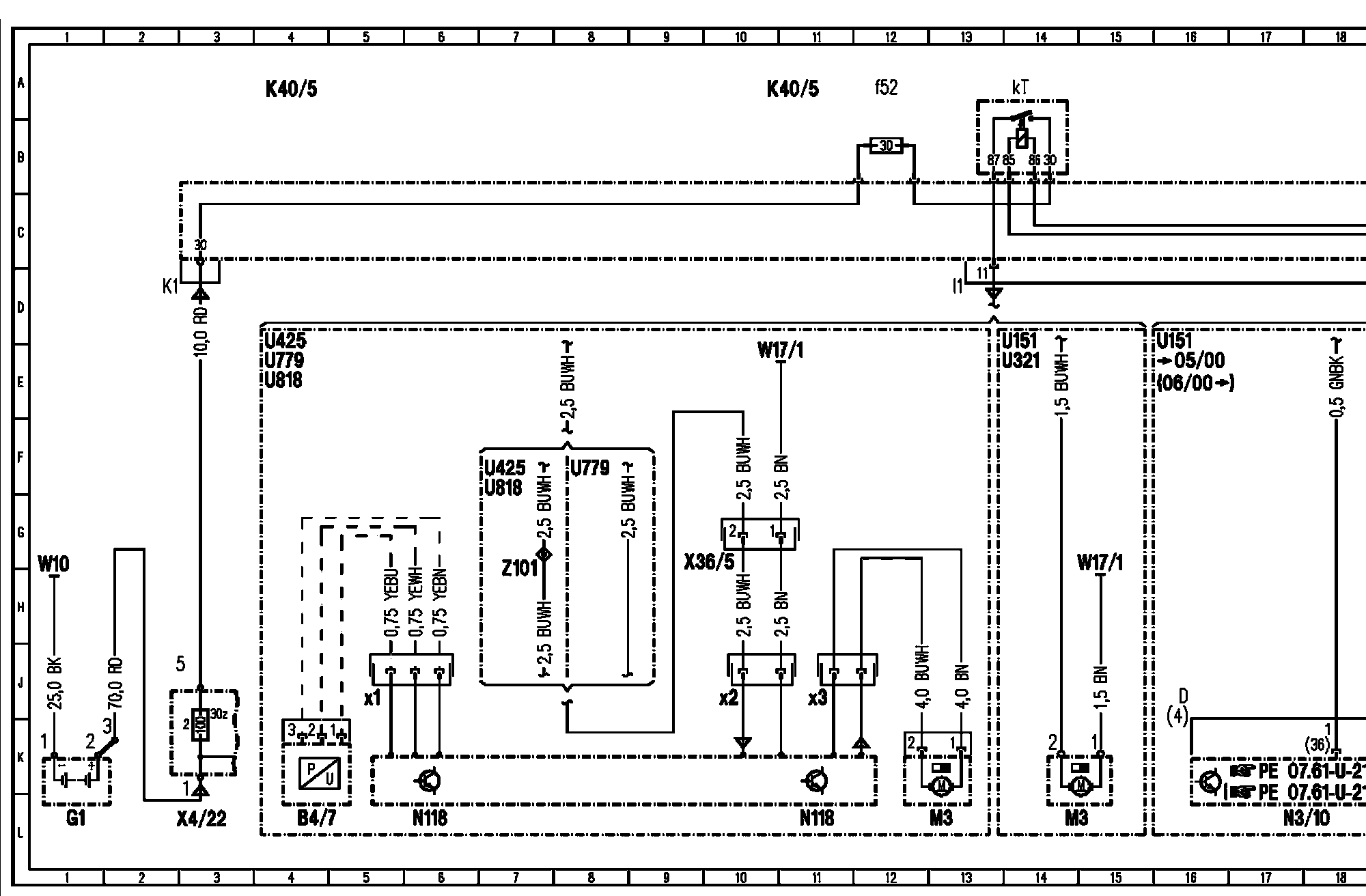

Fuel Pump
