Transmission Mount: Service and Repair

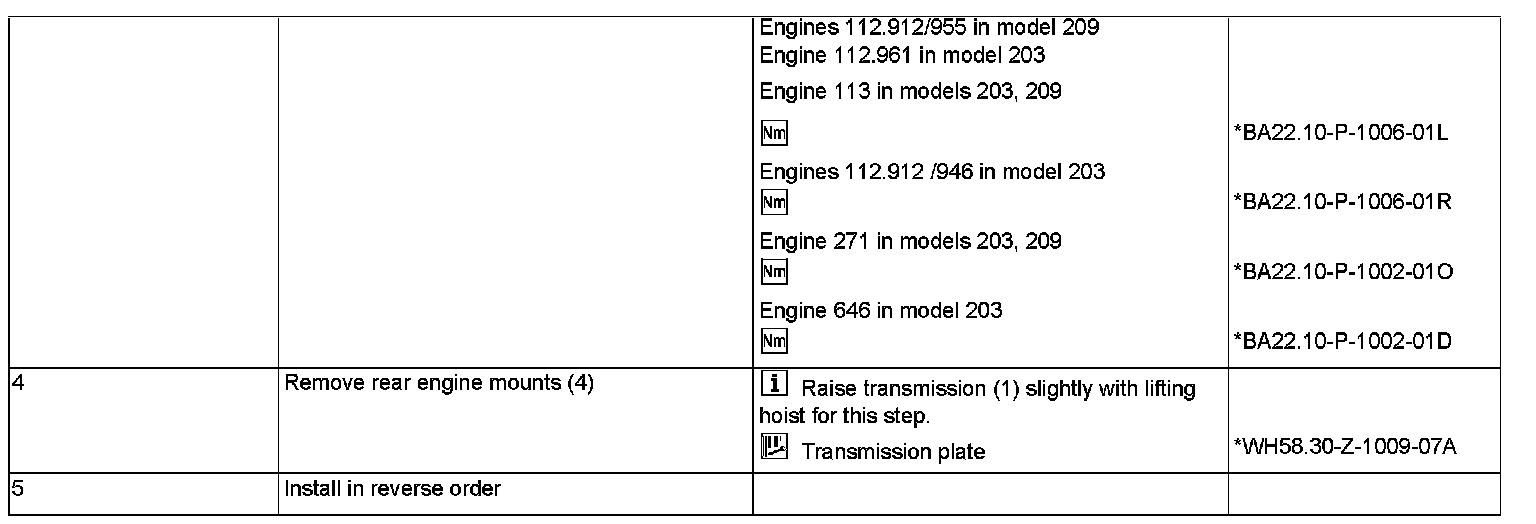

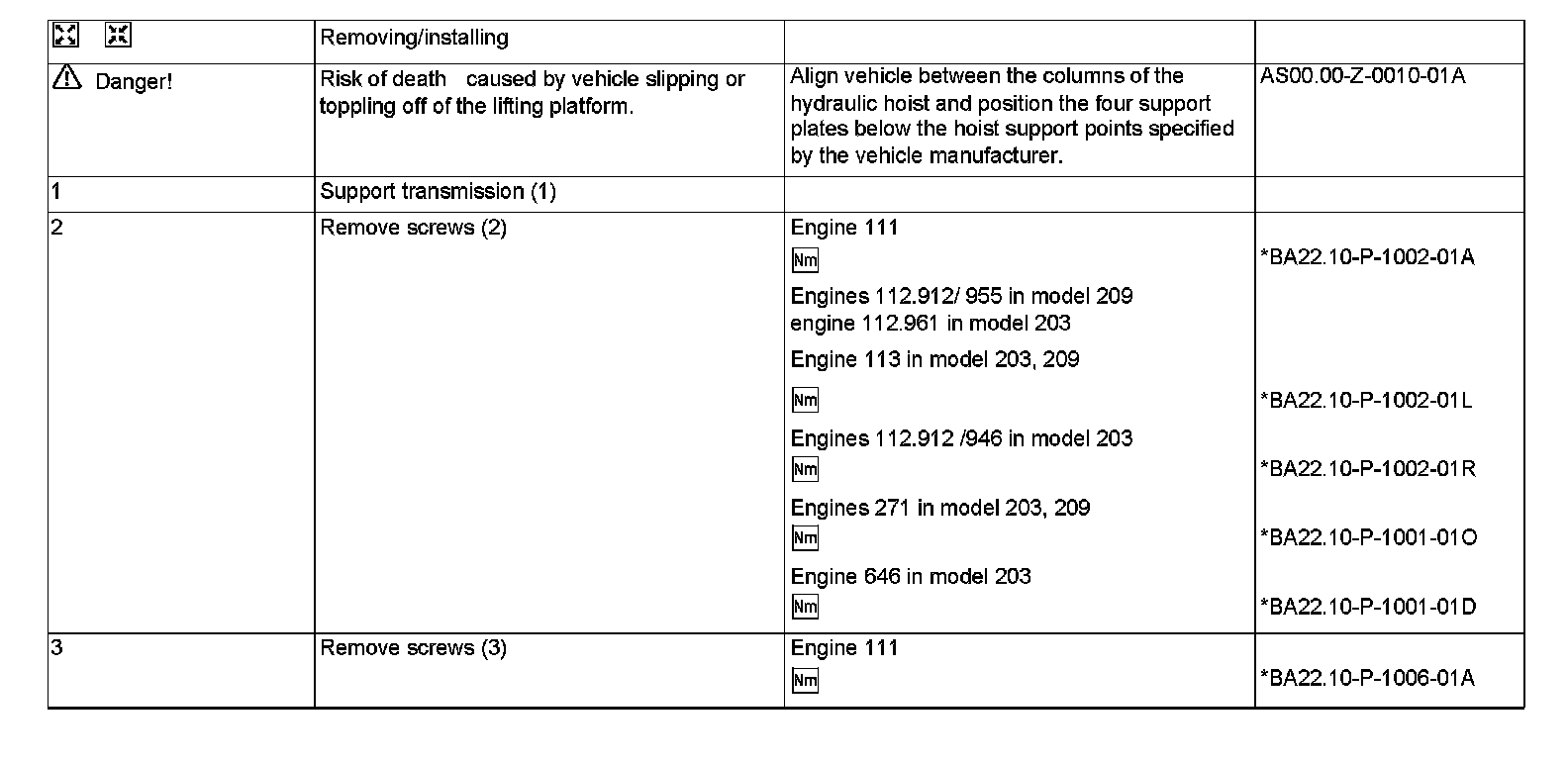

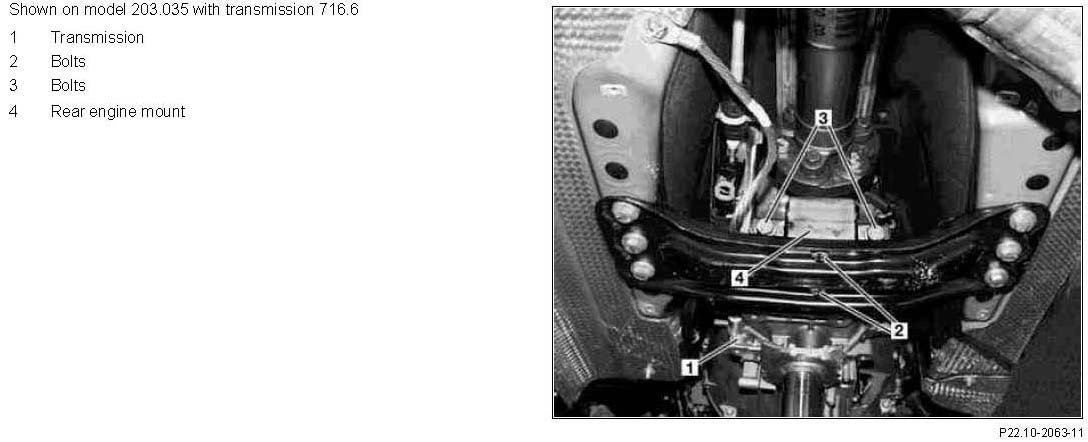

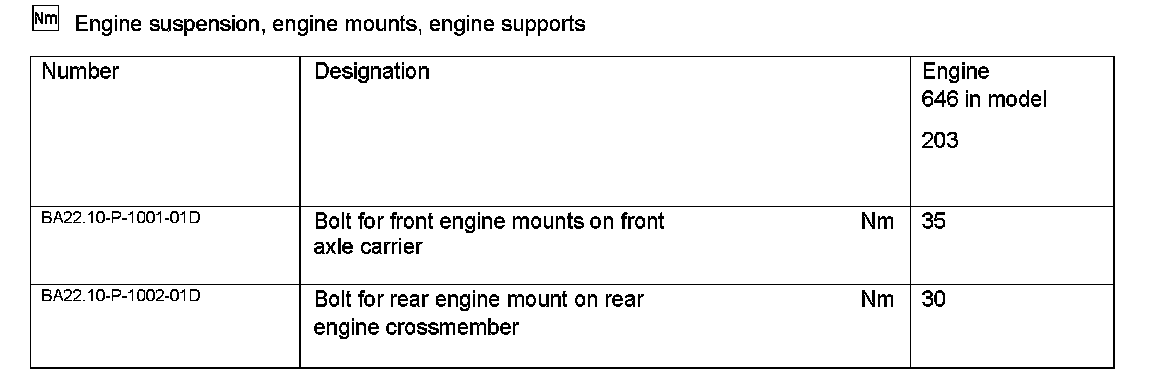

Removing/installing rear engine mount

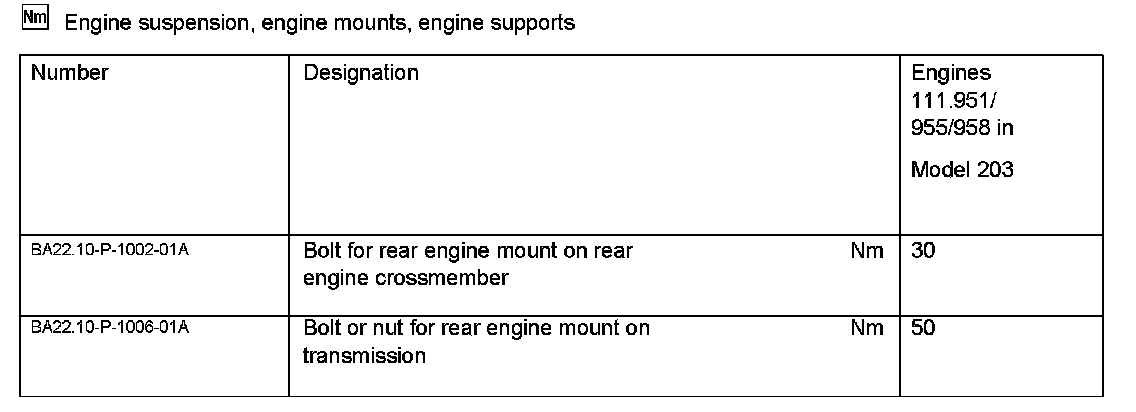

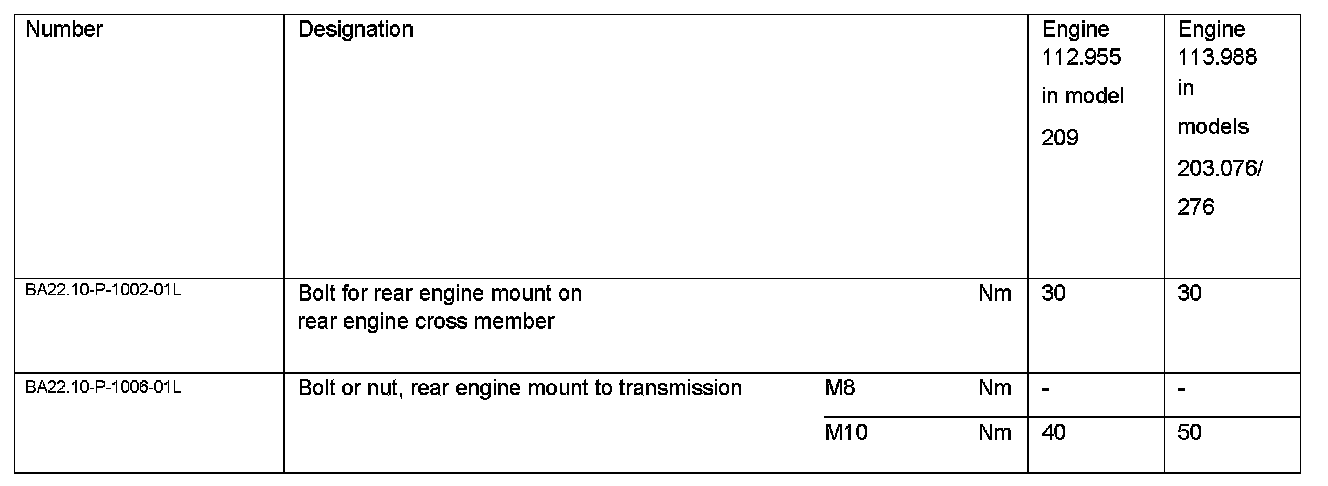

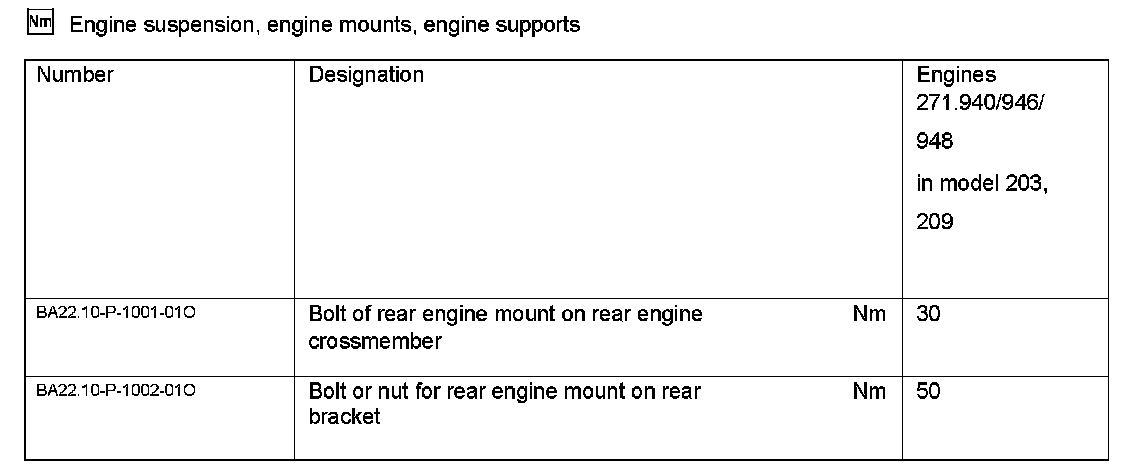

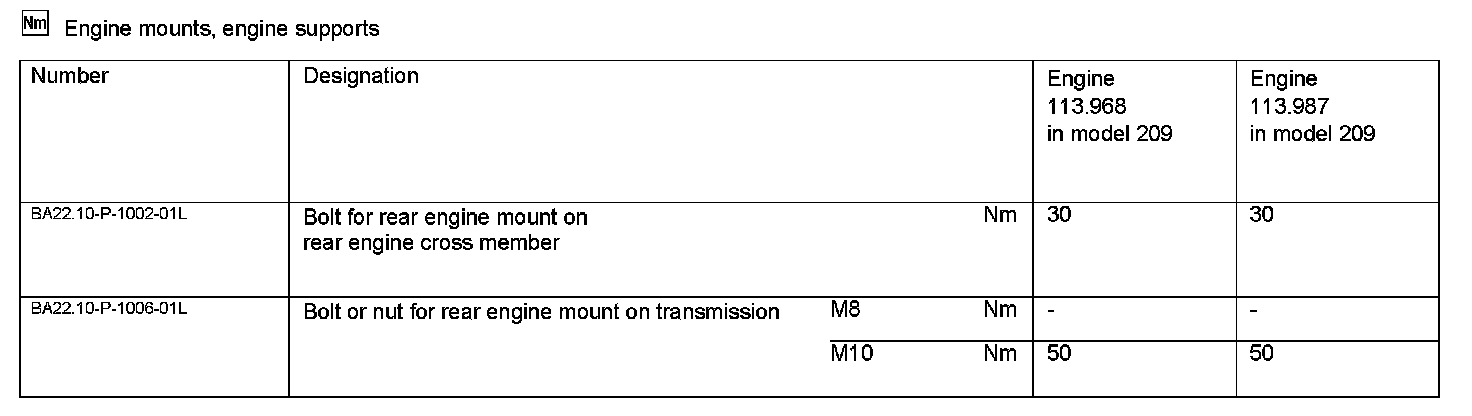

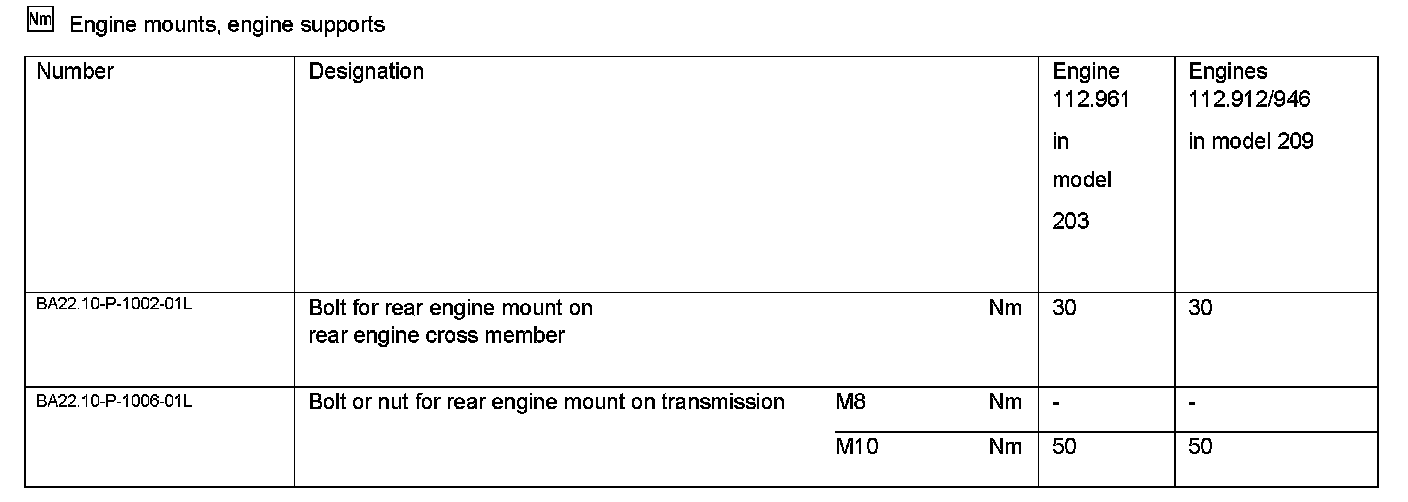

Engine mounts, engine supports:
