Campaign - Panoramic Roof Wind Deflector Update

FILE:
SERVICE: GROUP 00 OF SERVICE INFORMATION BINDER
PARTS: GROUP I OF INFORMATION _ PARTS & ACCESSORIES BINDER

Campaign No. 2005090017
October 2005

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT:
MODEL 203.7 MODEL YEAR 2004
REPLACE WIND DEFLECTOR LINKAGE FOR PANORAMIC ROOF

This Service Campaign has been initiated because DCAG has determined that on the affected vehicles (see VIN range below) the wind deflector linkage may not perform properly on rough roads in high temperatures. Dealers will replace the wind deflector linkage with an updated part.

Please review the Effective Serial Number chart located below and if necessary repair the subject vehicles during the vehicle's next service.

Prior to performing this Service Campaign:

^ Please check VMI to insure the vehicle is involved and to determine if the vehicle has been previously repaired.

Please review the entire Service Campaign bulletin.

Approximately 216 vehicles are affected.

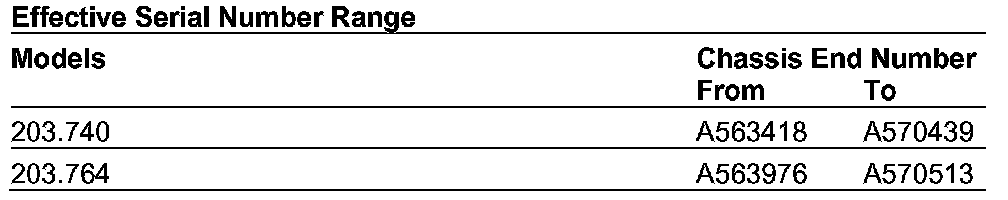

Effective Serial Number Range

Note:
Every vehicle in the VIN range may not be included in the campaign. VMI must always be checked before performing campaigns to verify that the campaign is required on a specific vehicle. VMI always overrides the bulletin in reference to a specific vehicle's inclusion in a particular campaign. Please also note that Recall and Service Campaigns do not expire and may also be performed on a vehicle with a vehicle status indicator.

Procedure

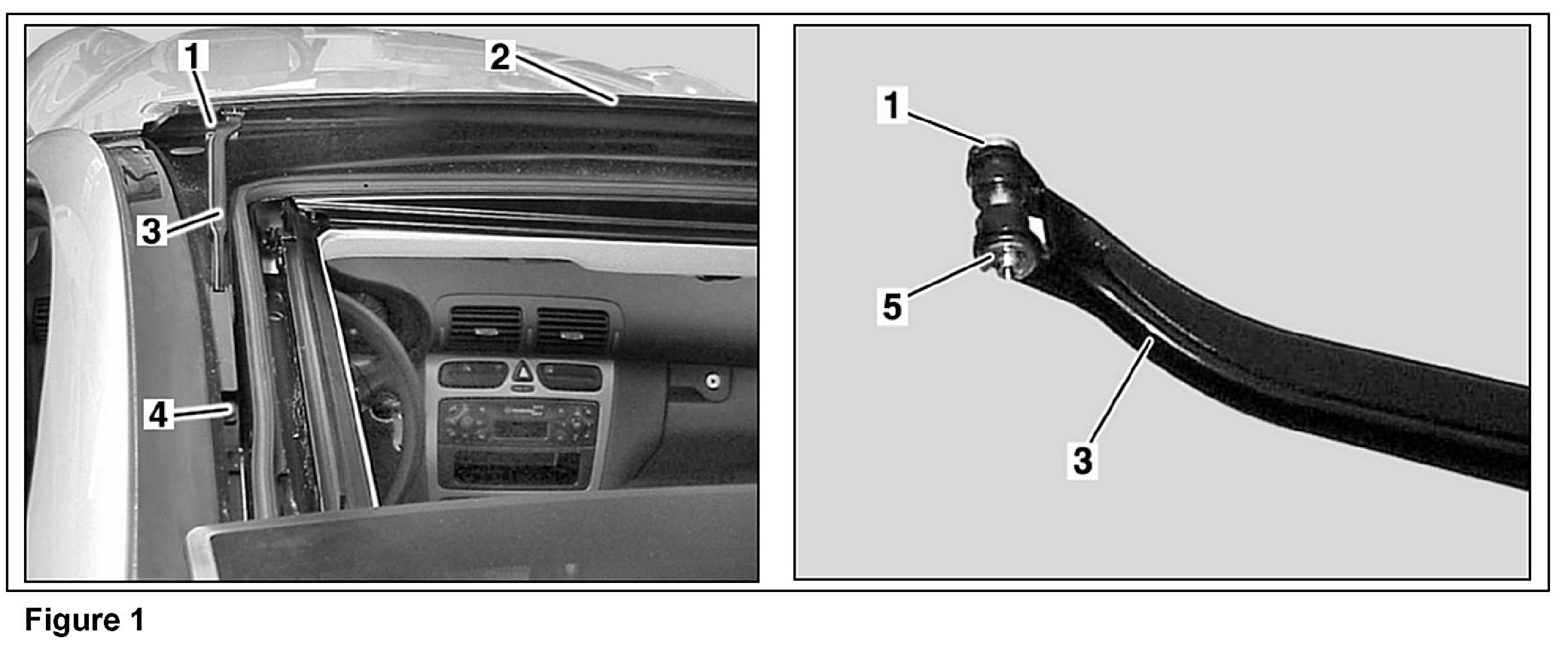

1. Open panoramic roof.





2. Remove e-clip (5, Figure 1).

3. Remove bolt (1, Figure 1).

4. Remove screw (4, Figure 1) from linkage (3).

Note:
Linkage is under spring tension.

5. Move linkage (3, Figure 1) toward front of vehicle.

6. Remove linkage (3, Figure 1) from wind deflector (2).

7. Install new linkage in reverse order.

Note:
Re-Install bolt with bolt head toward center of vehicle and groove toward the outside.

8. Repeat procedure on opposite side.





Primary parts Information

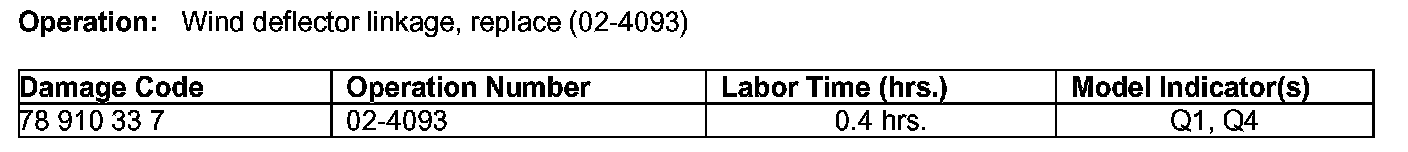

Warranty Information

Note:
^ Please be aware that only the part number(s) referenced in the Campaign Bulletin is/are approved for use to repair the vehicle. Repairs performed using any other part(s) will not have been performed in accordance with the campaign. Accordingly, warranty claims submitted with reference to an improper part number(s) will be denied.





^ The allowable labor operation shown should be used when submitting a warranty claim for this repair.
