Mercedes Benz
>>
2004
>>
C 230 CL (203.740) L4-1.8L SC (271.948)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Alternator Pulley / Clutch
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR15.40-P-5710P Remove/install
alternator
belt pulley

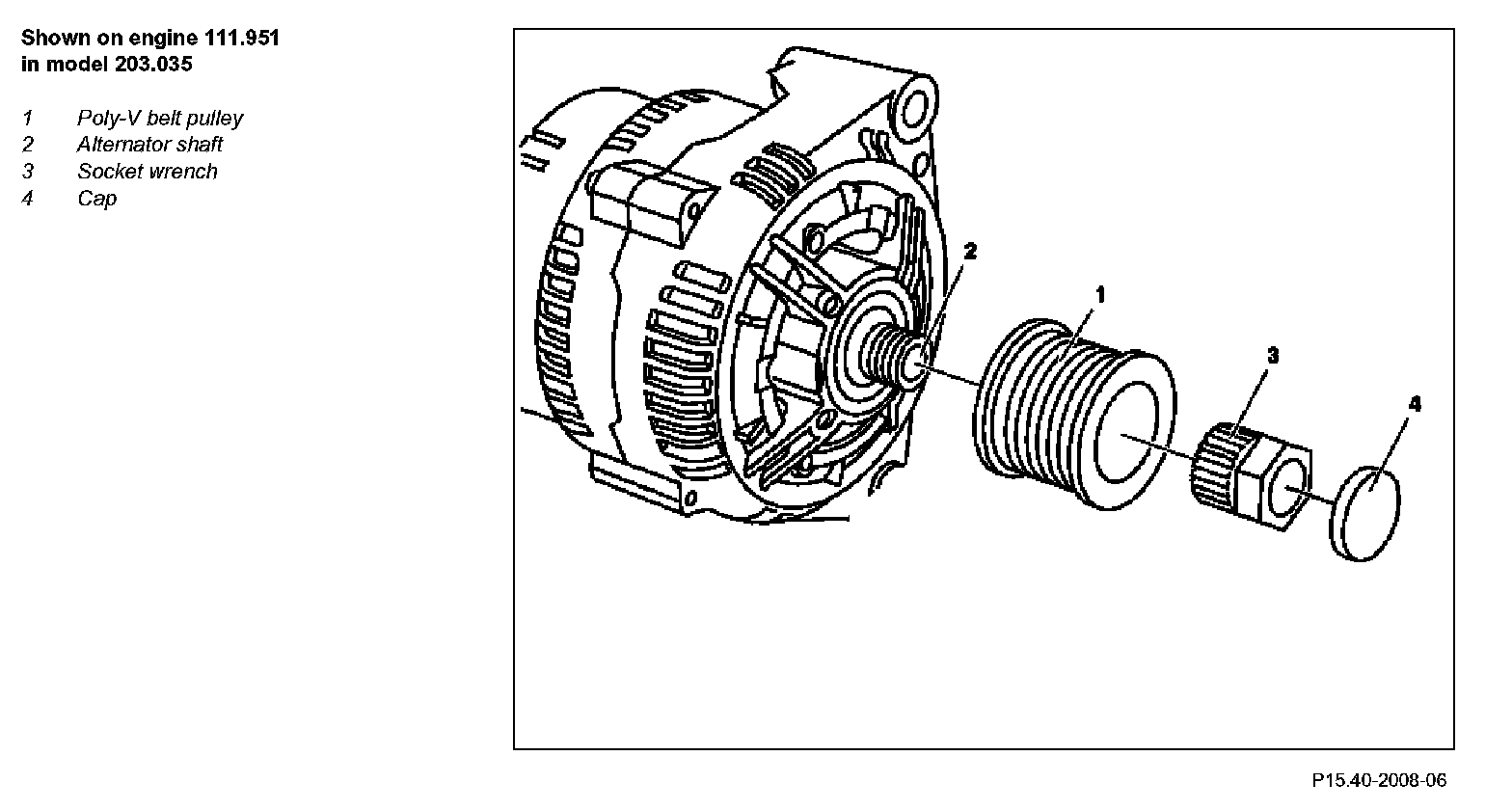

Component Identification:

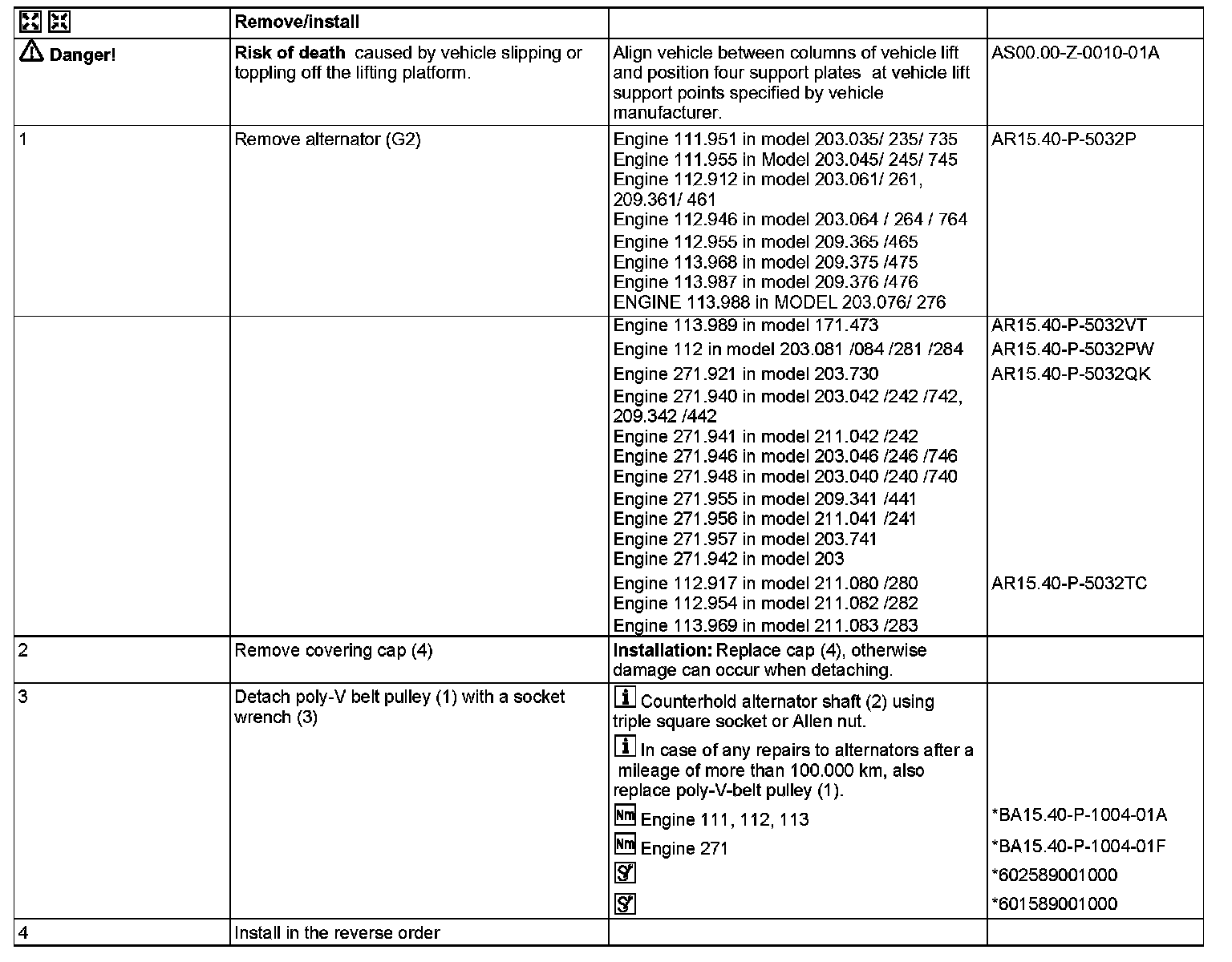

Steps 1-4:

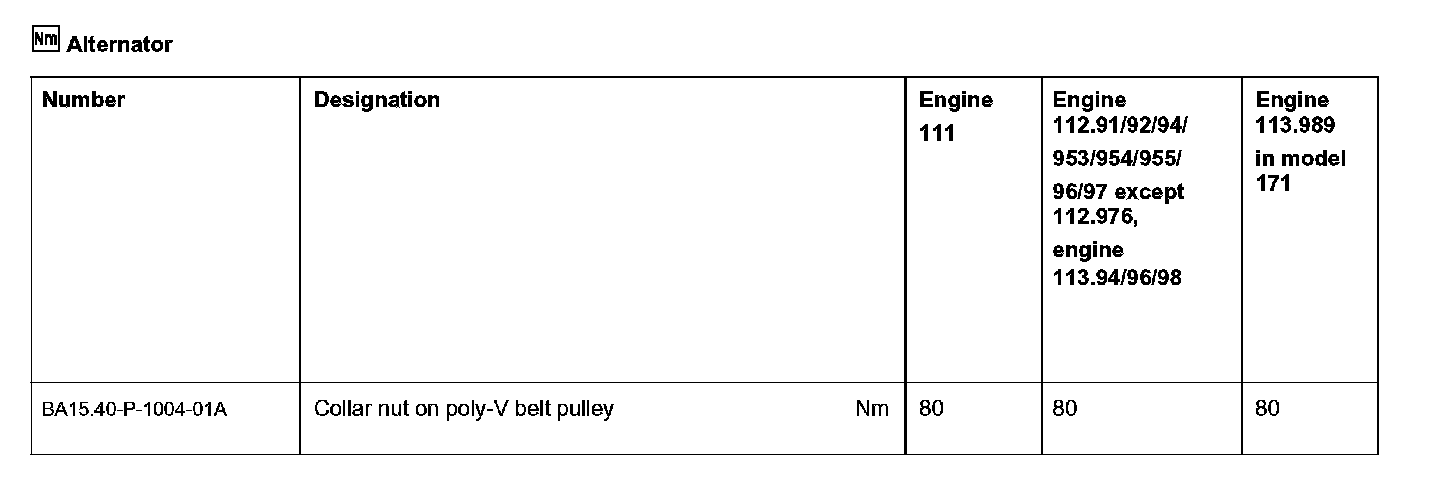

Alternator:

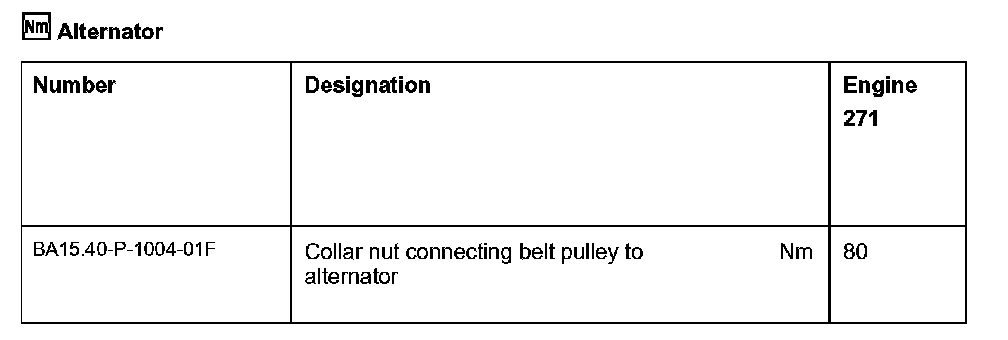

Alternator:
Special Tools:
