BE35.31-P-1000-04E Test Values For Rear Axle Housing Expansion



BE35.31-P-1000-04E Test values for rear axle housing expansion
- Rear axle center assembly dia. 187

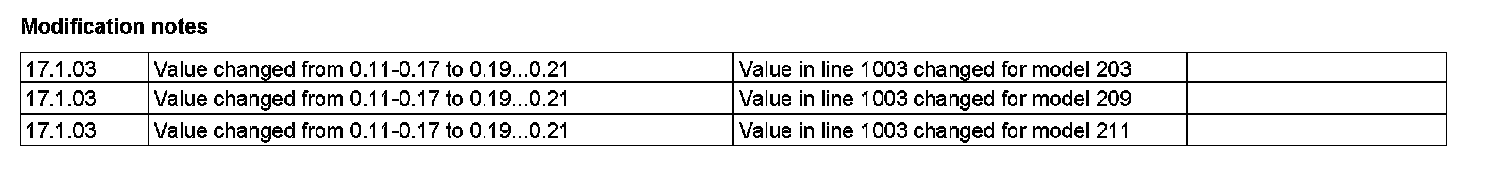

Modification notes:

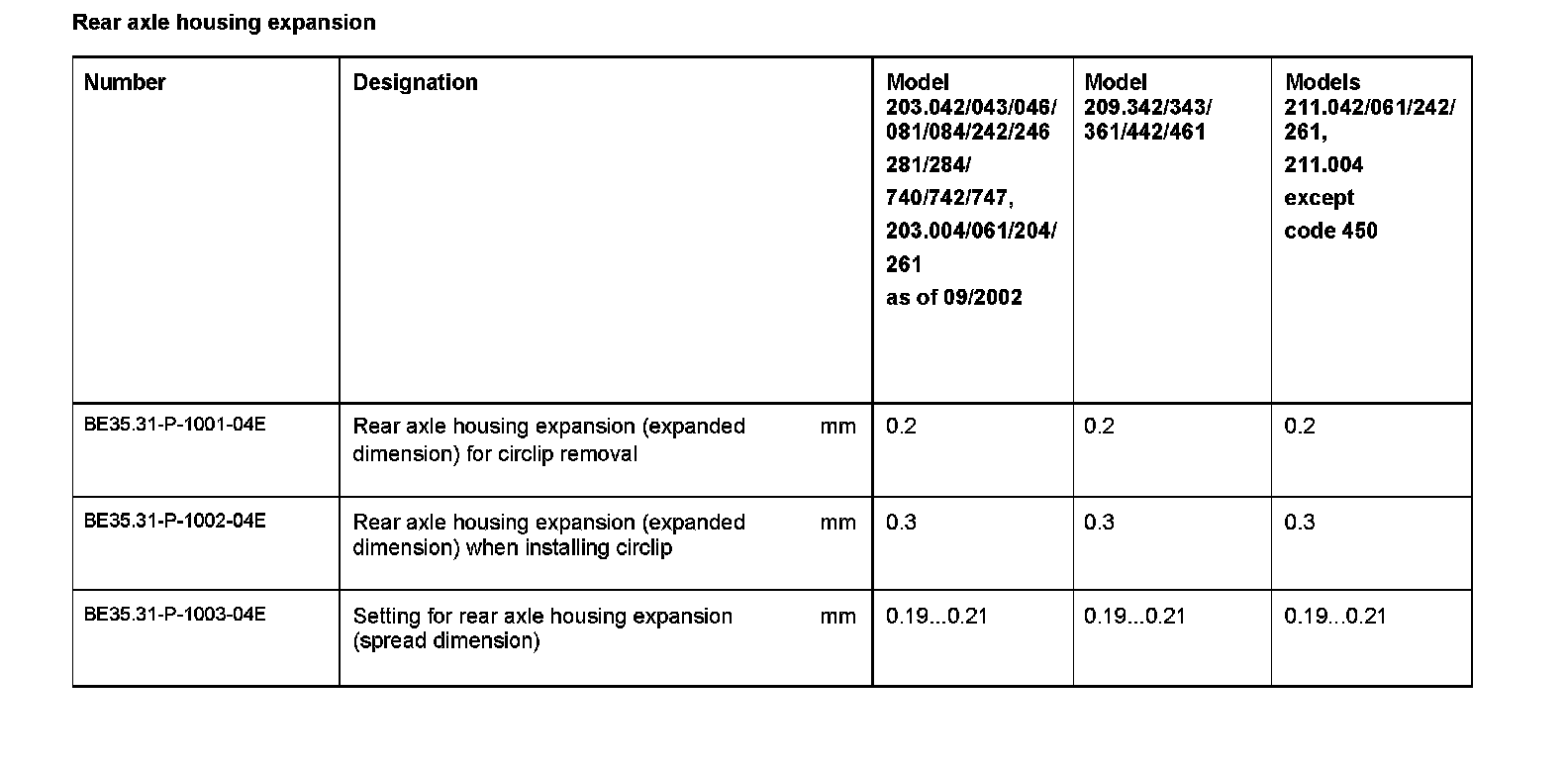

Rear axle housing expansion:
