Fuel Rail: Service and Repair



Removing Fuel Distributor With Injection Valves

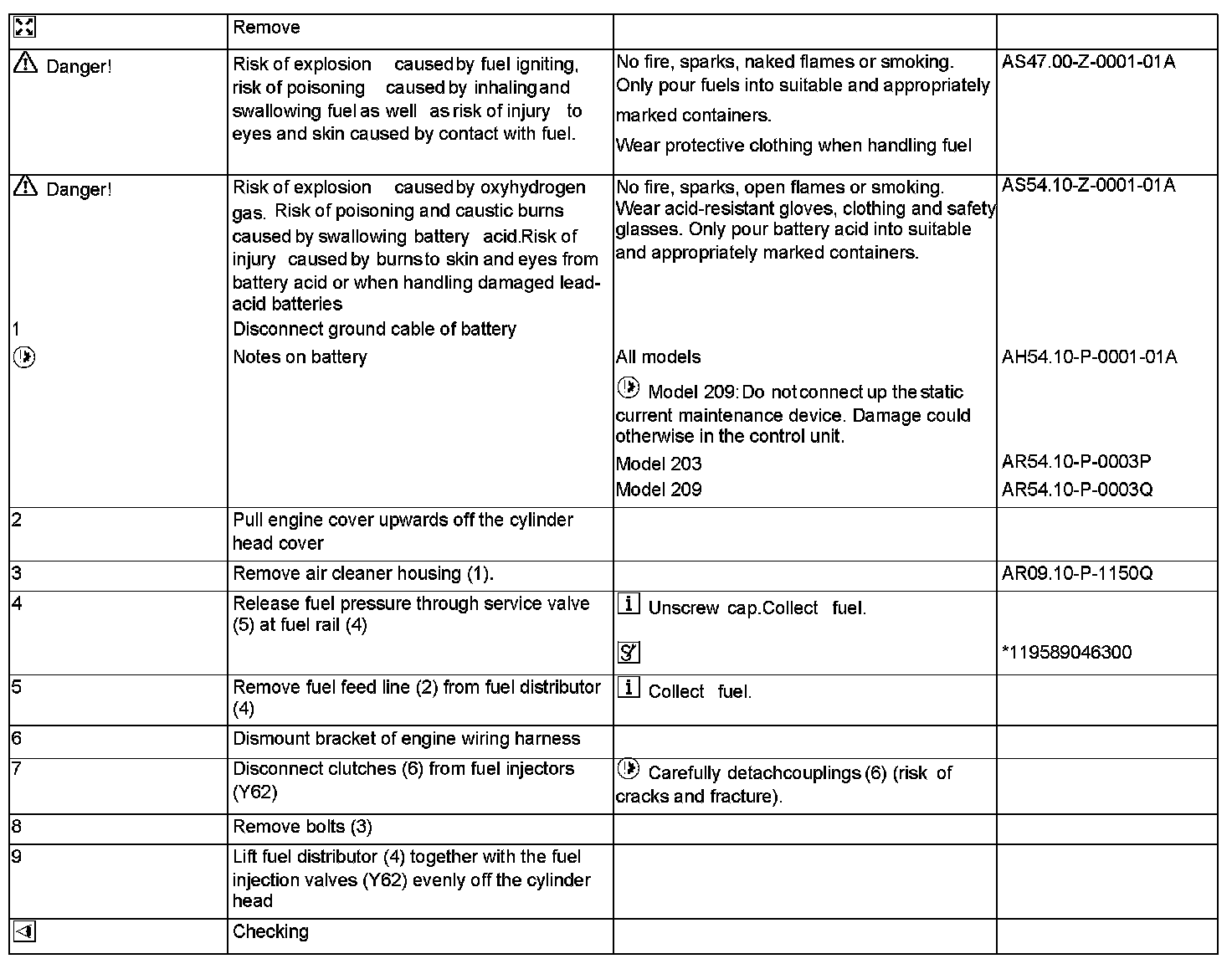

Part 1:

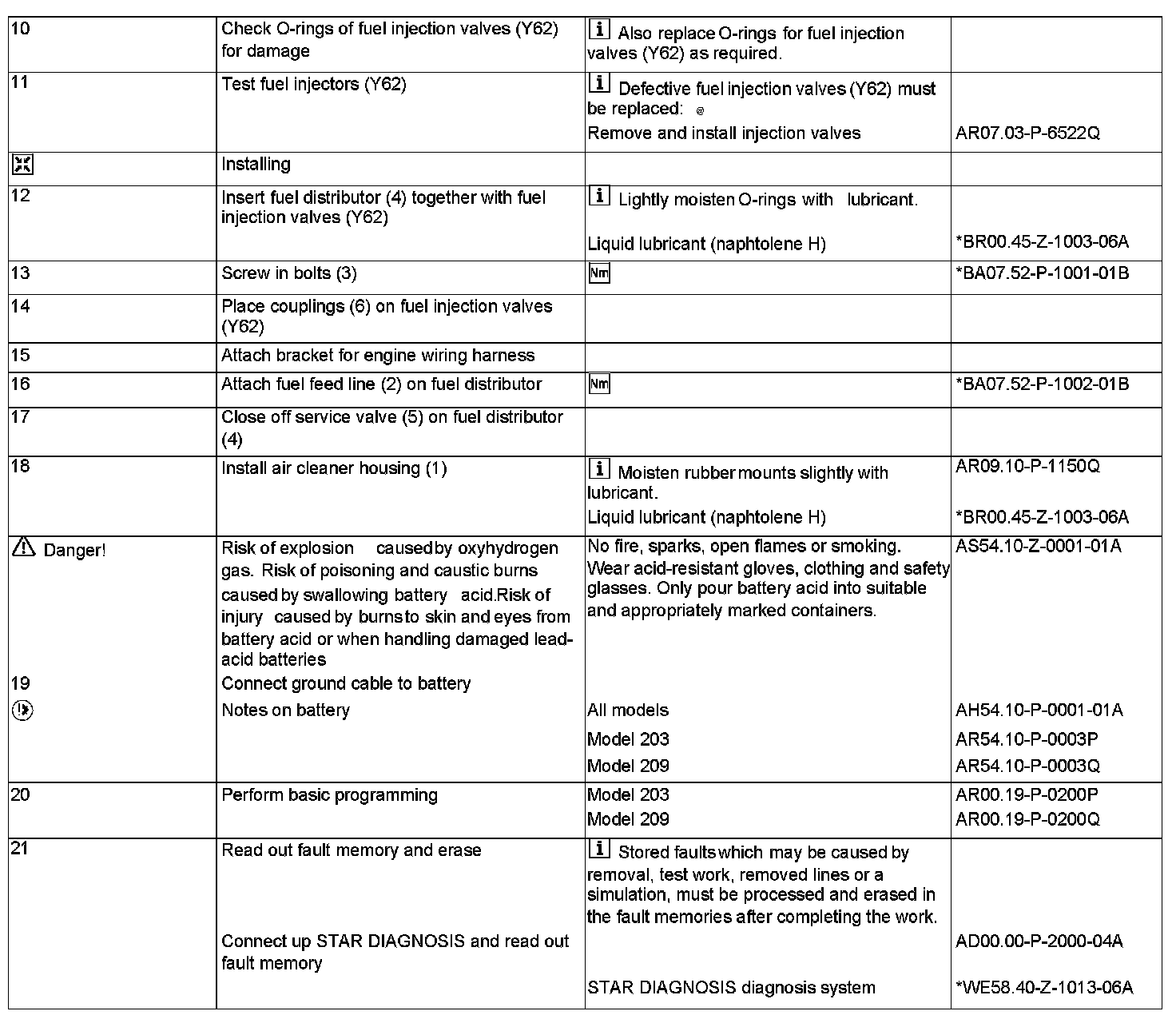

Part 2:

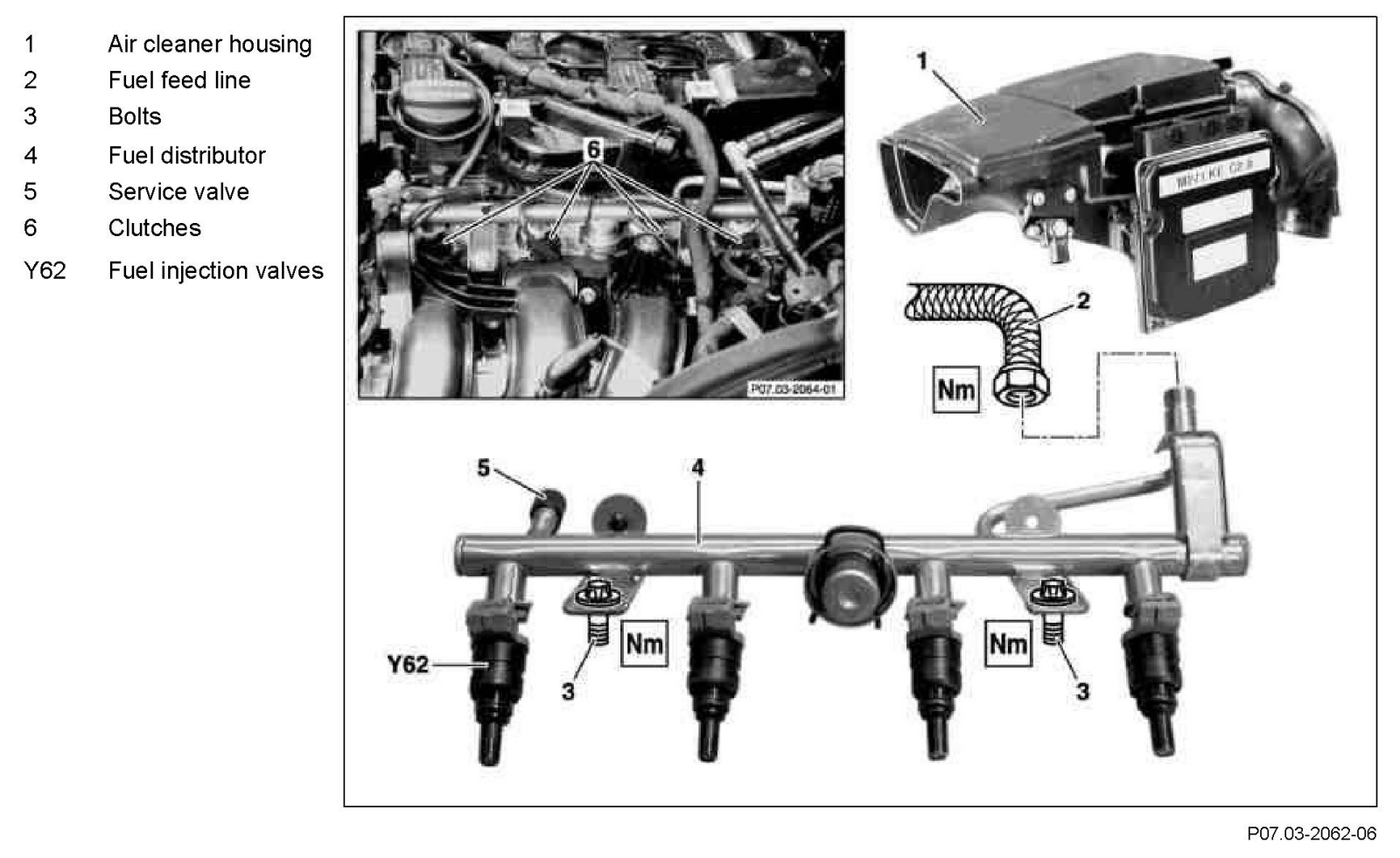

Fuel Rail

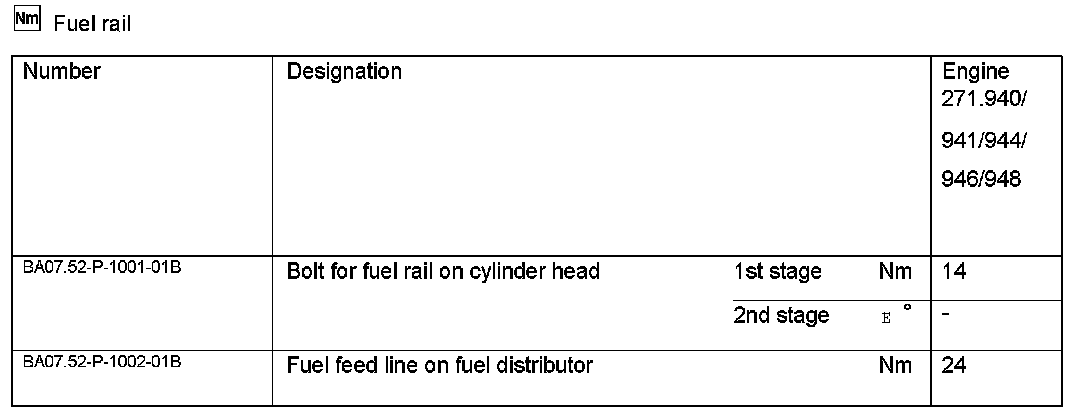

Fuel Rail:
