Fuel Pressure Pulsation Damper: Service and Repair
AR07.52-P-1480PR Remove/Install Diaphragm Pressure Dampener

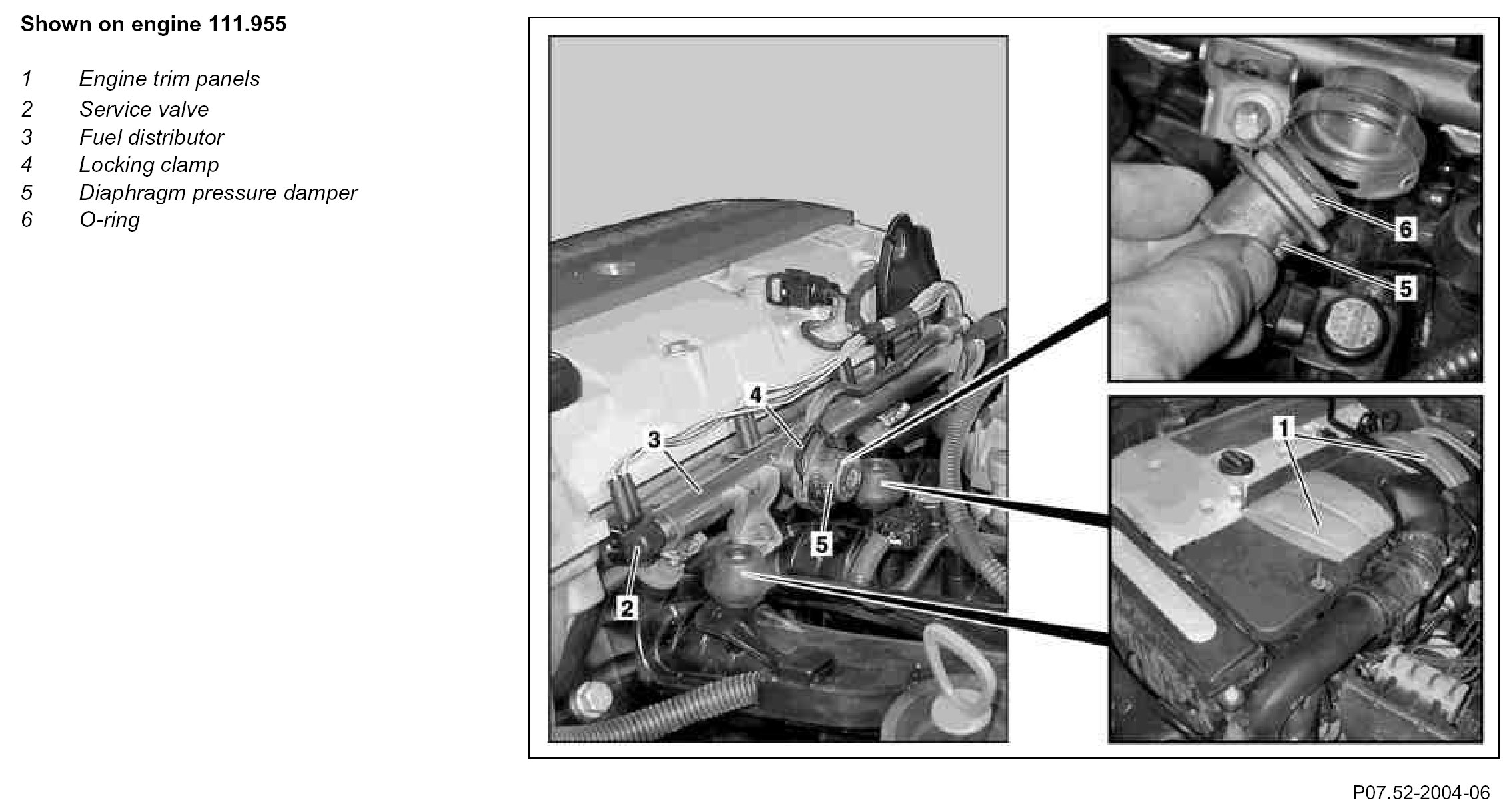

Component Identification:

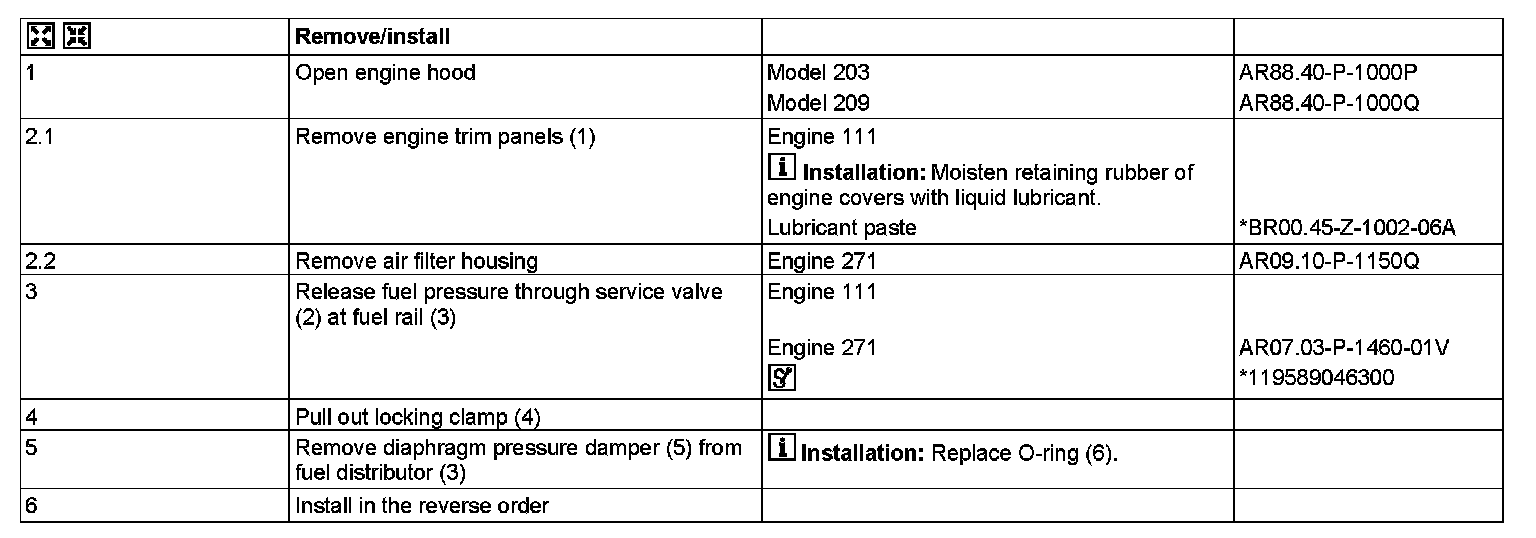

Steps 1 - 6:

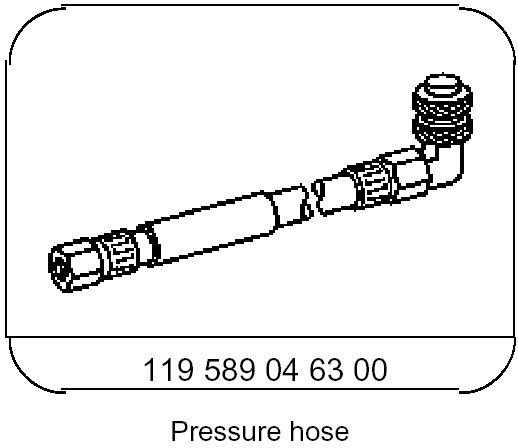

Special Tools:

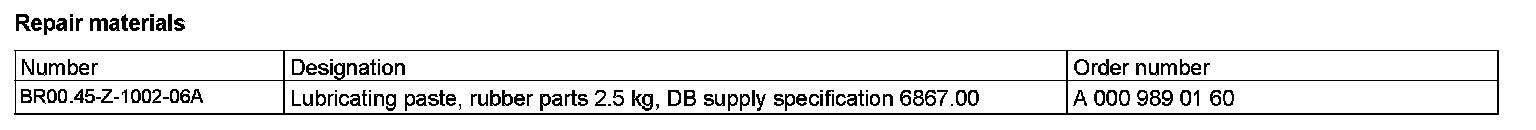

Repair Materials:
