Home >> Mercedes Benz >> 2004 >> C 230 CL (203.740) L4-1.8L SC (271.948) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Timing Components >> Variable Valve Timing >> Timing Plate >> Service and Repair

Timing Plate: Service and Repair

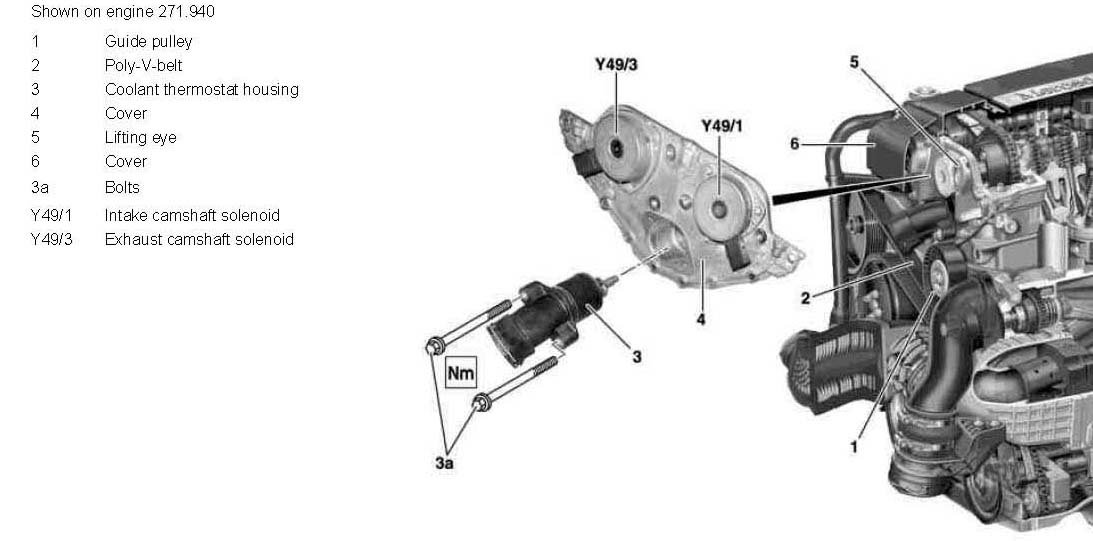

Remove/install front cover on cylinder head
