Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2004
>>
C 230 CL (203.740) L4-1.8L SC (271.948)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Fender
>>
Rear Fender
>>
Rear Fender Liner
>>
Service and Repair
Rear Fender Liner: Service and Repair
AR88.10-P-1400P Remove/Install Wheelhousing Liner In Rear Wheelhousing

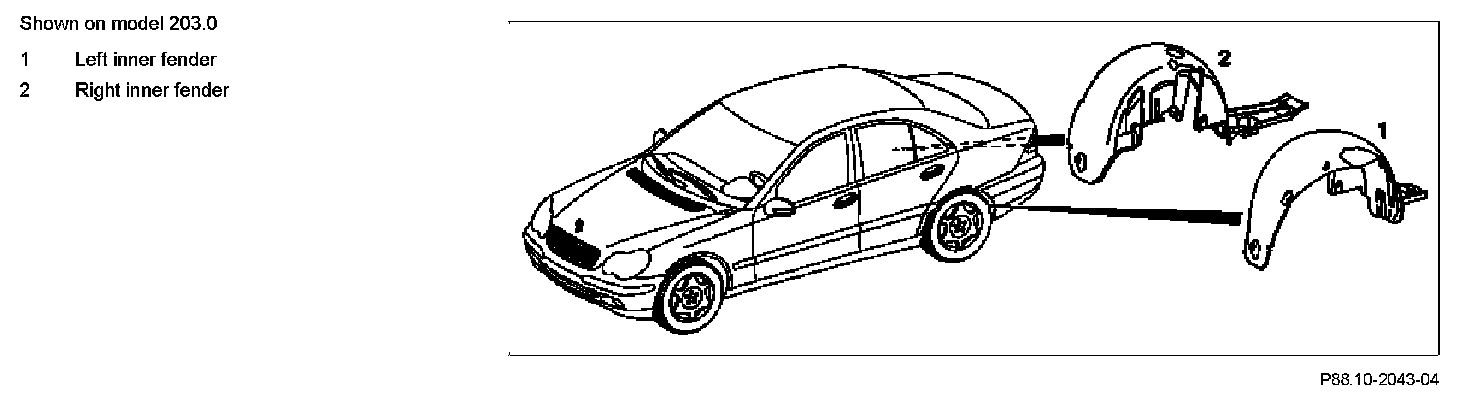

Component Identification:
Component Identification:

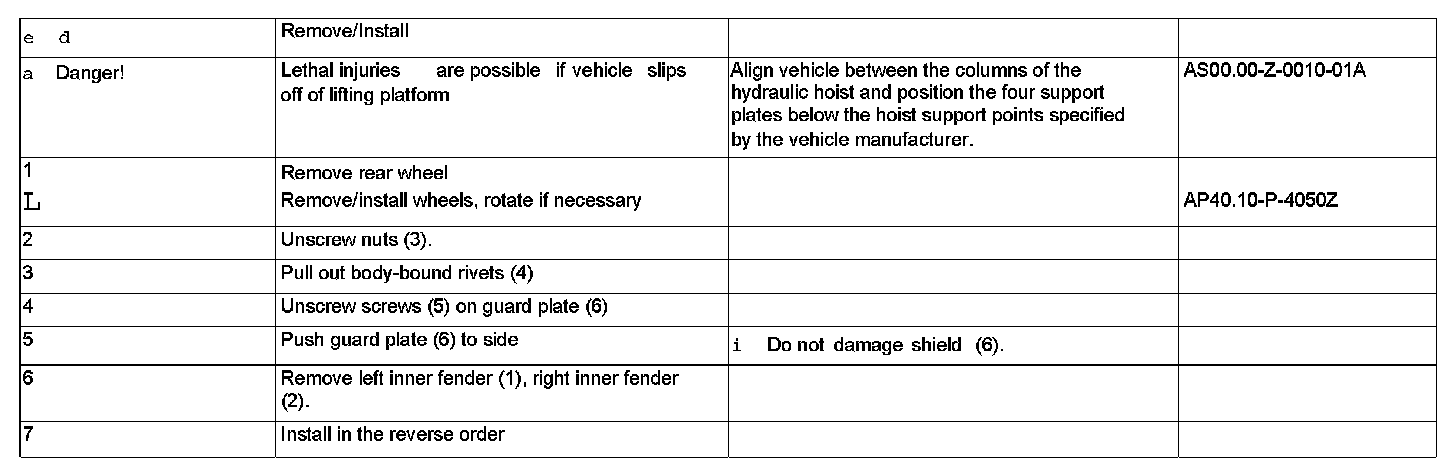

Steps 1 - 7:
