Procedures

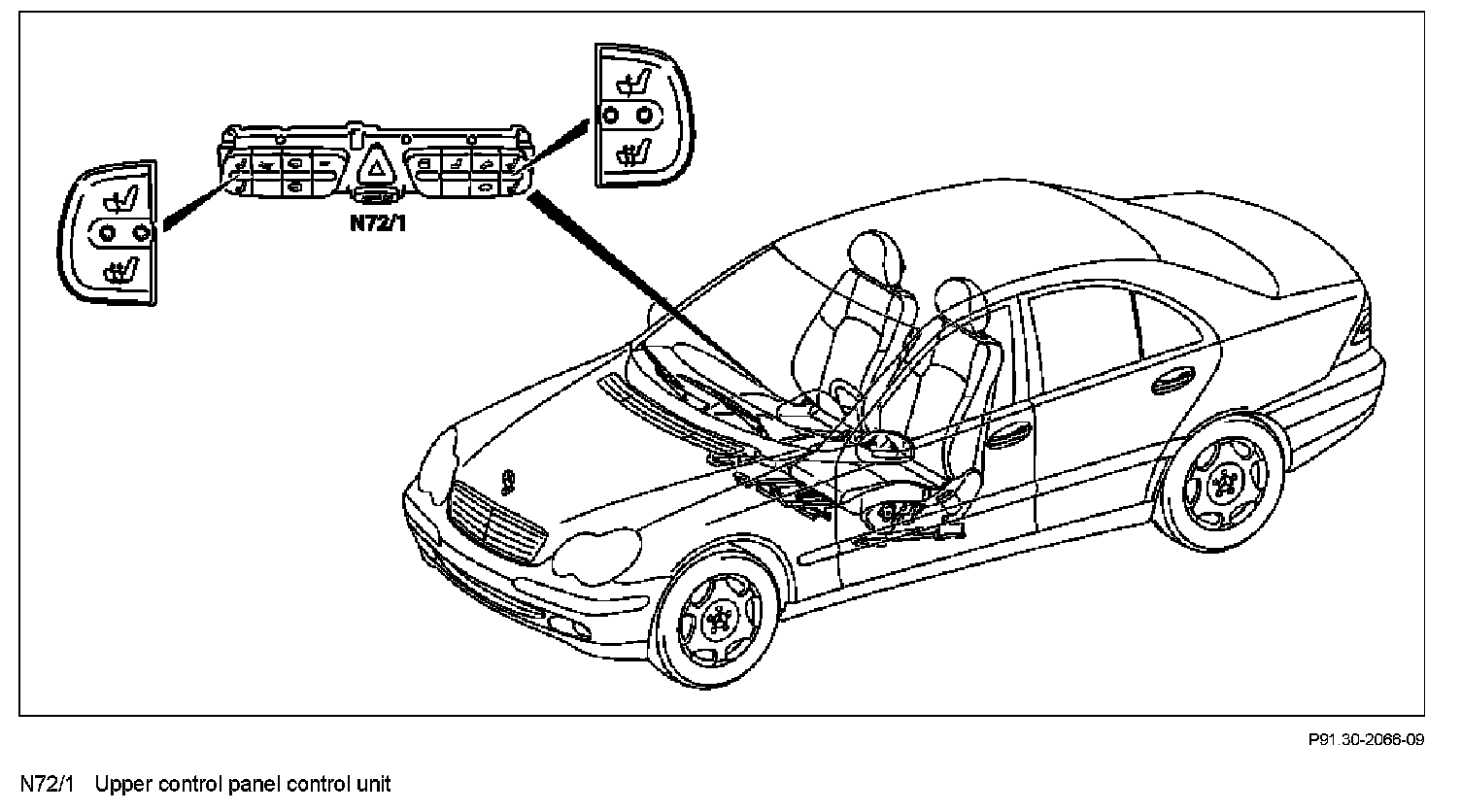

AN91.30-P-0001P Retrofit Seat Heater For Front Seats

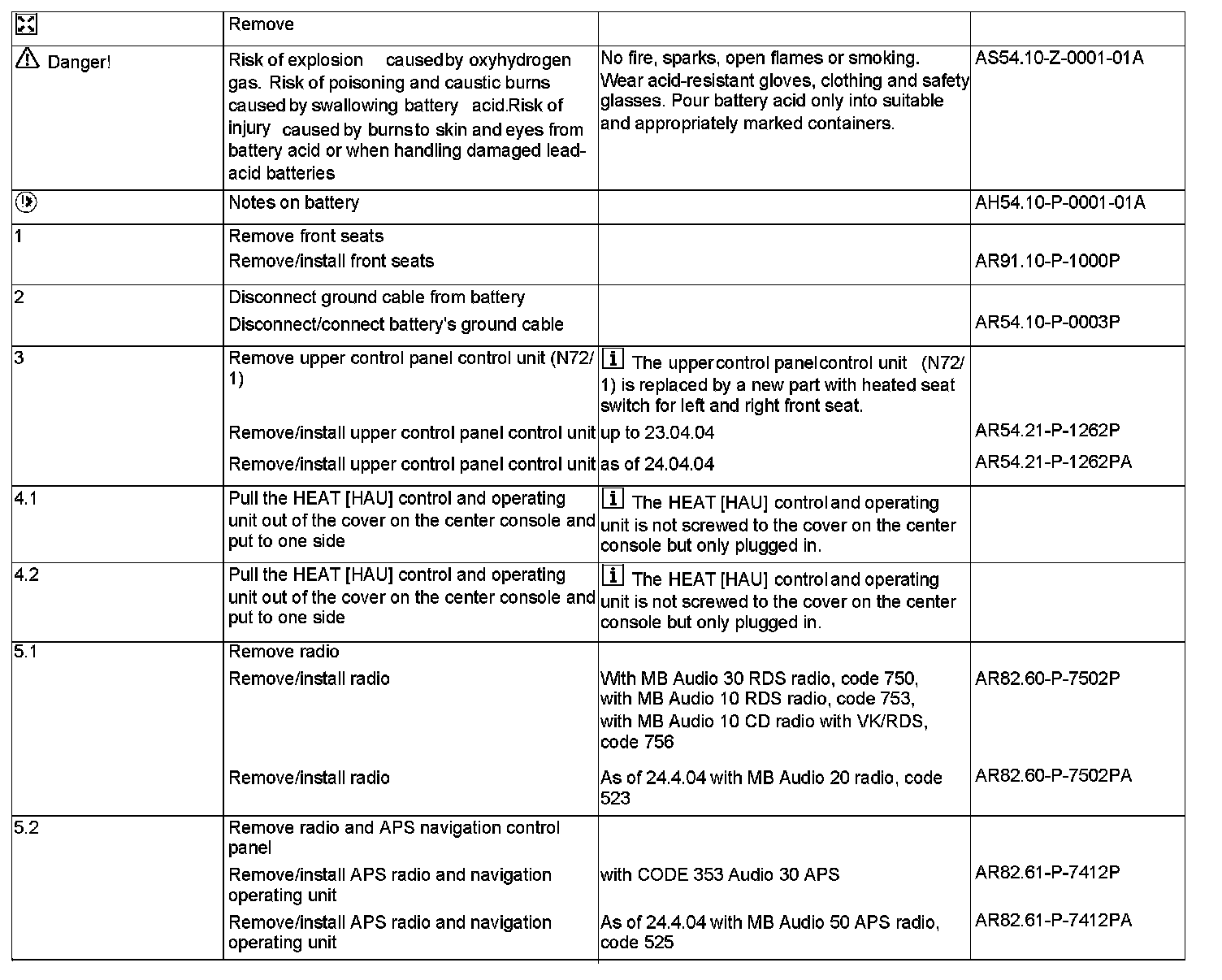

Part 1:






Part 2:

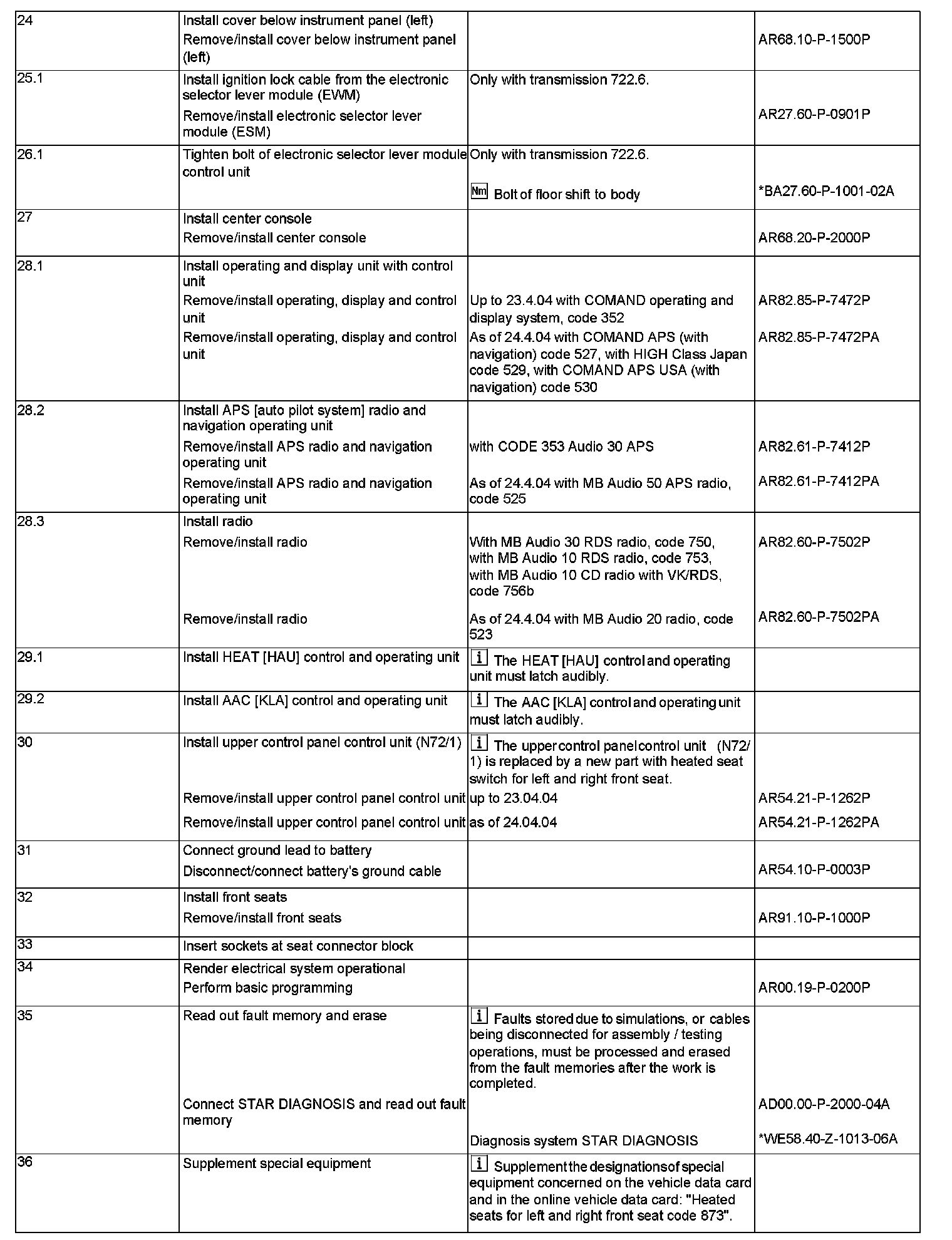

Part 3:






Tightenig Torques For Floor Shift:
