Drive Belt: Diagrams

Layout of Poly-V-Belt Drive:

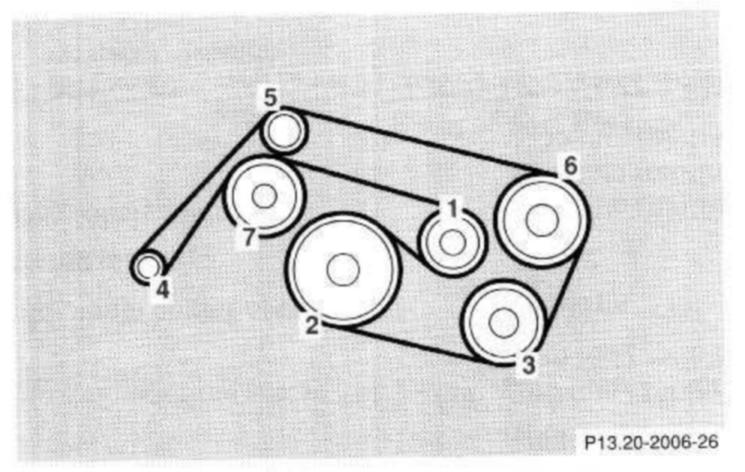

SLK 320 belt routing:

1 Automatic belt tensioner

2 Crankshaft

3 Air conditioner compressor

4 Generator (alternator)

5 Idler pulley

6 Power steering pump

7 Coolant pump
