AR14.30-P-7251SVK Remove/Install Air Pump
AR14.30-P-7251SVK Remove/Install Air Pump
AR14.30-P-7251SVK Remove/install air pump

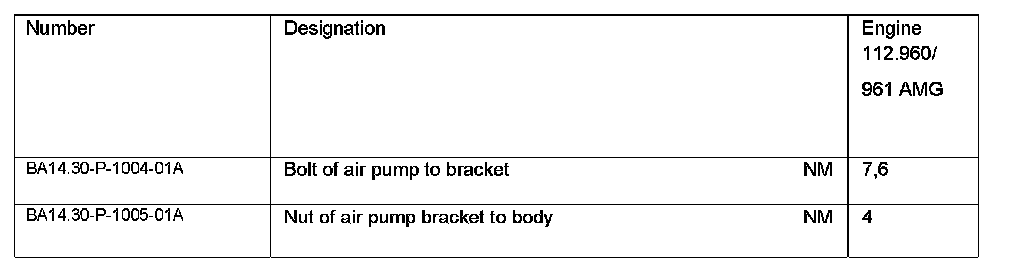

Component Identification:

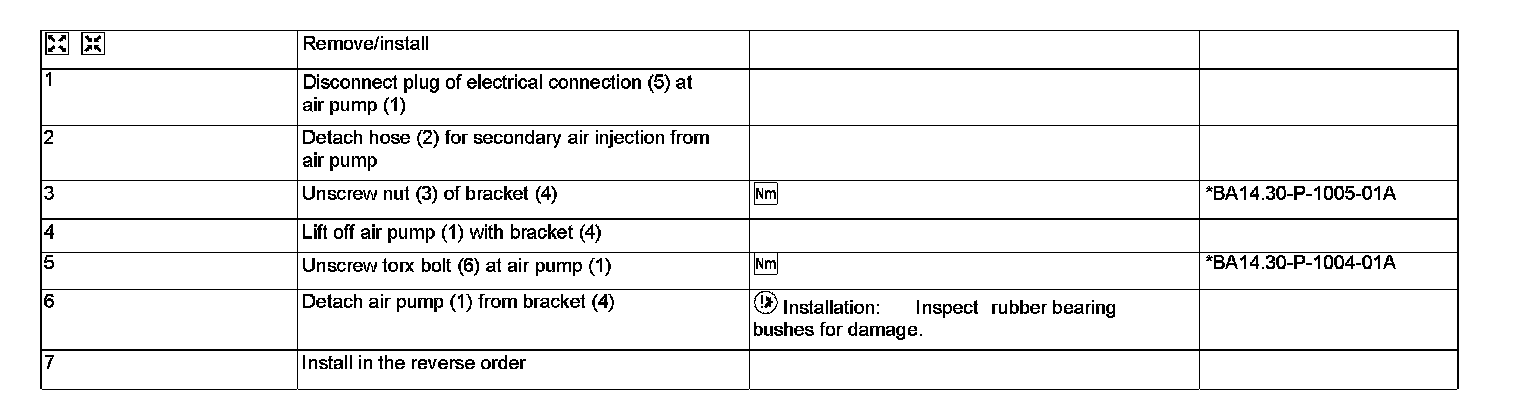

Steps 1-7:

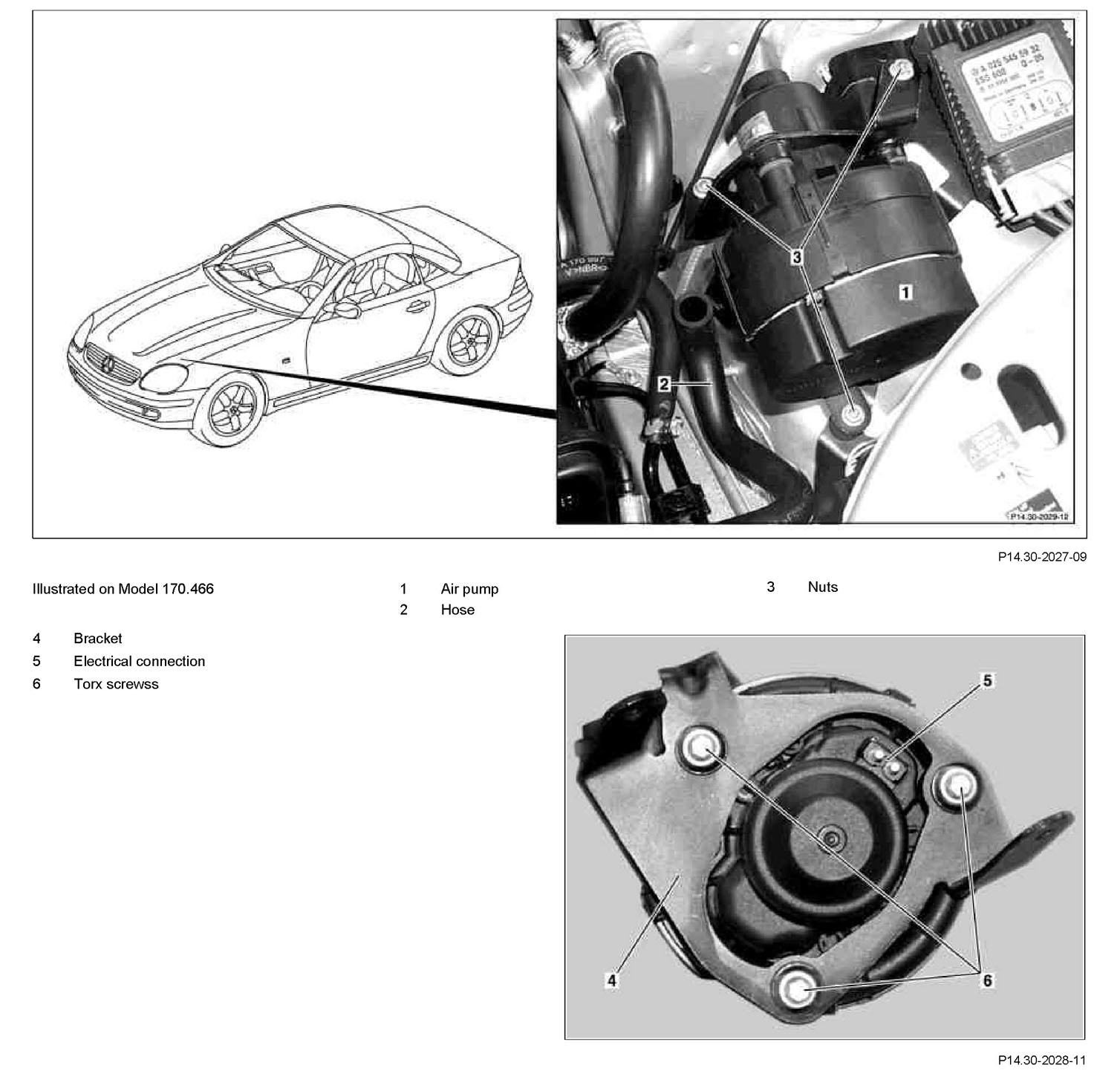

Air Pump:
