Relay Module

Fuse and Relay Module (K40)

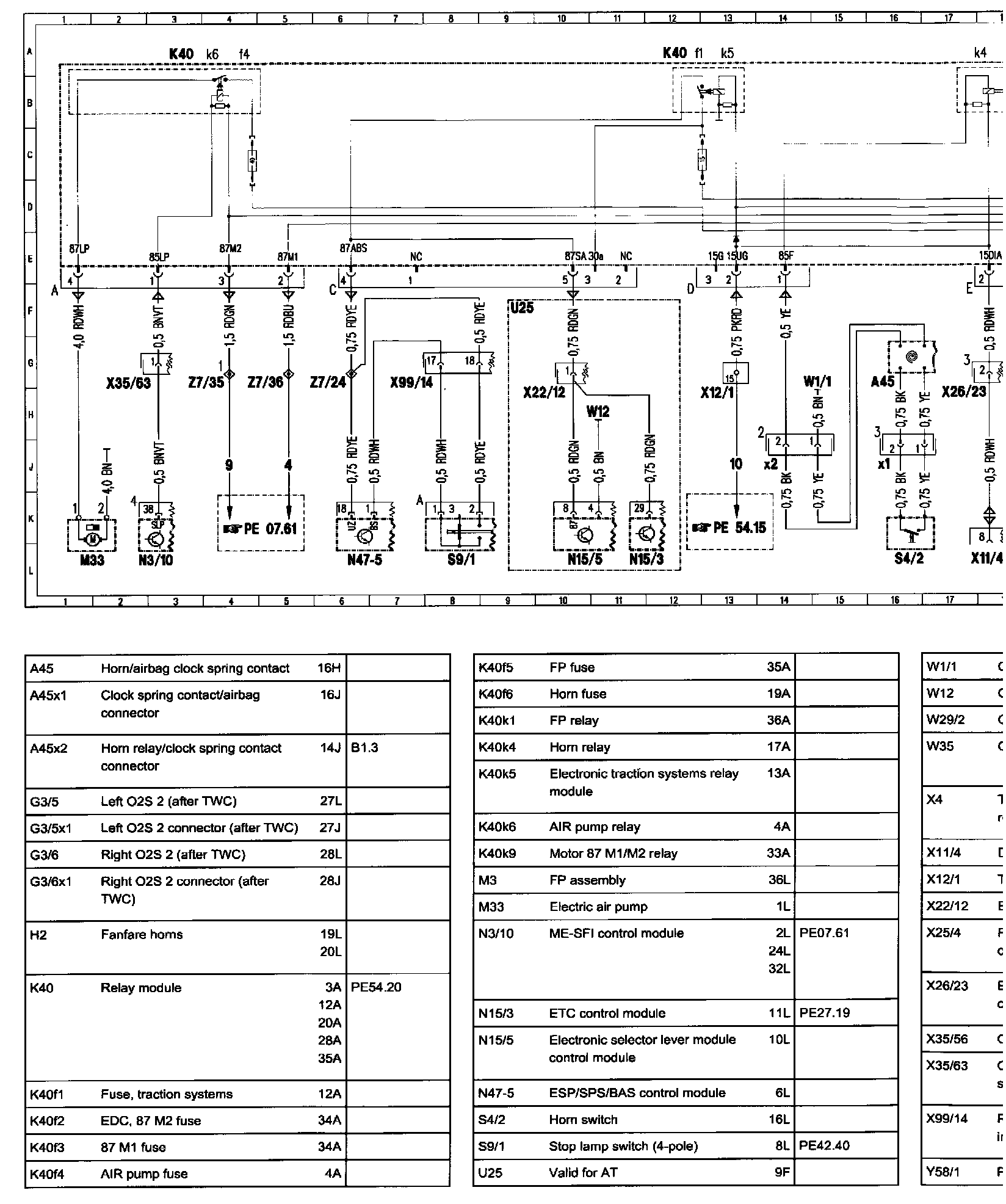

�Y�Ҩ�Wiring Diagram:

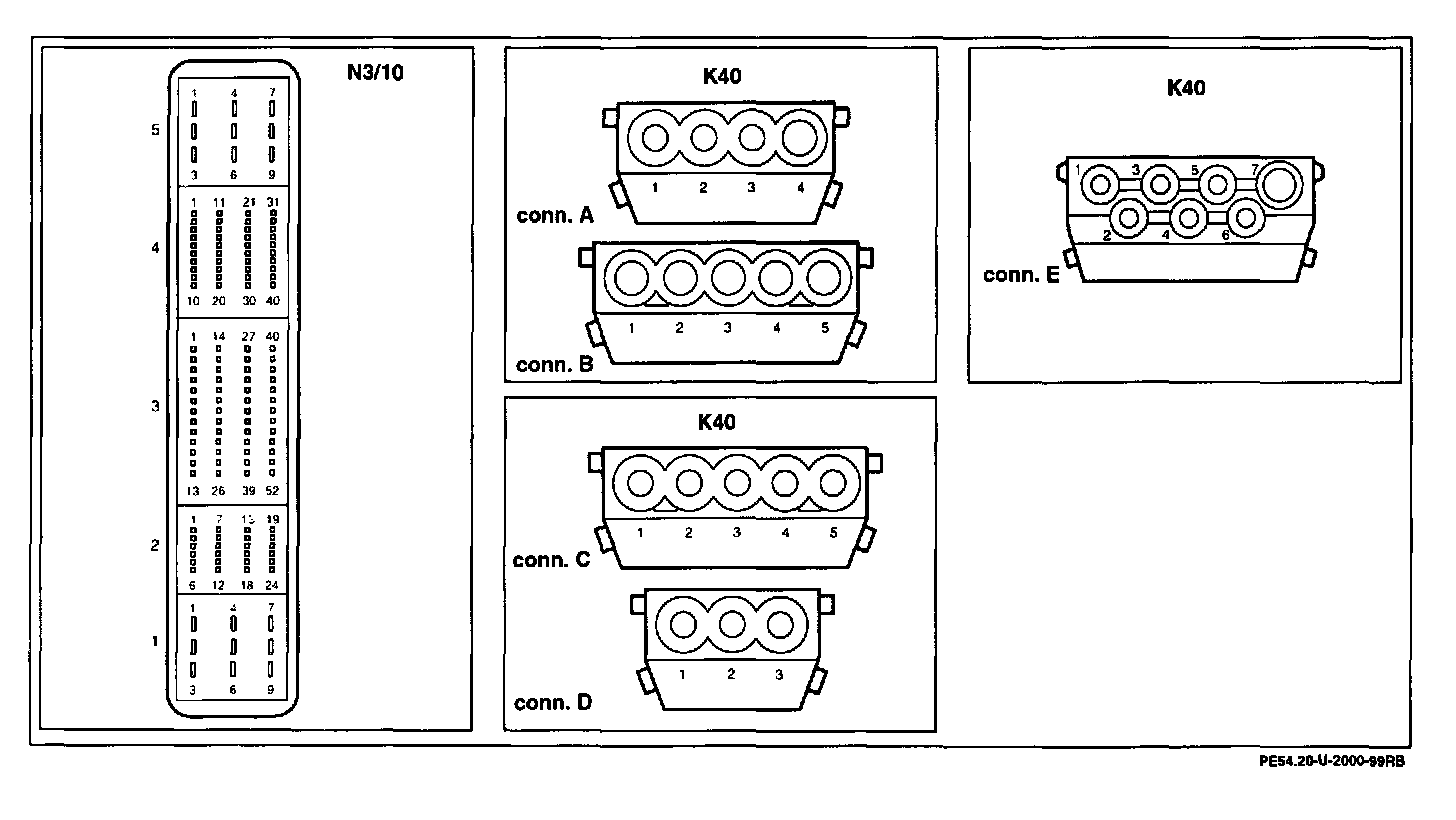

Connector Assignment:

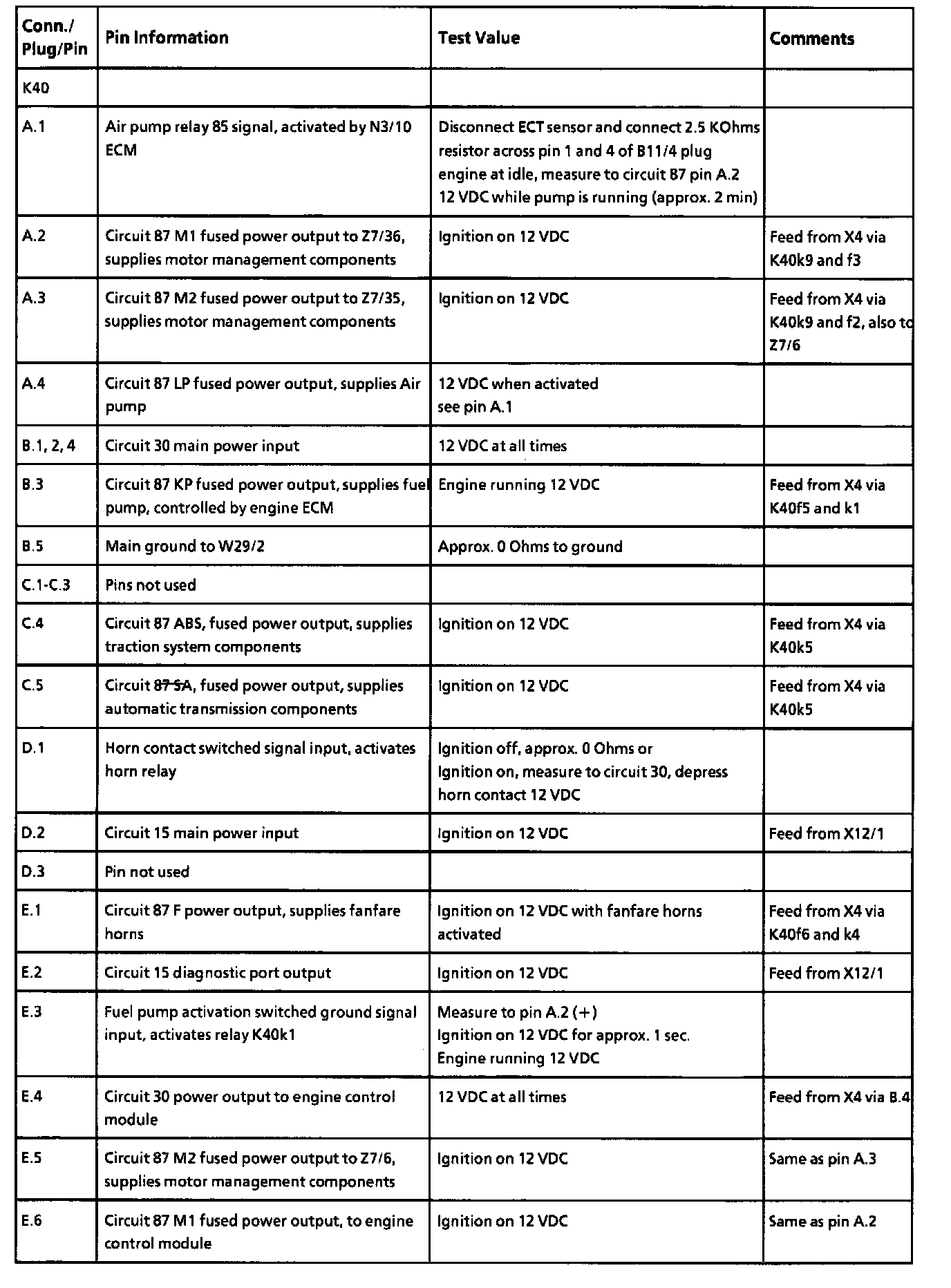

Pin Information:
