Home >> Mercedes Benz >> 2003 >> SLK 230 (170.449) L4-2.3L SC (111.983) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Motor >> Service and Repair

Starter Motor: Service and Repair



AR15.30-P-7100G Removing and Installing Starter

Component Identification:

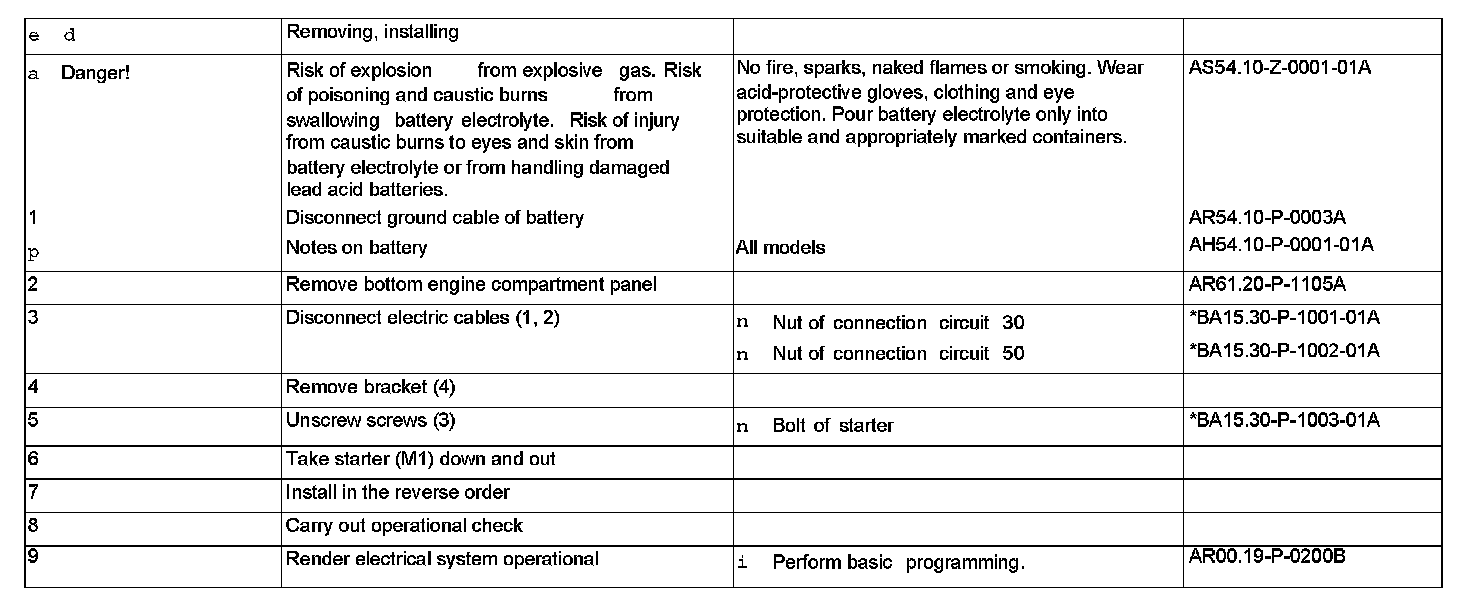

Steps 1 - 9:

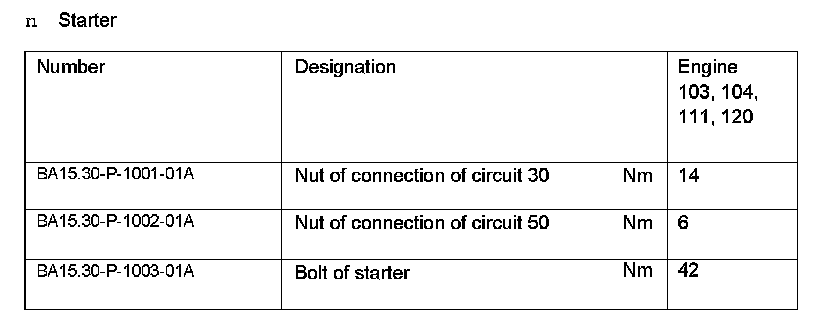

Starter:
