Home
>>
Mercedes Benz
>>
2003
>>
SLK 230 (170.449) L4-2.3L SC (111.983)
>>
Repair and Diagnosis
>>
Maintenance
>>
Drive Belt
>>
Service and Repair
>>
AR13.22-P-1202GS Remove/Install Poly V-Belt
AR13.22-P-1202GS Remove/Install Poly V-Belt

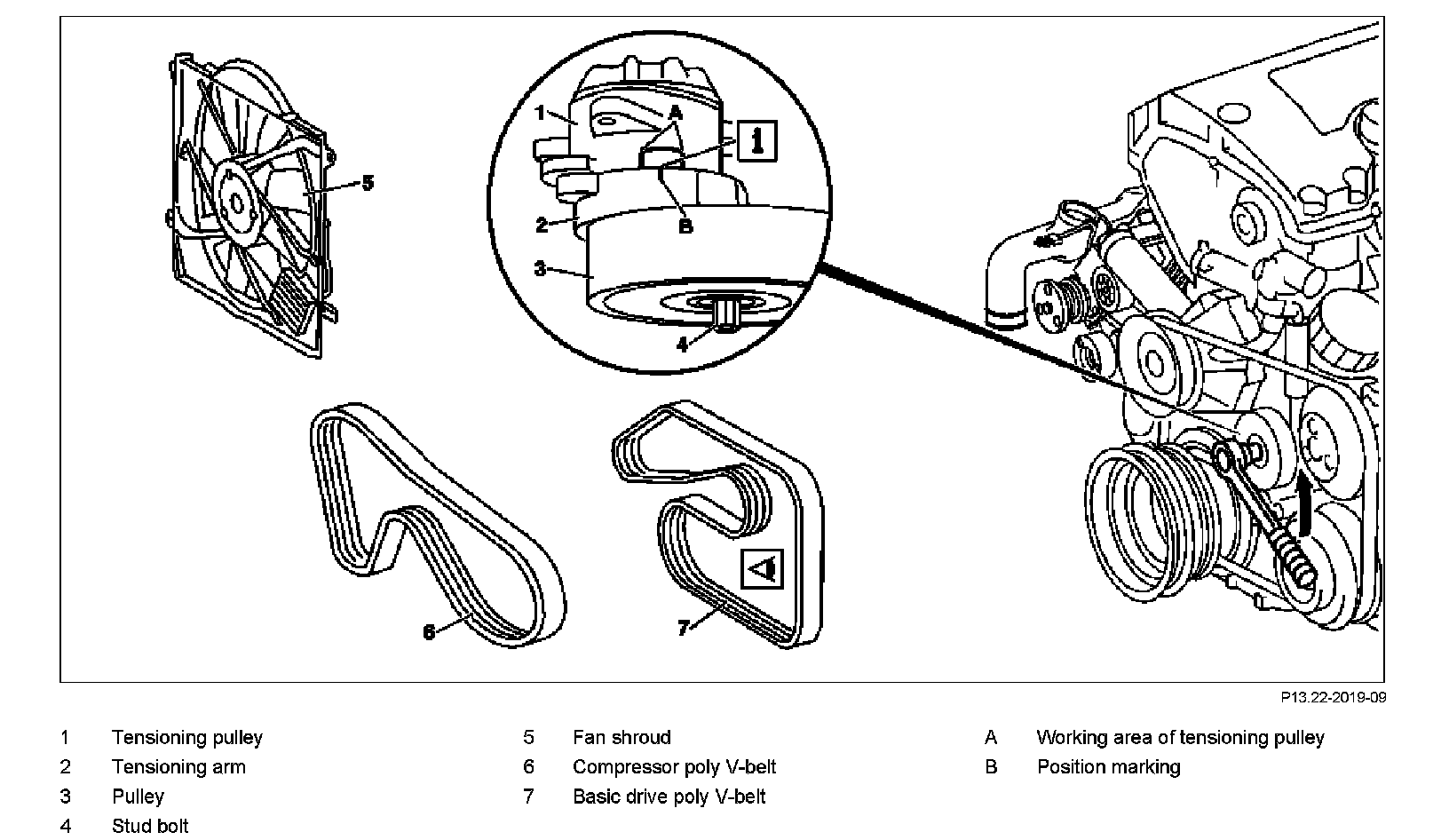

Remove/install poly V-belt

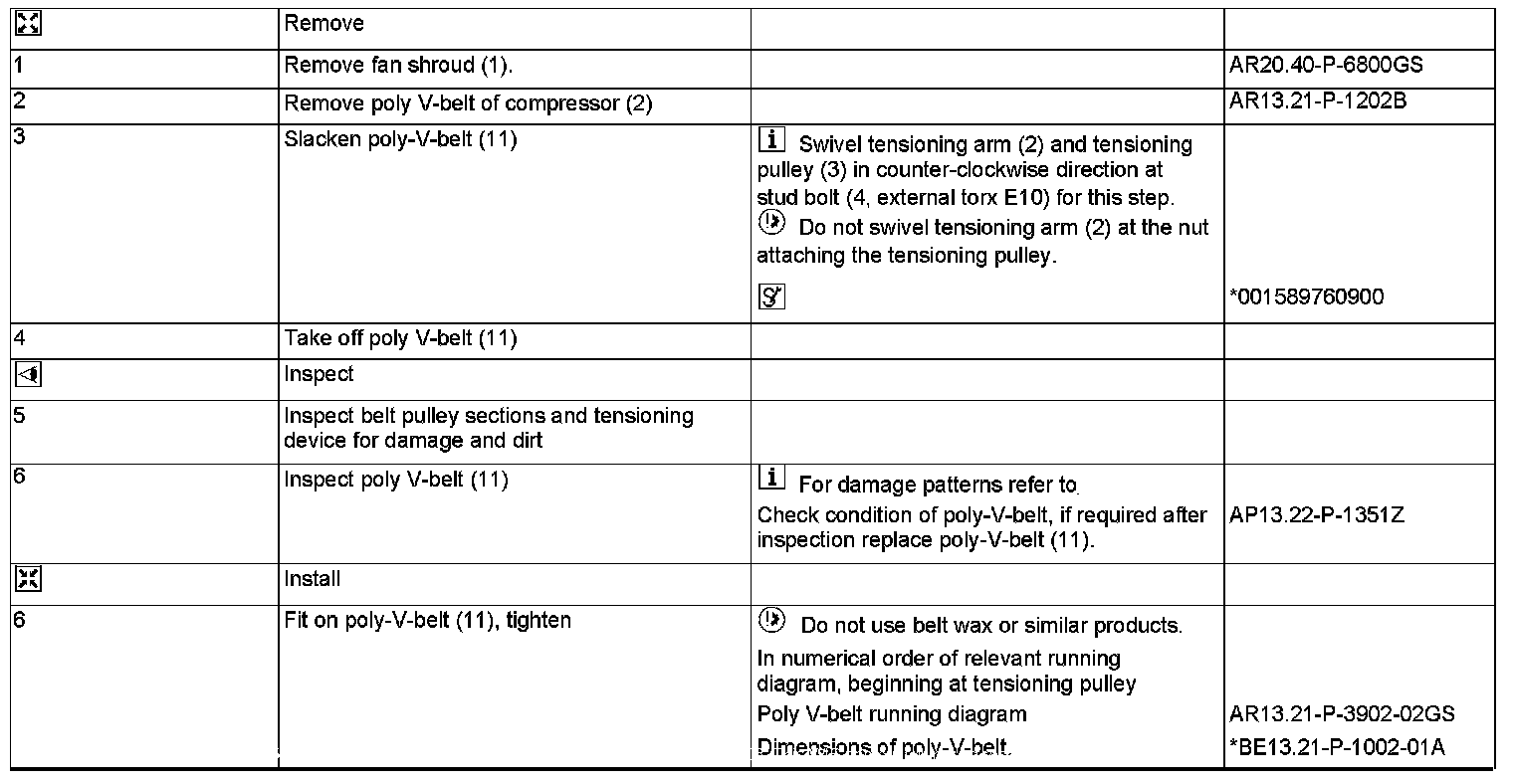

Steps 1-6:
Steps 7-8:
