AR13.21-P-1202B Remove/Install Poly V-Belt of Compressor
AR13.21-P-1202B Remove/Install Poly V-Belt of Compressor

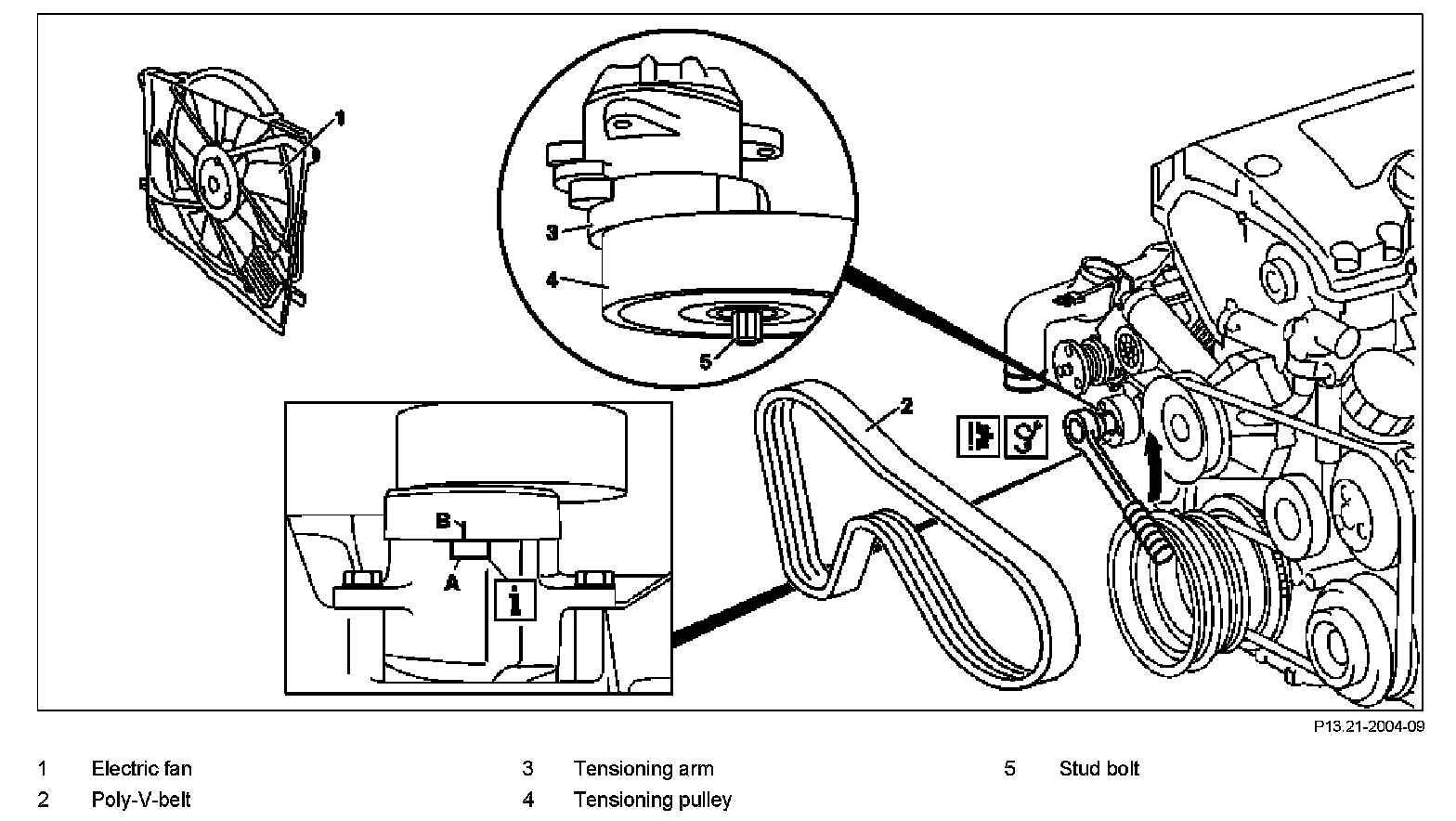

Remove/install poly V-belt of compressor

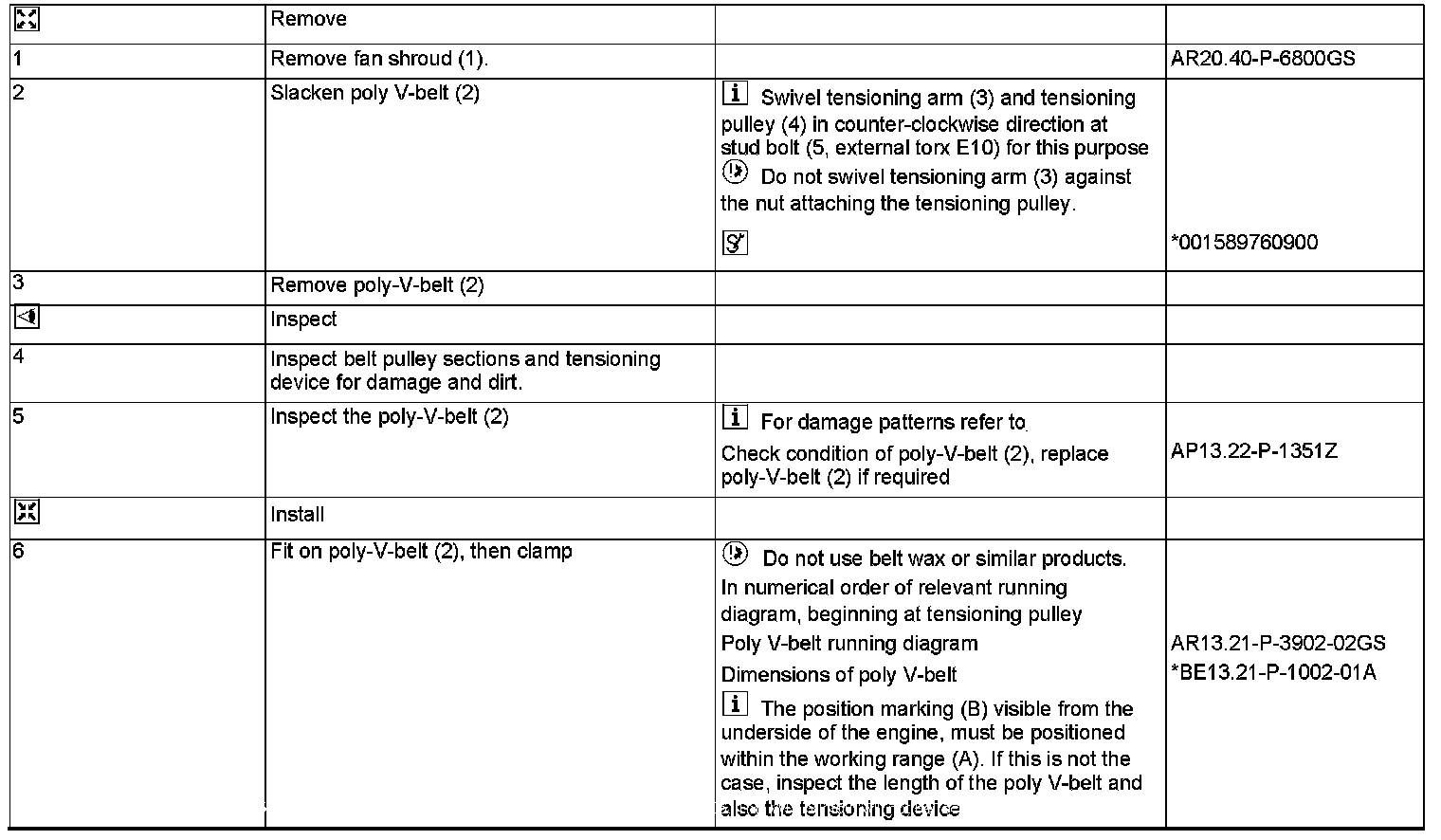

Steps 1-6:

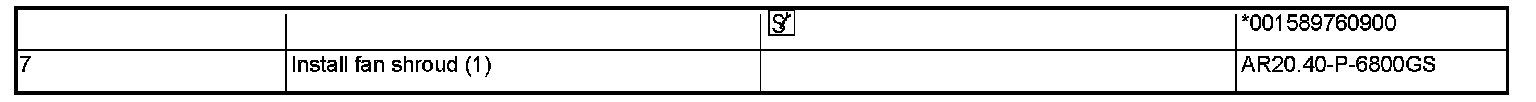

Step 7:
