Evaporator Case: Service and Repair
Removing and installing evaporator housing

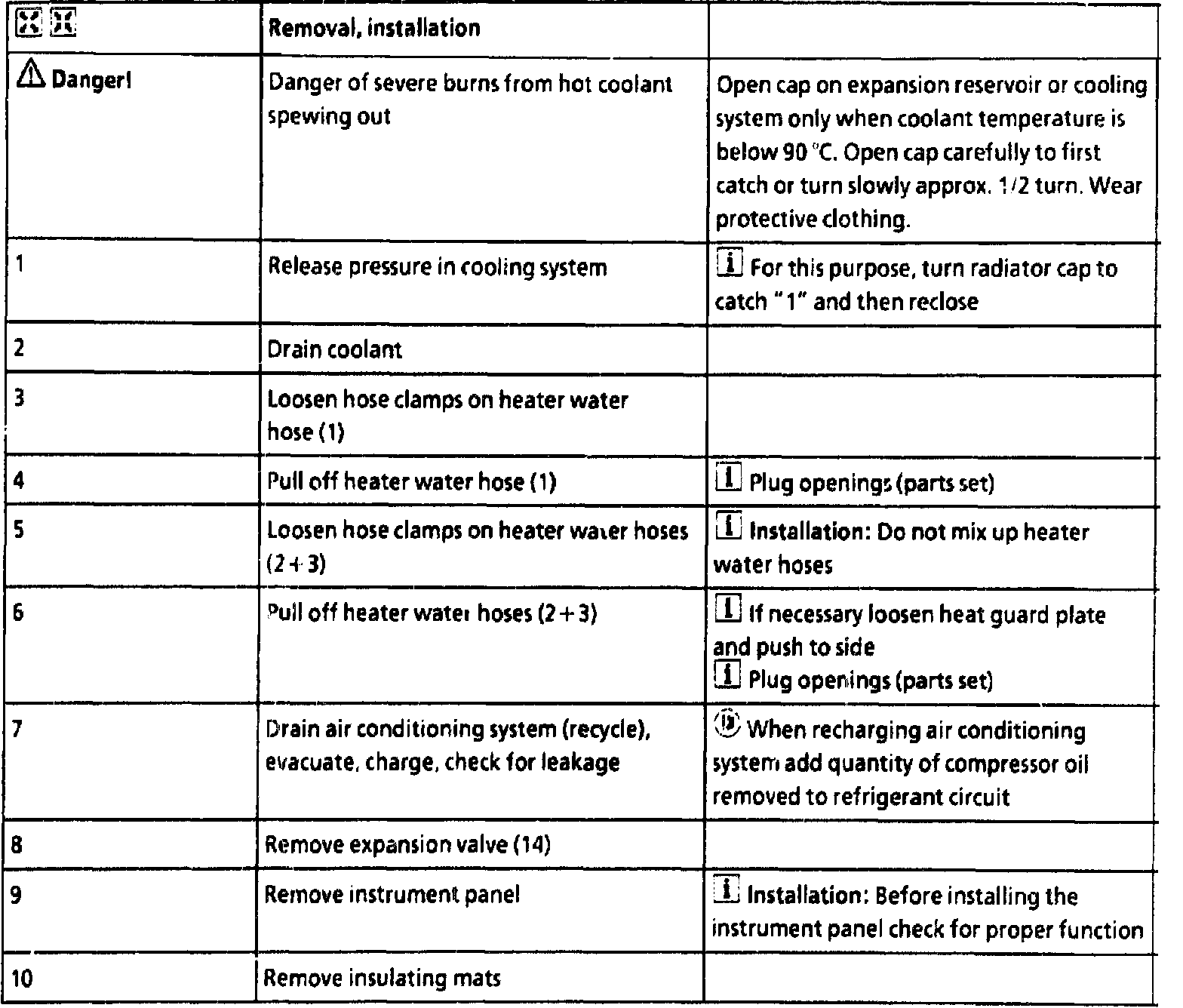

Remove, Install - Steps 1-10:

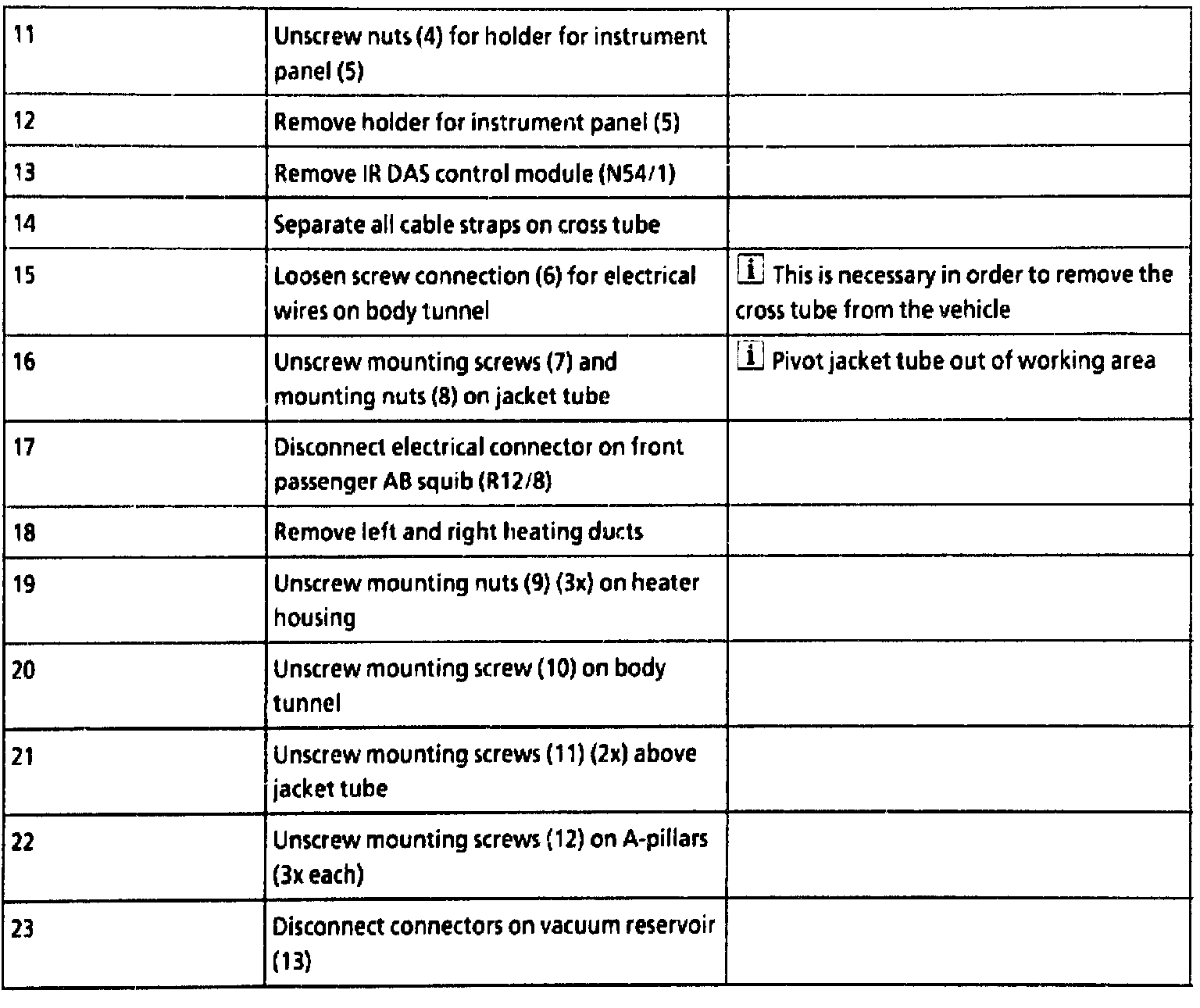

Remove, Install - Steps 11-23:

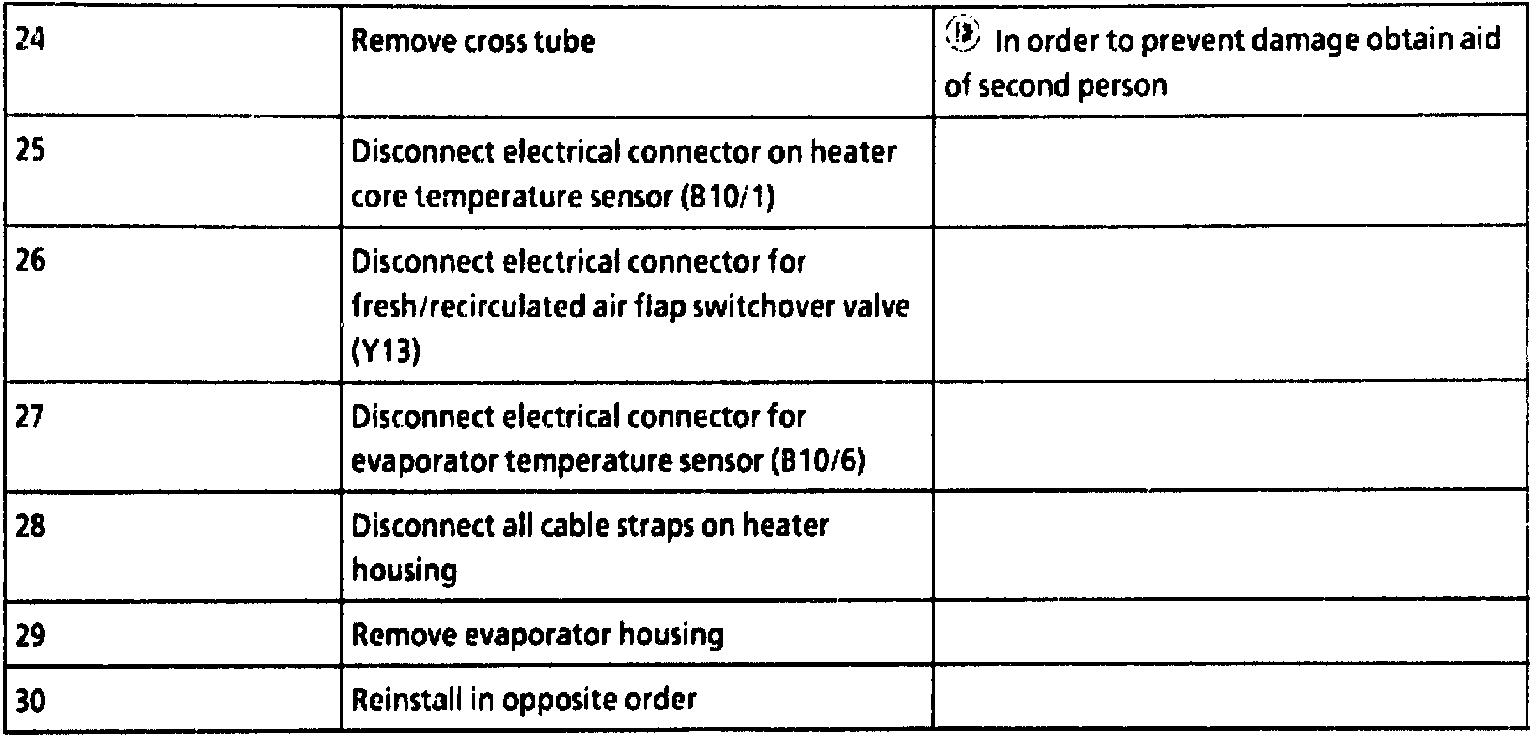

Remove, Install - Steps 24-30:
