AR91.10-P-1450G Remove/Install Front Seat Adjustment Mechanism



AR91.10-P-1450G Remove/Install Front Seat Adjustment Mechanism

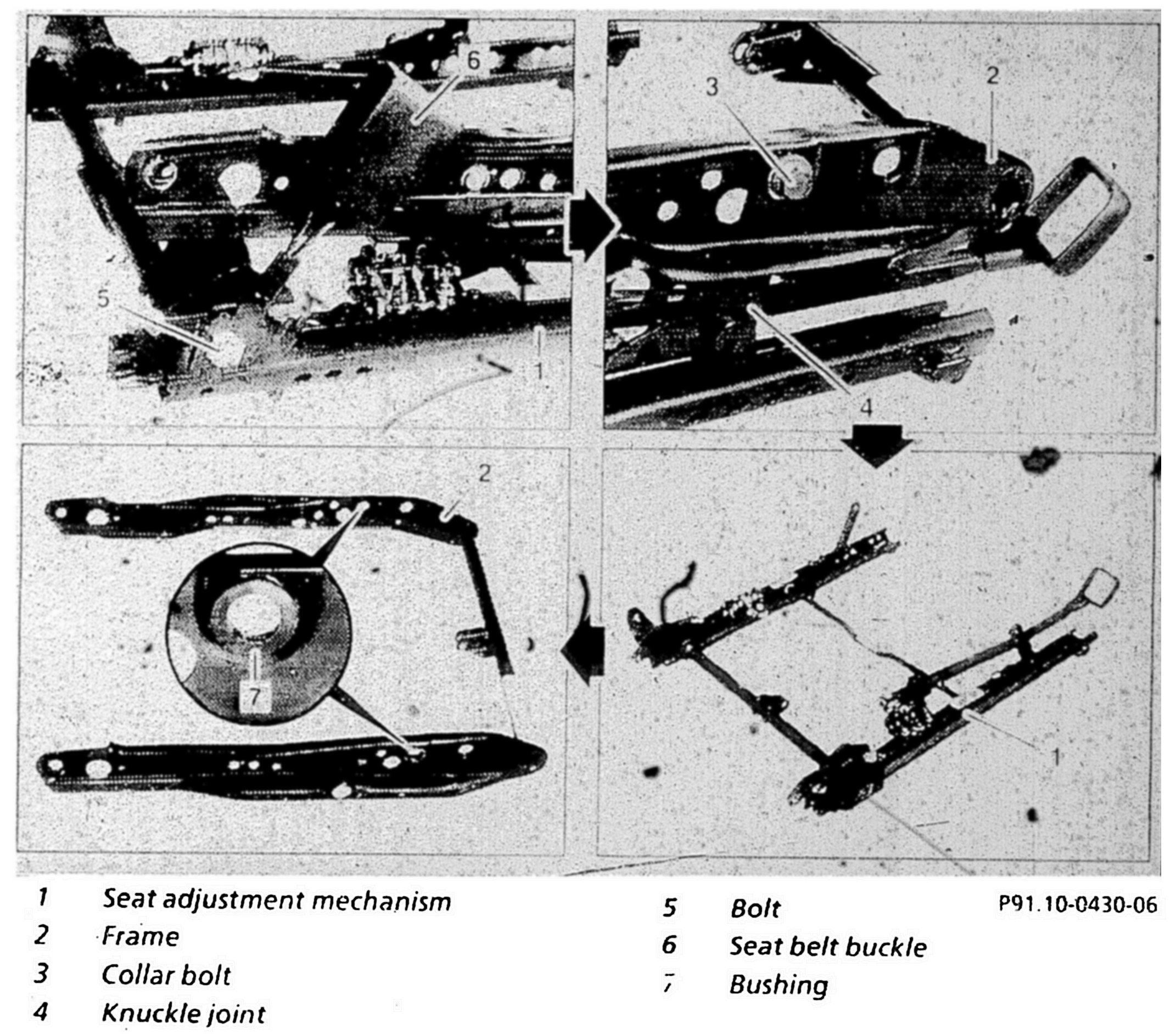

Component Identification:

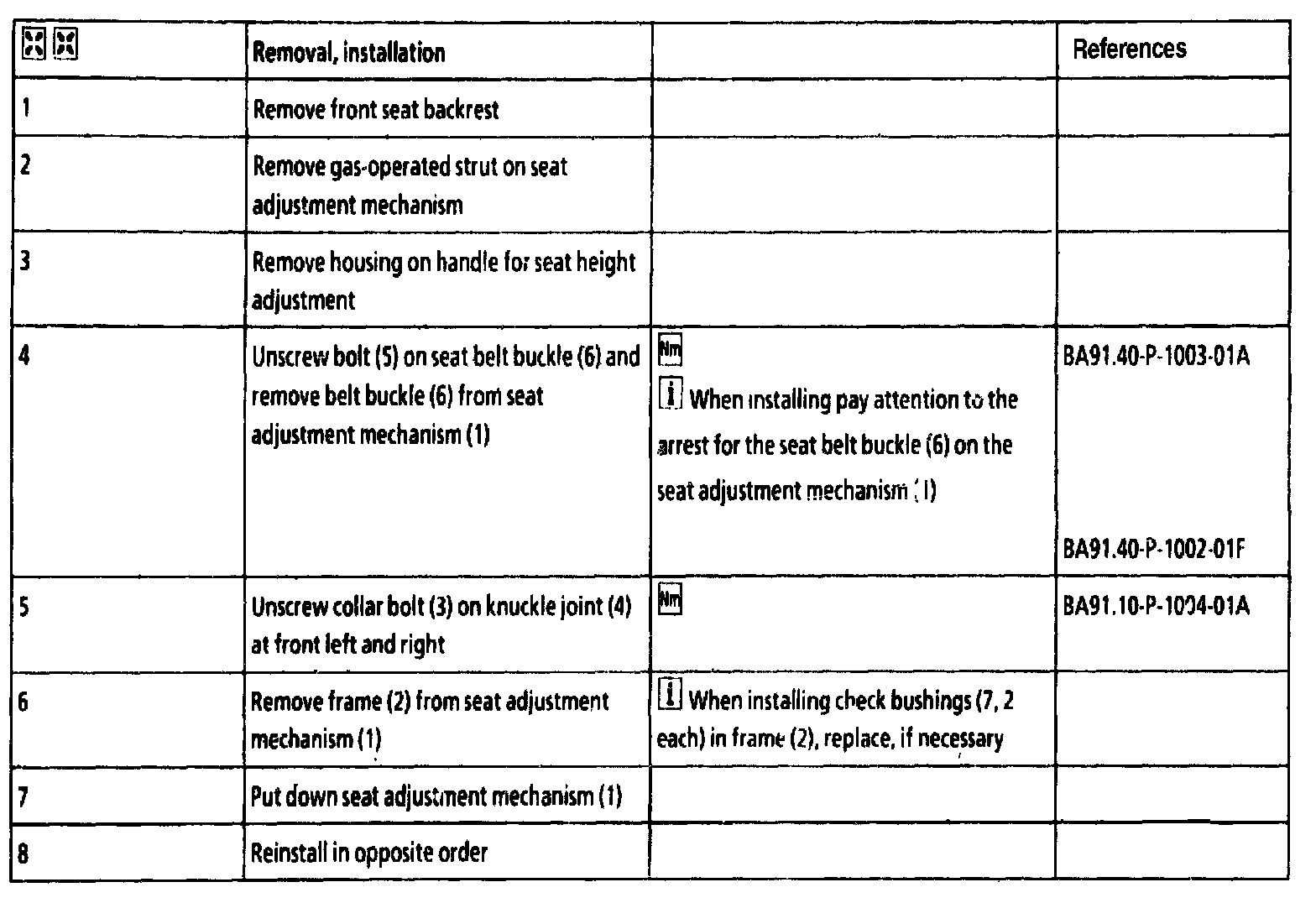

Removal/Installation:

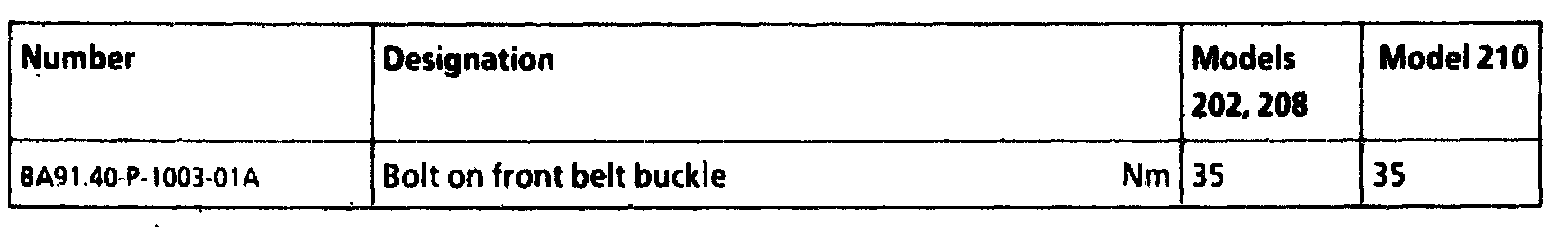

References (BA), Seat Belts/ETR:






References (BA), Seat Belts/ETR:






References (BA), Front Seats:
