Home >> Mercedes Benz >> 2003 >> SLK 230 (170.449) L4-2.3L SC (111.983) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Component Tests and General Diagnostics >> Electrical Test Program >> Test - Section 23 >> Figure 1

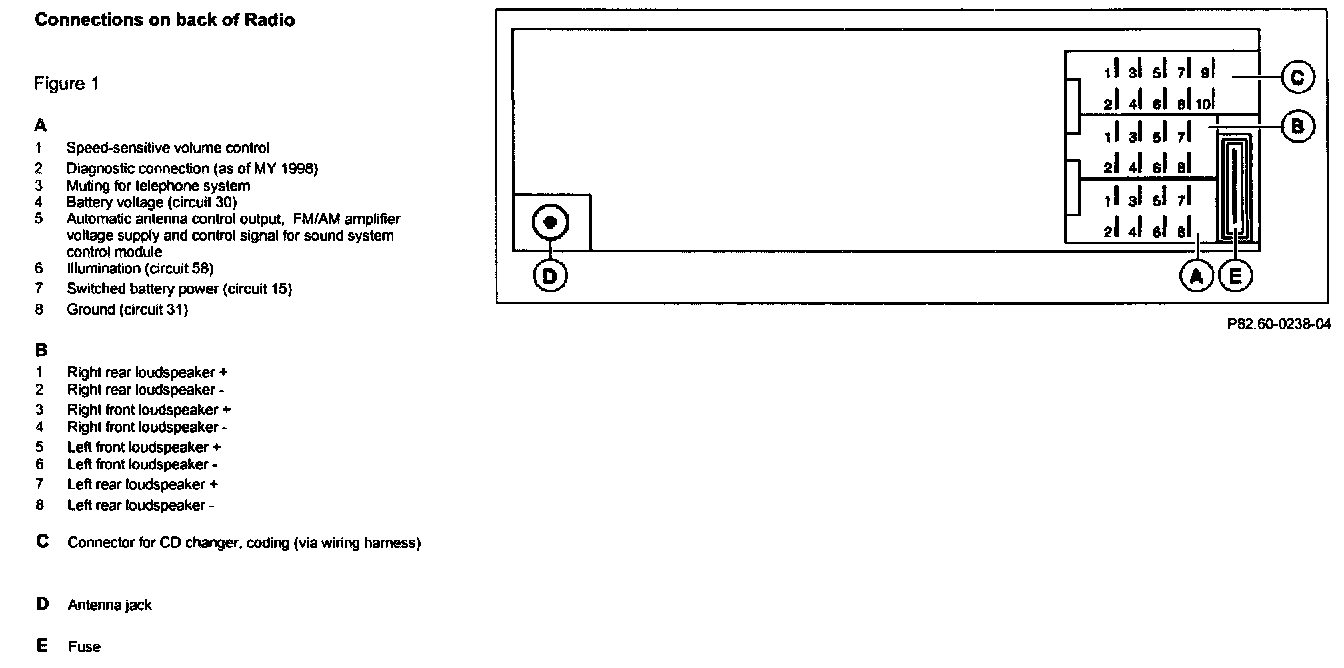

Figure 1



Figure 1:
