AR83.10-P-4717R Remove/Install Defroster Nozzles For Side Window



AR83.10-P-4717R Remove/Install Defroster Nozzles For Side Window

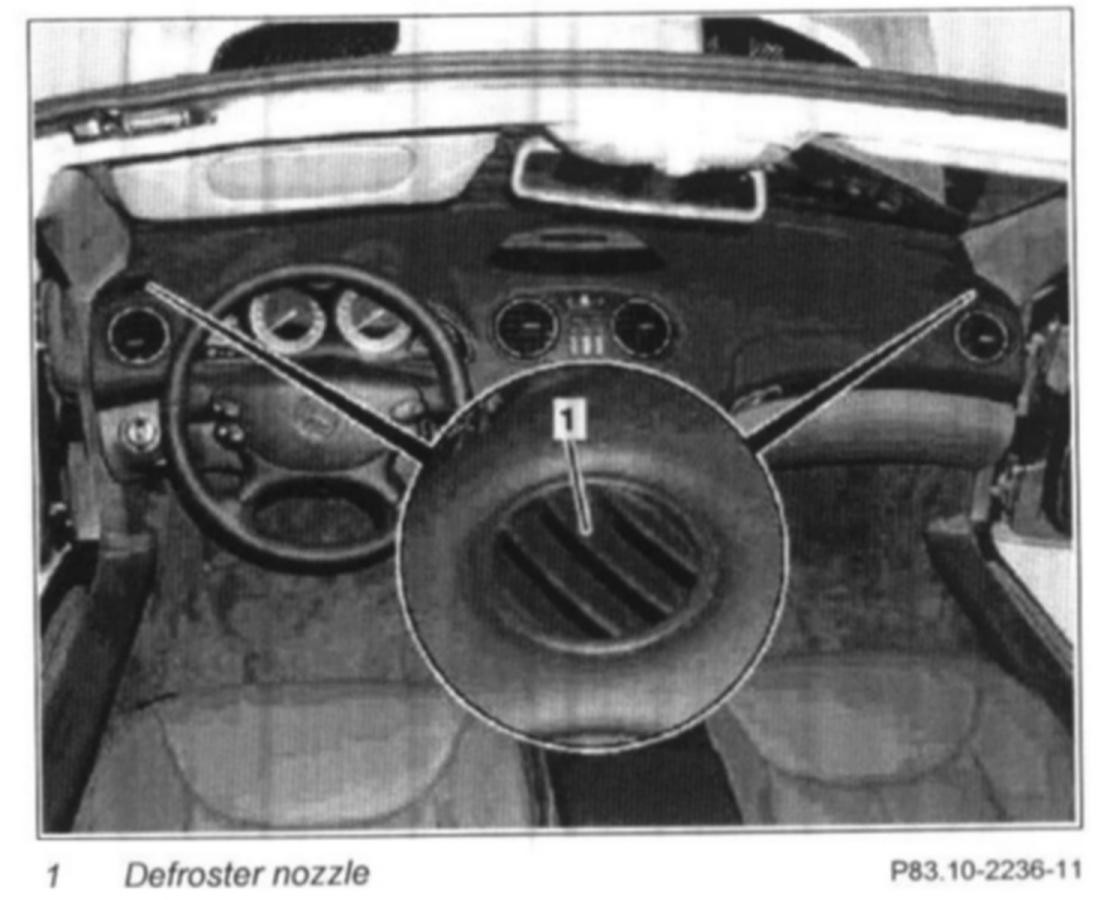

1 Unclip defroster nozzle (1) out of the instrument panel and remove

NOTE: Installation: Observe installation position.

- See "Special Tools" given below.

2 Install in the reverse order.

Special Tools

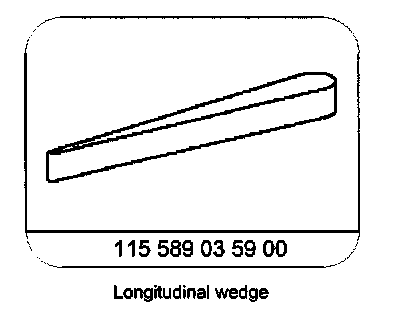

Longitudinal Wedge, P/N# 115 589 03 59 00:
