Seat Bottom Frame: Testing and Inspection



AR91.10-P-3335R Check Seat Frame

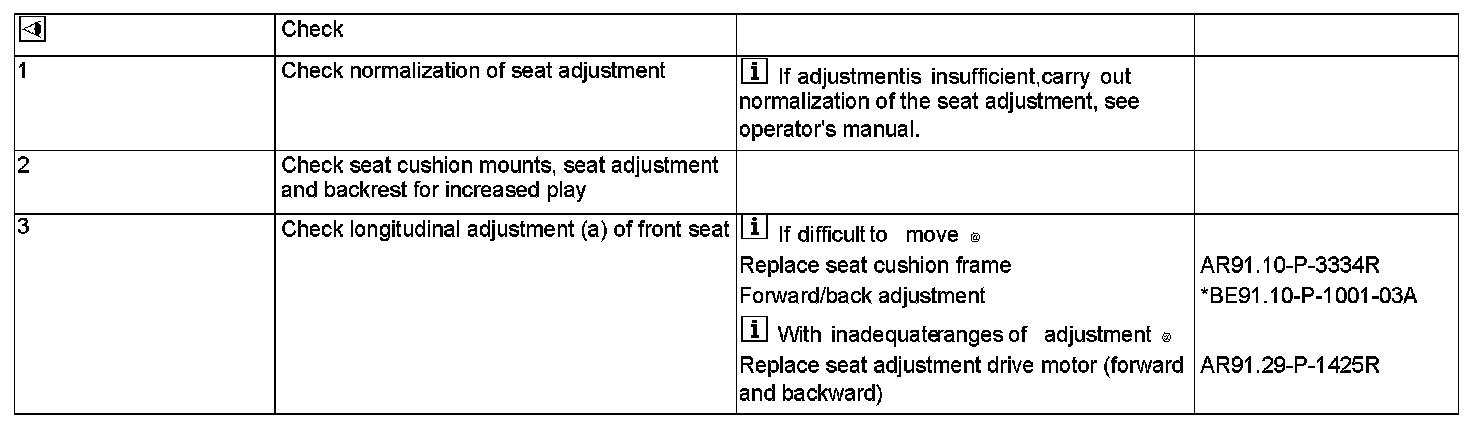

Part 1:

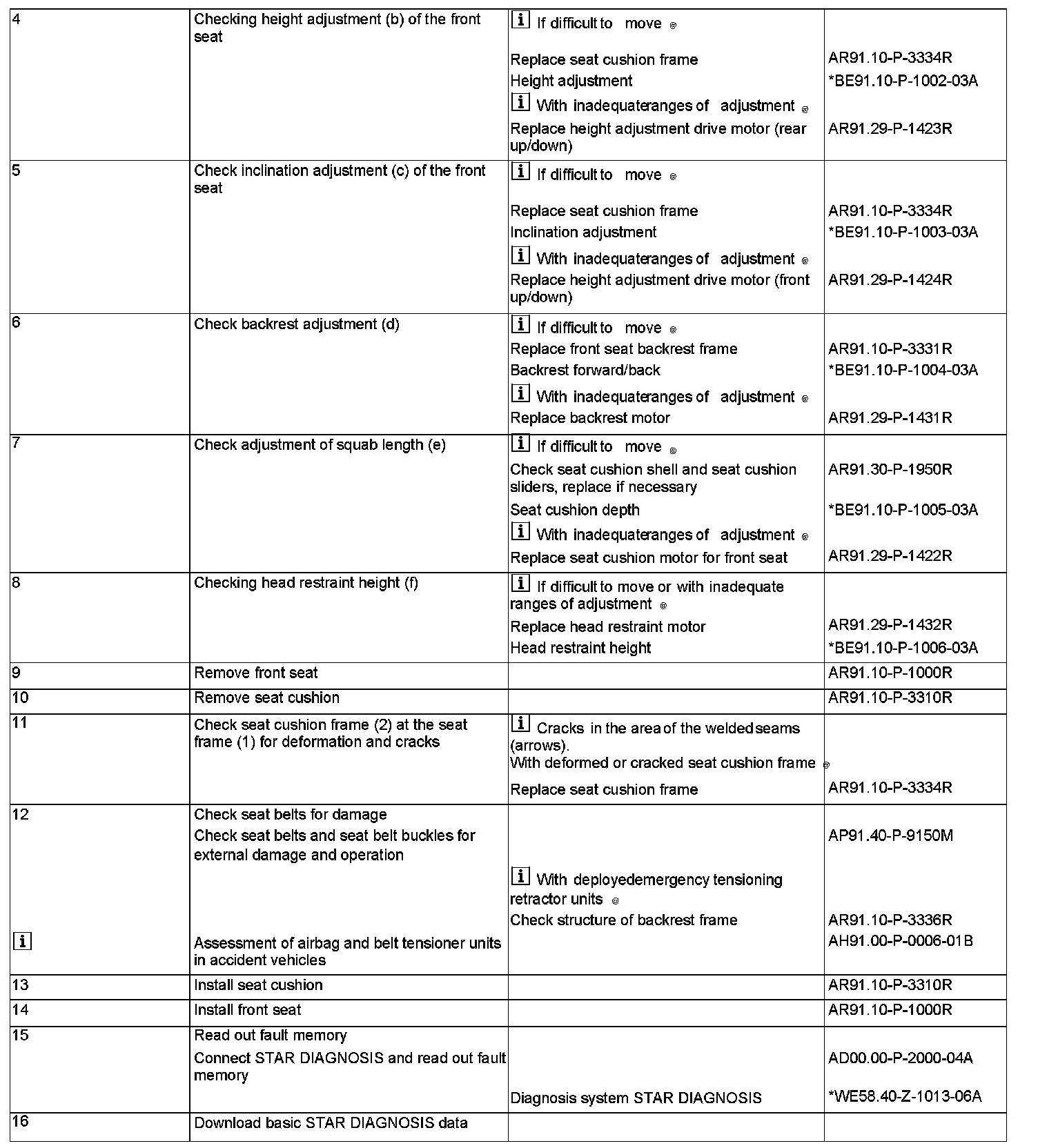

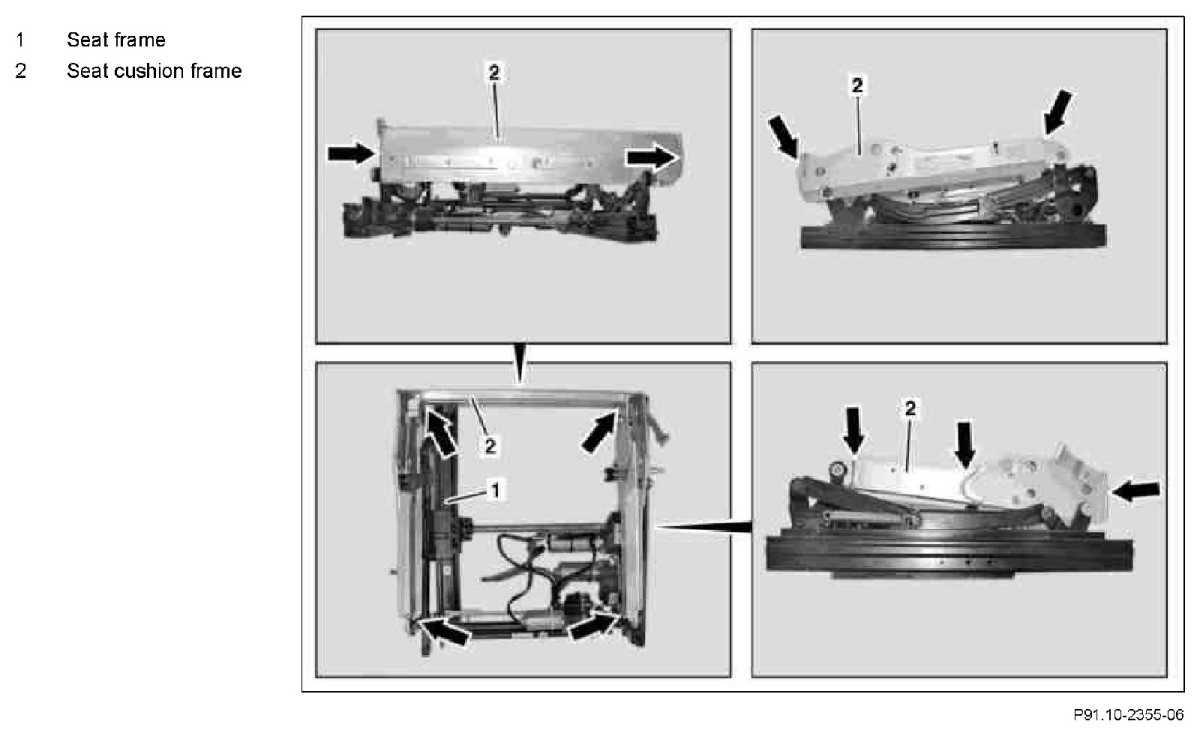

Part 2:

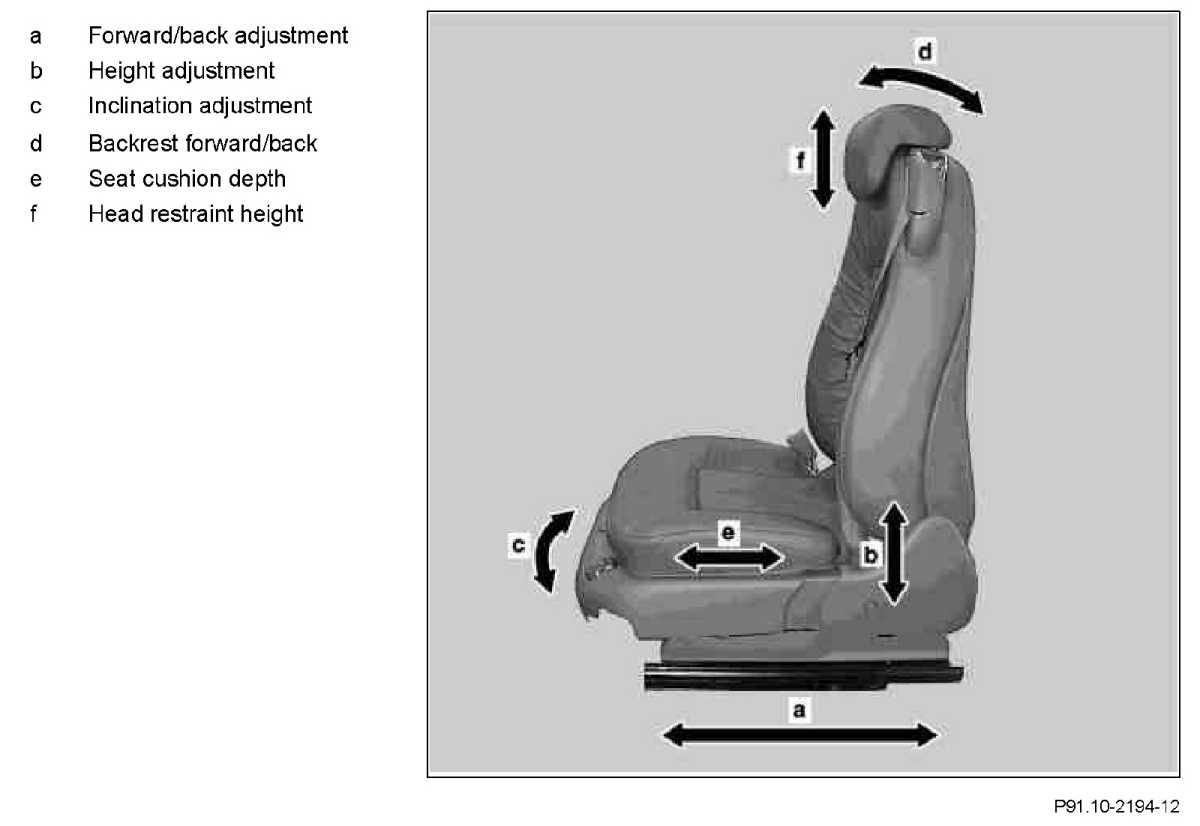

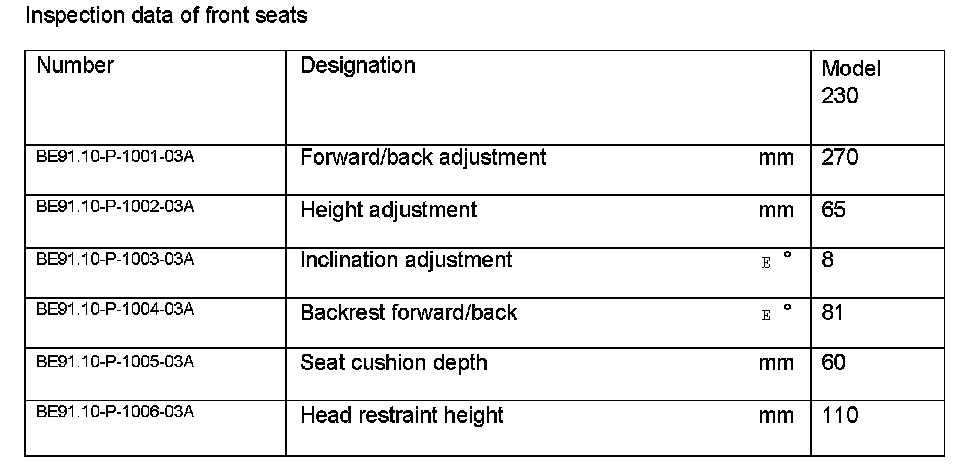

Inspection Data Of Front Seats:
