Air Injection Pump: Service and Repair

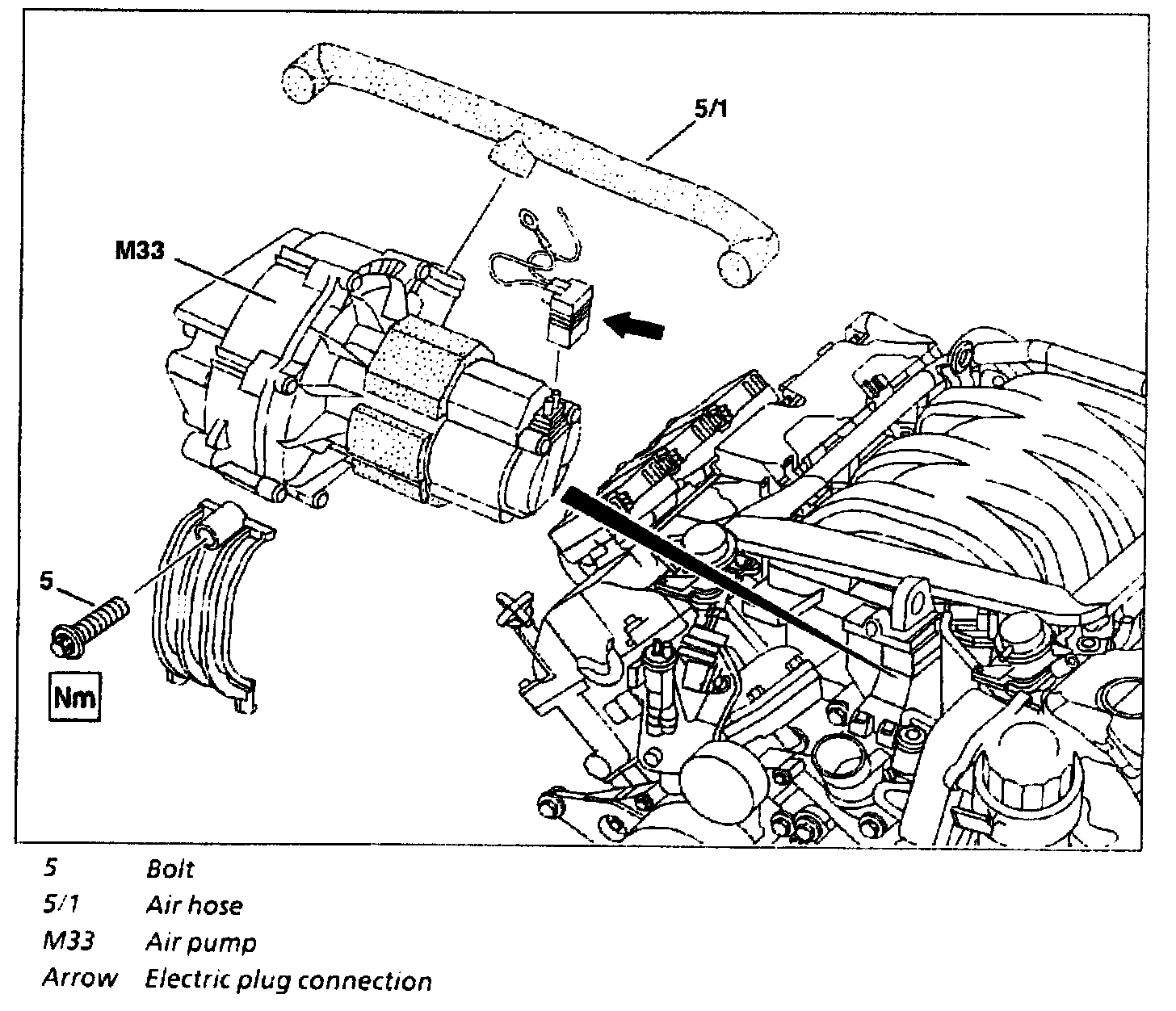

Component Identification

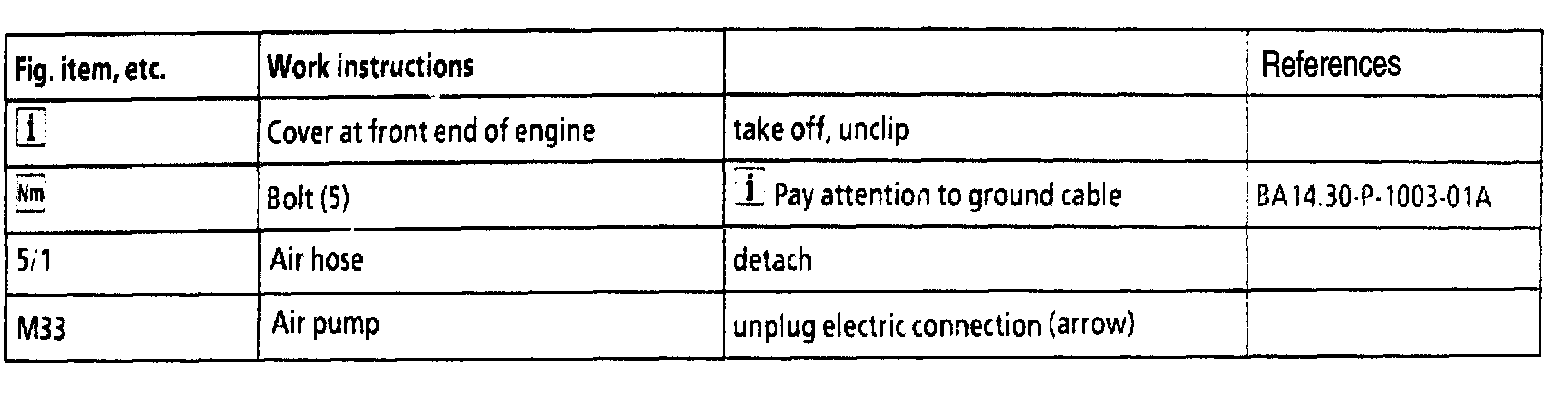

Work instructions

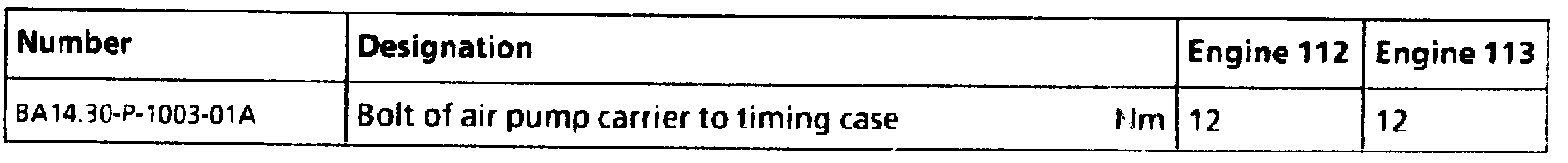

References (BA), Air pump
