AR72.10-P-1905MBA Remove/Install Sealing For Crank Window on Front Door



AR72.10-P-1905MBA Remove/Install Sealing For Crank Window on Front Door
- Inner sealing
- with CODE (Z07) Top protection

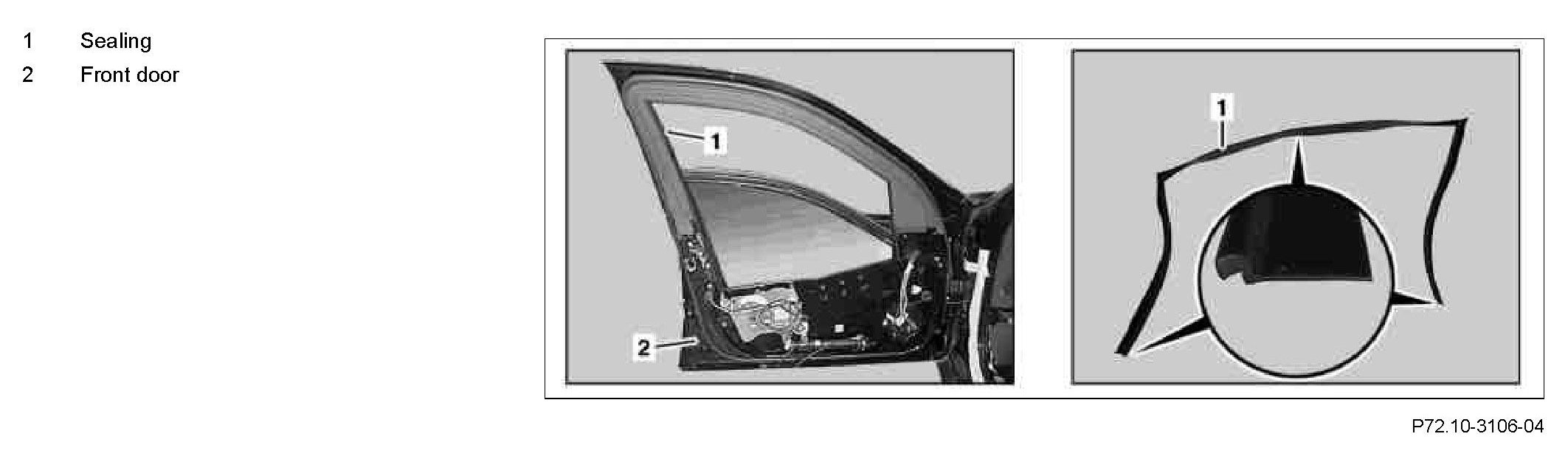

Component Identification:

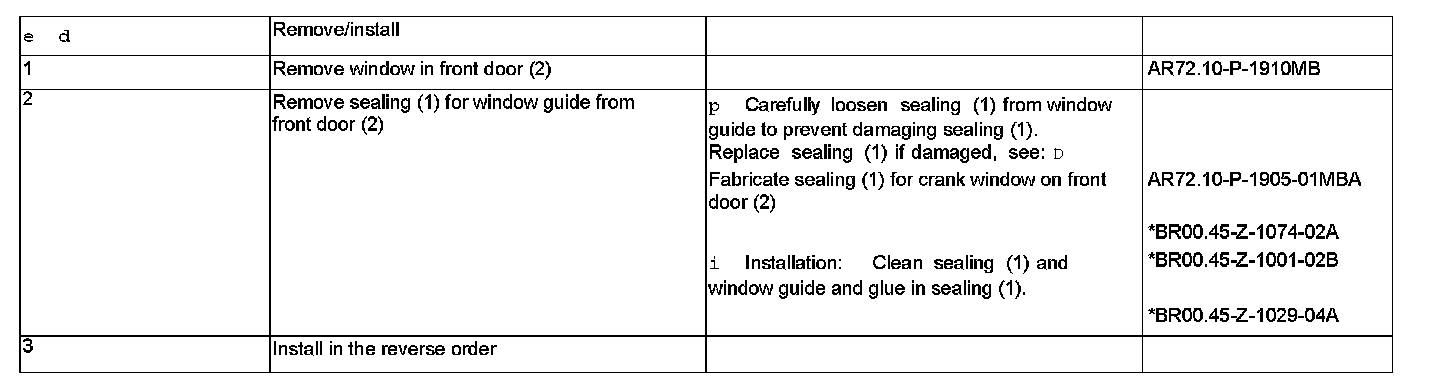

Steps 1 - 3:

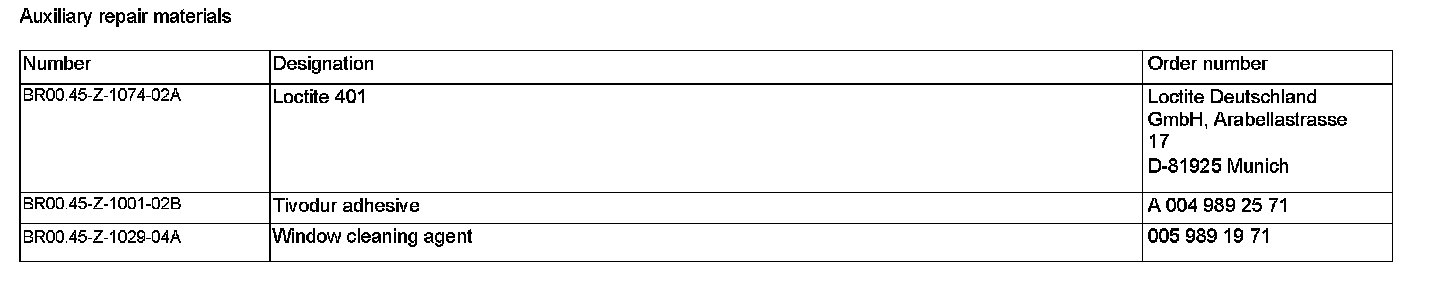

Auxiliary Repair Materials:
