AR01.00-P-1300-03HA Firing Order
AR01.00-P-1300-03HA Firing Order
AR01.00-P-1300-03HA
Firing order

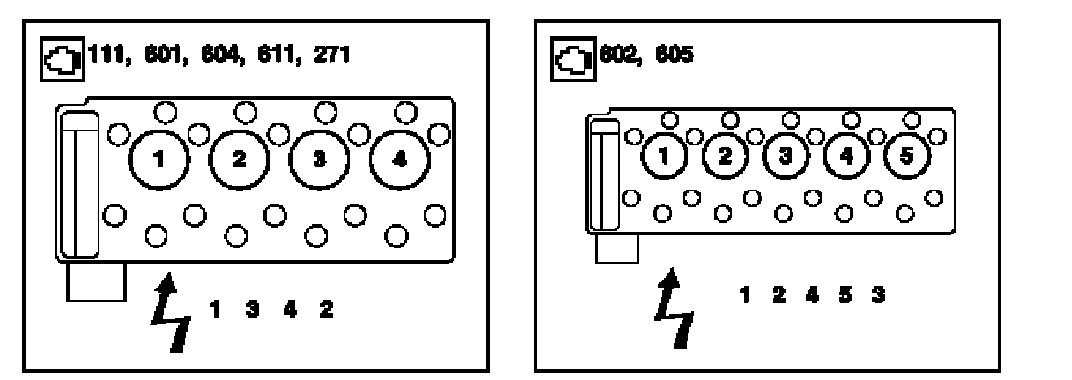

Firing order:

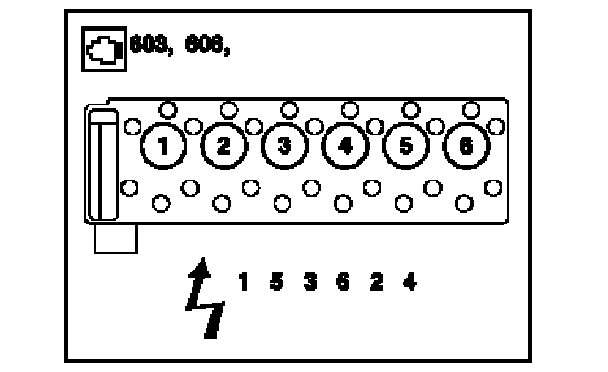

Firing order:

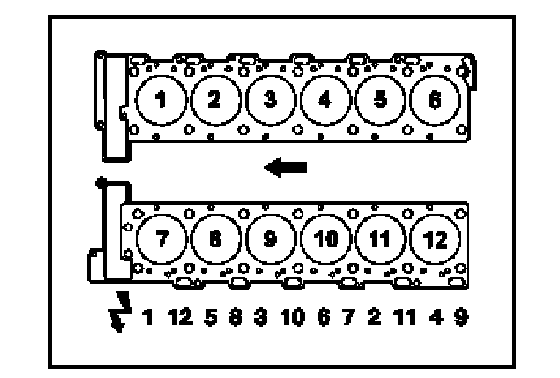

Firing order:

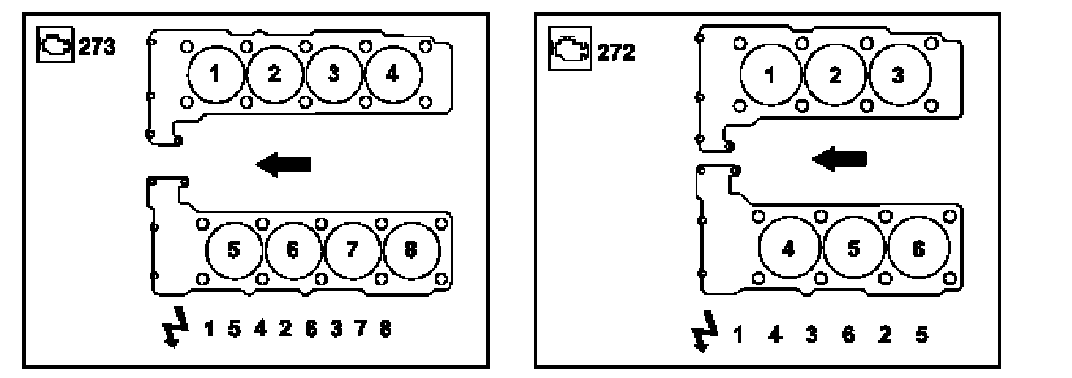

Firing order:
Firing order - Engine 137, 275, 285:
