Air Diverter Valve: Locations

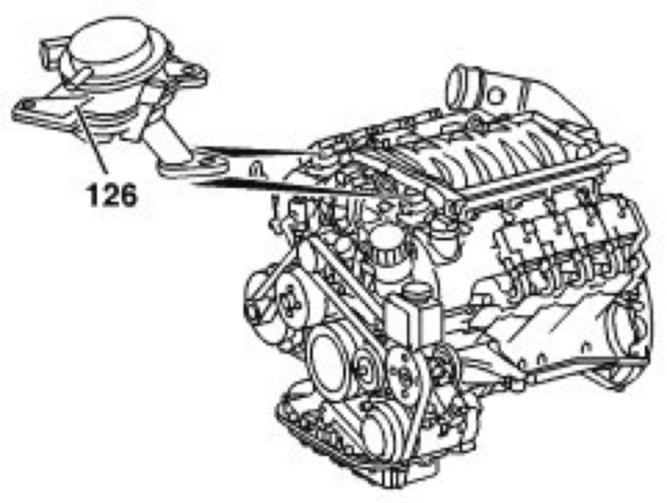

Air Shutoff Valve, Position

126 Air shutoff valve (one combination valve for each cylinder head with integrated check valve)
