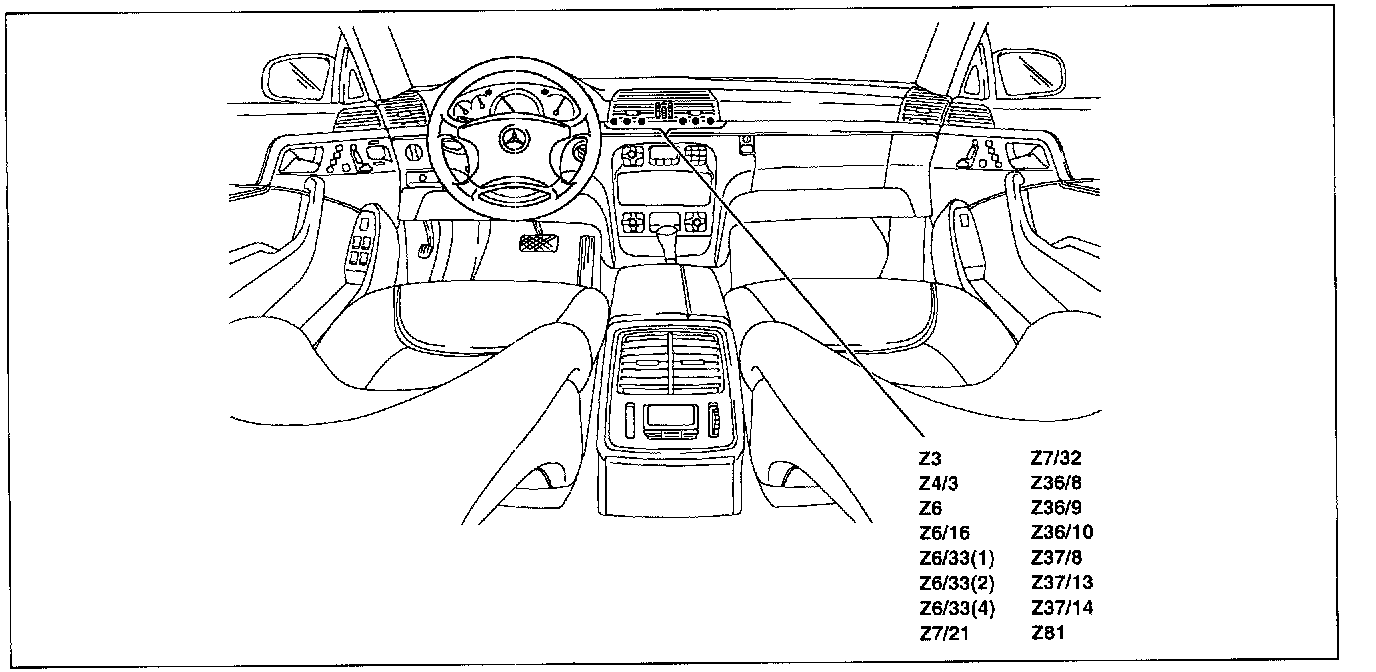

B3.3 Cockpit

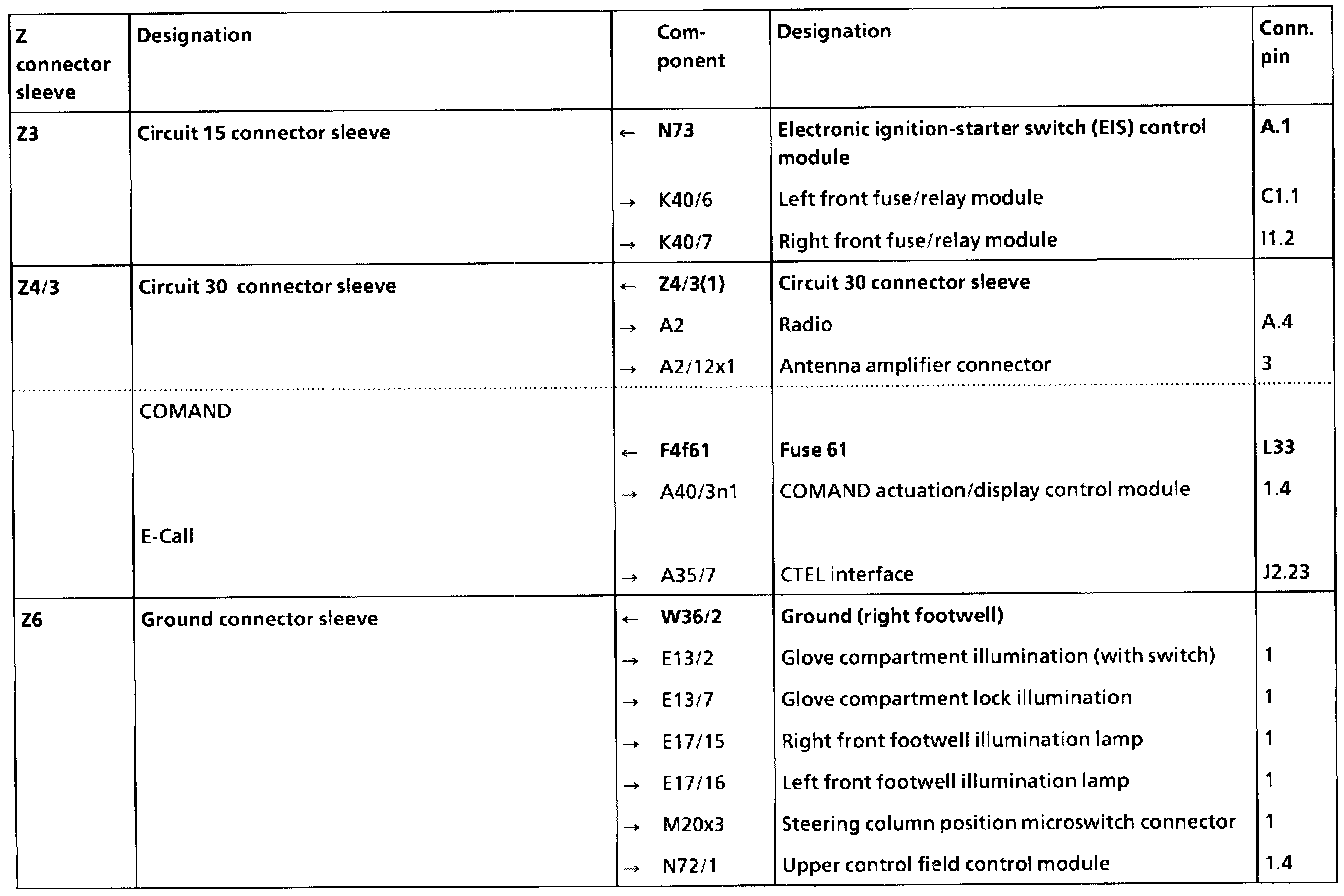

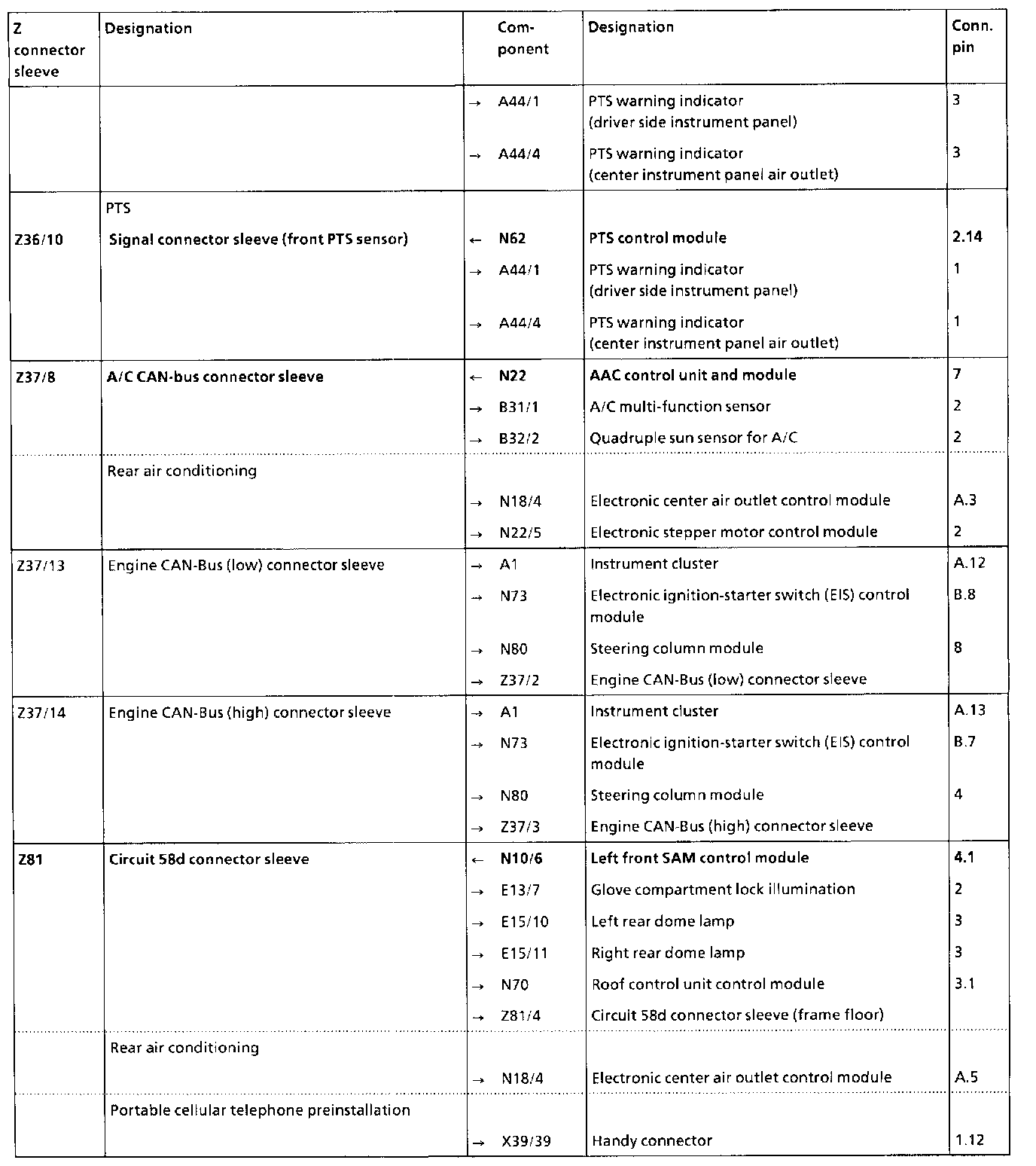

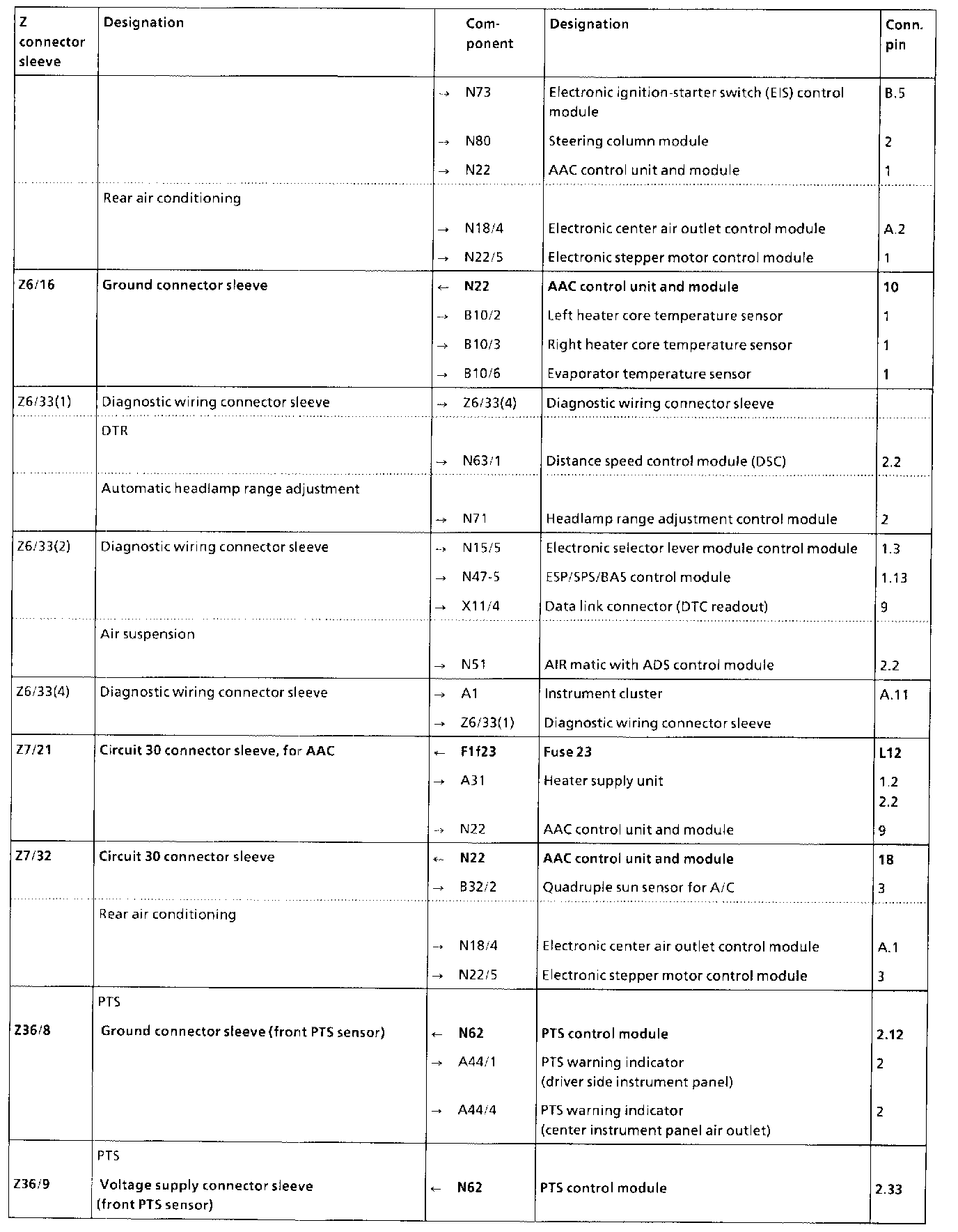

Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - cockpit







Connector ID
