AR05.30-P-3731AV Check/Remove/Install Valve Guides
AR05.30-P-3731AV Check/Remove/Install Valve Guides

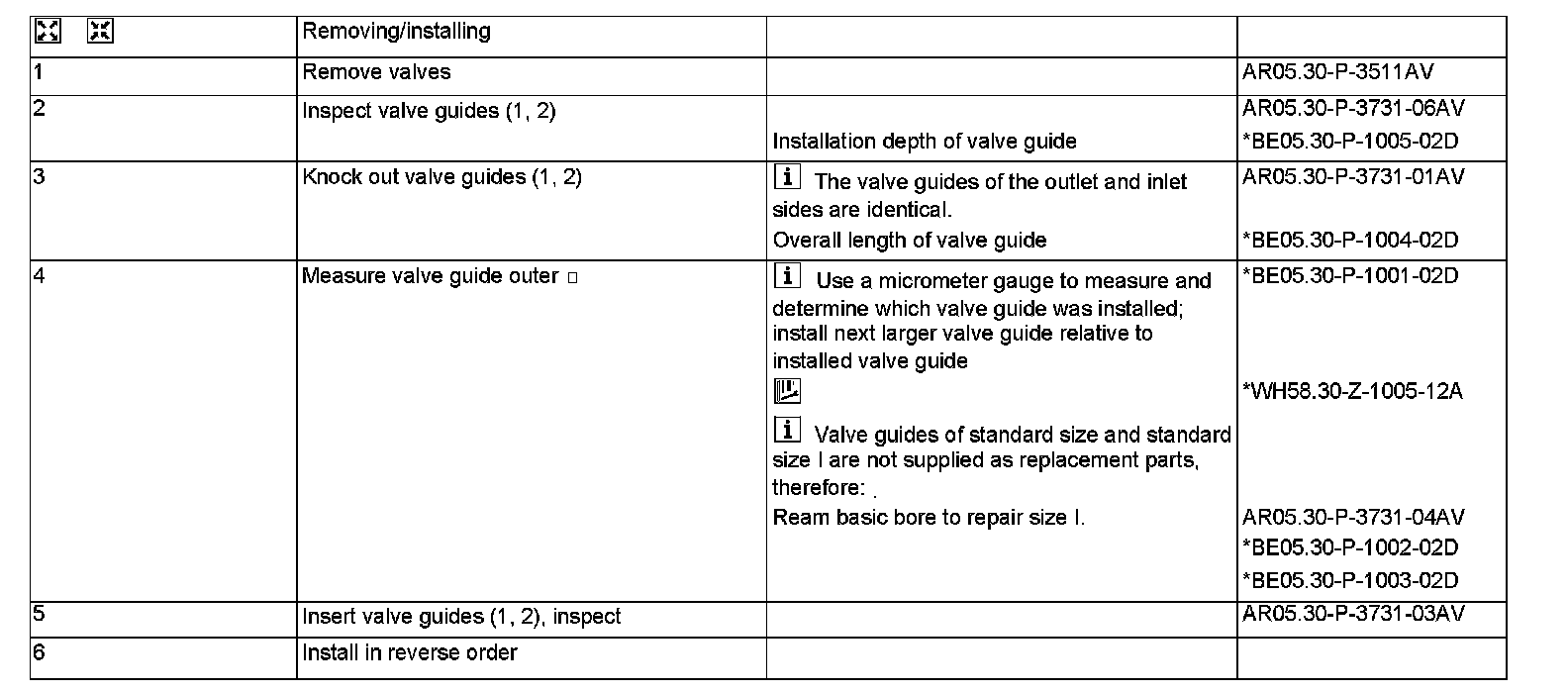

Checking, removing and installing
valve guides

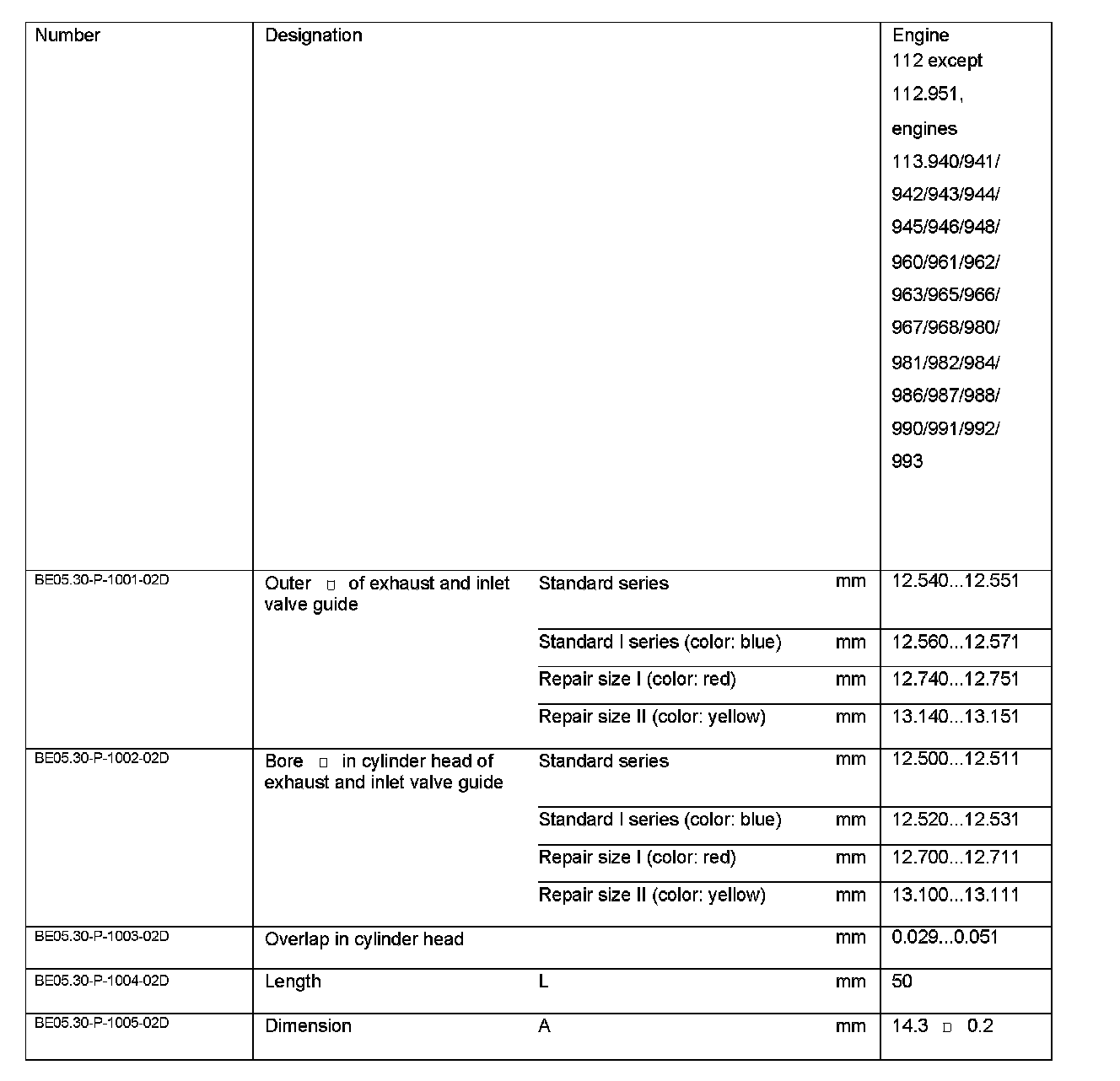

Inspection and setting data of valve guides:
